9
9-5
25/30 2006

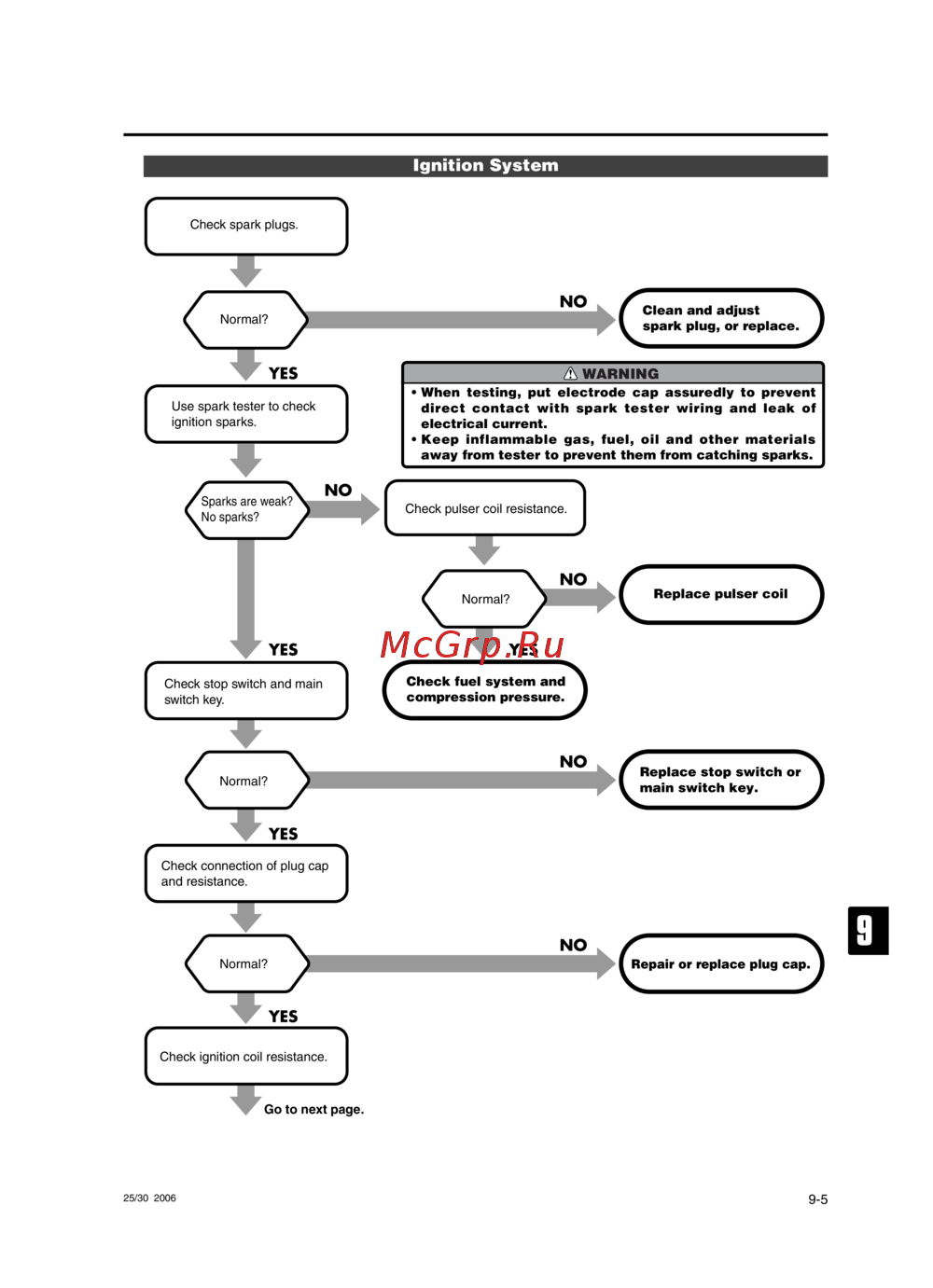

Check spark plugs.
Check pulser coil resistance.
Use spark tester to check
ignition sparks.
Normal?
Normal?
Sparks are weak?
No sparks?
Check connection of plug cap
and resistance.
Normal?
Check stop switch and main
switch key.
Check fuel system and
compression pressure.
Normal?
NO
NO
NO
NO
NO
YES
YES
YES
Check ignition coil resistance.
YESYES
Replace pulser coil
Clean and adjust
spark plug, or replace.
Replace stop switch or
main switch key.
Repair or replace plug cap.
Go to next page.
WARNING
• When testing, put electrode cap assuredly to prevent
direct contact with spark tester wiring and leak of
electrical current.
• Keep inflammable gas, fuel, oil and other materials
away from tester to prevent them from catching sparks.
Ignition System
