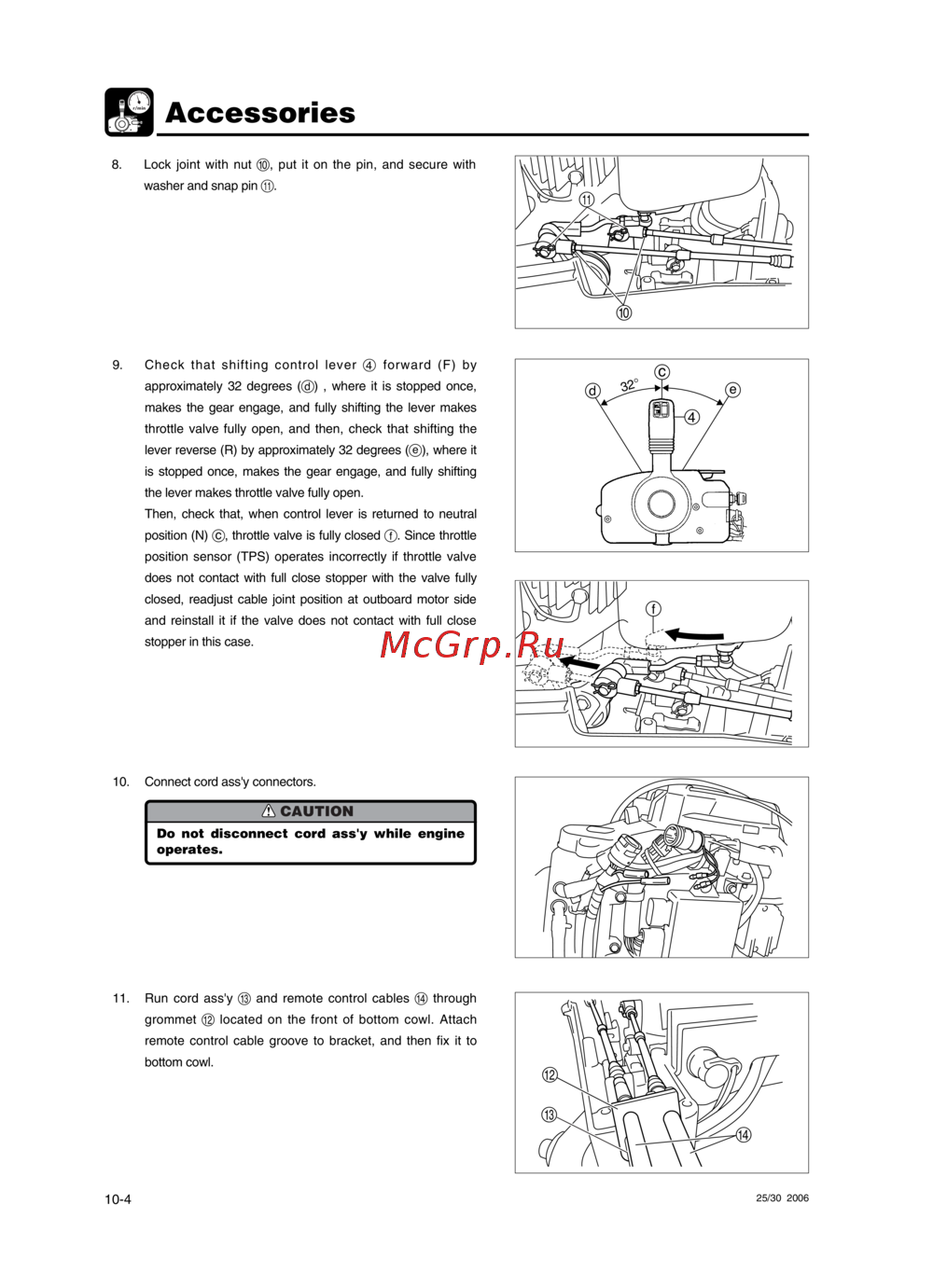

10-4
Accessories
r/min
25/30 2006
10. Connect cord ass'y connectors.
CAUTION
Do not disconnect cord ass'y while engine
operates.
11. Run cord ass'y e and remote control cables r through
grommet w located on the front of bottom cowl. Attach
remote control cable groove to bracket, and then fix it to
bottom cowl.
w
r
e
9. Check that shifting control lever 4 forward (F) by
approximately 32 degrees (d) , where it is stopped once,
makes the gear engage, and fully shifting the lever makes
throttle valve fully open, and then, check that shifting the
lever reverse (R) by approximately 32 degrees (e), where it
is stopped once, makes the gear engage, and fully shifting
the lever makes throttle valve fully open.
Then, check that, when control lever is returned to neutral
position (N) c, throttle valve is fully closed f. Since throttle
position sensor (TPS) operates incorrectly if throttle valve
does not contact with full close stopper with the valve fully
closed, readjust cable joint position at outboard motor side
and reinstall it if the valve does not contact with full close
stopper in this case.
d
c
e
4
32°
f
0
q
8. Lock joint with nut 0, put it on the pin, and secure with
washer and snap pin q.
MFS25_30_ch10.qxd 06.3.9 5:04 PM ページ 4
