6-28
Lower Unit
25/30 2006
7
8
a
b
GREASE
OBMOBM
OBM
4. Put pump case liner 7 in the pump case (upper) 8, and
apply grease to interior of pump case liner 7.
Bring pump case liner projection a pump case
(upper) groove b.
1
2
GREASE
OBMOBM
OBM

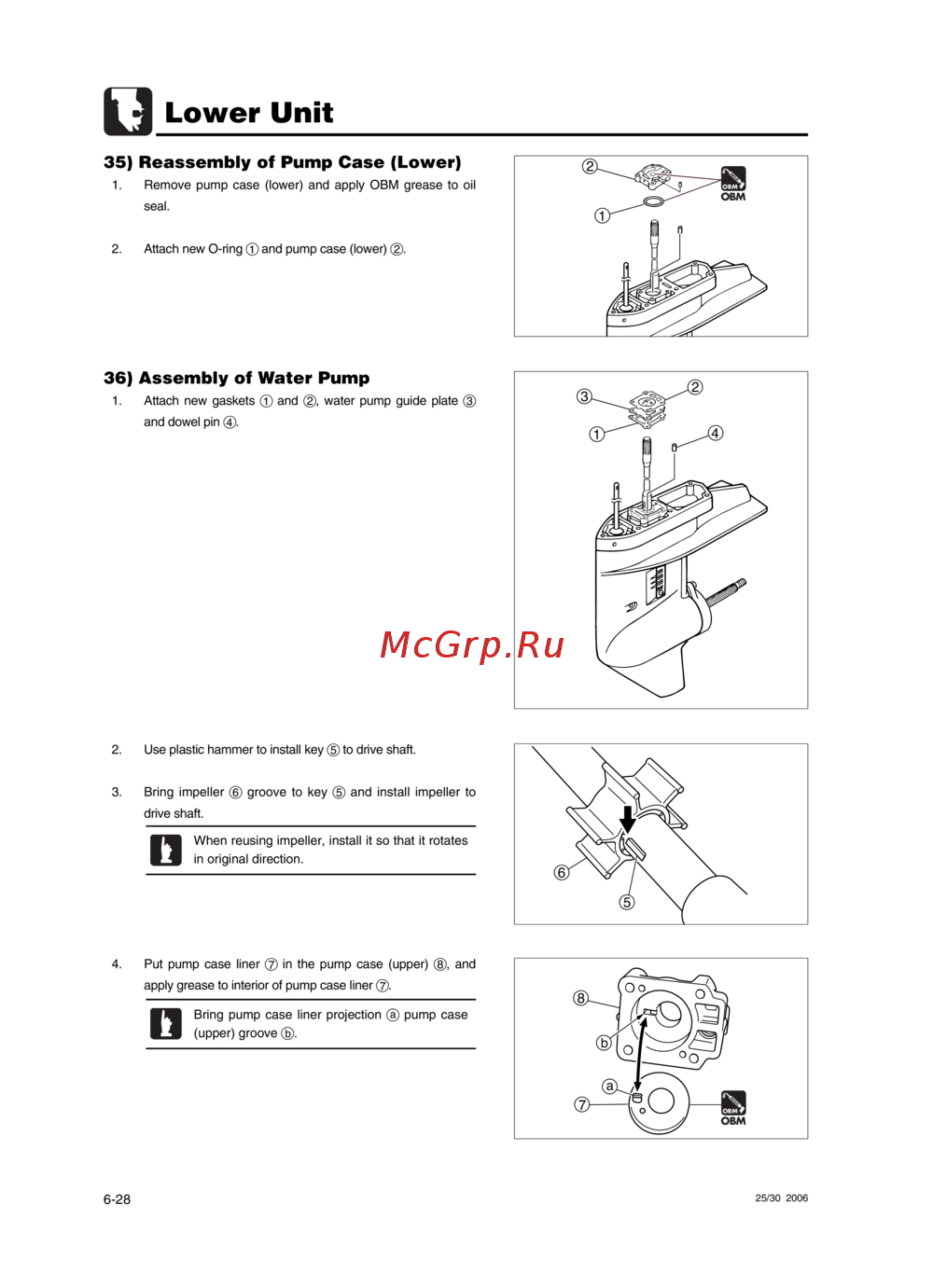

35) Reassembly of Pump Case (Lower)
1. Remove pump case (lower) and apply OBM grease to oil
seal.
2. Attach new O-ring 1 and pump case (lower) 2.
1
3
2
4
6
5
36) Assembly of Water Pump
1. Attach new gaskets 1 and 2, water pump guide plate 3
and dowel pin 4.
2. Use plastic hammer to install key 5 to drive shaft.
3. Bring impeller 6 groove to key 5 and install impeller to
drive shaft.
When reusing impeller, install it so that it rotates
in original direction.
