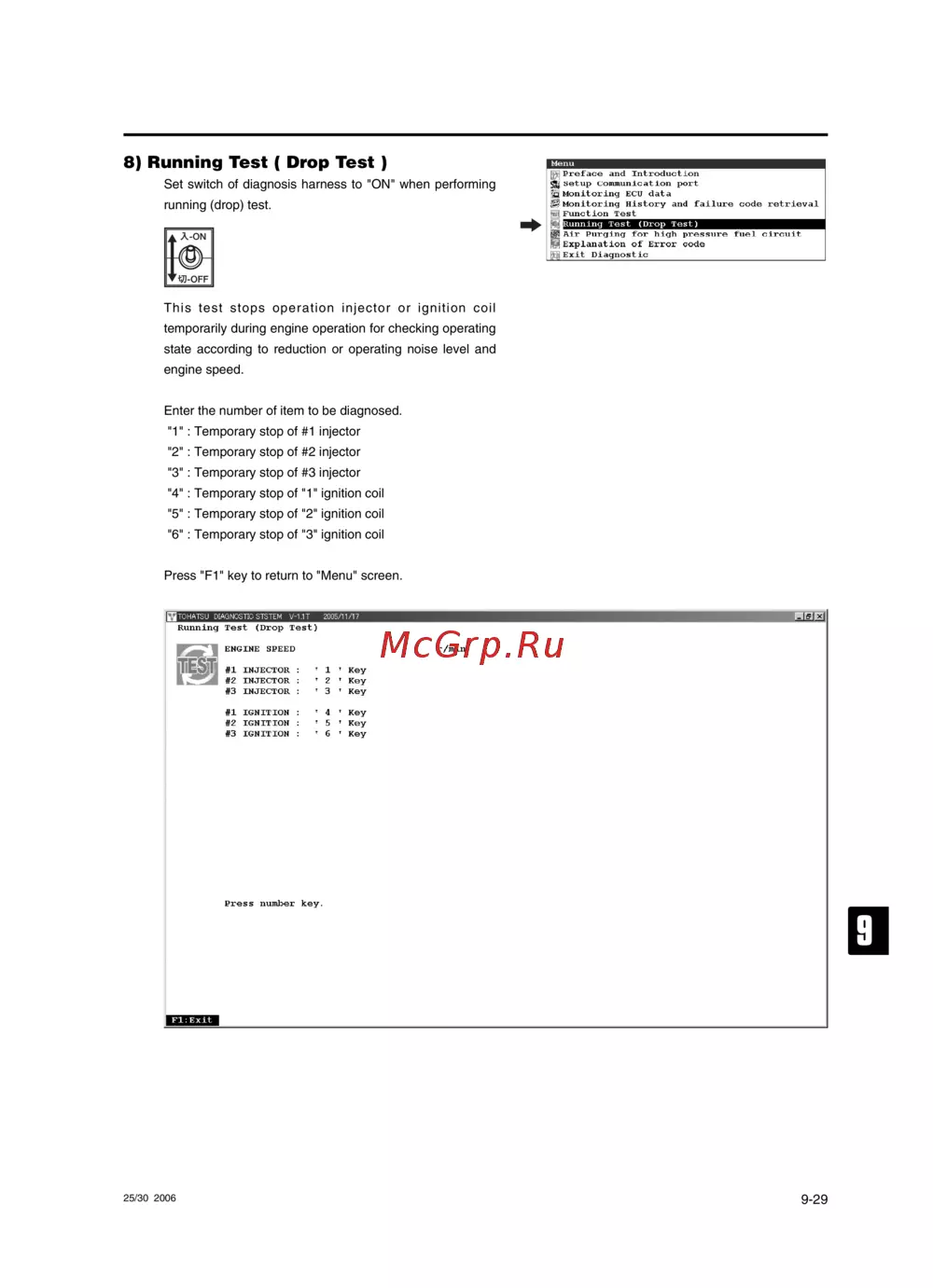

8) Running Test ( Drop Test )
Set switch of diagnosis harness to "ON" when performing
running (drop) test.
This test stops operation injector or ignition coil
temporarily during engine operation for checking operating
state according to reduction or operating noise level and
engine speed.
Enter the number of item to be diagnosed.
"1" : Temporary stop of #1 injector
"2" : Temporary stop of #2 injector
"3" : Temporary stop of #3 injector
"4" : Temporary stop of "1" ignition coil
"5" : Temporary stop of "2" ignition coil
"6" : Temporary stop of "3" ignition coil
Press "F1" key to return to "Menu" screen.
MFS25_30_ch09.qxd 06.3.9 5:02 PM ページ 29
