Tohatsu MFS 30 [275/319] Power unit
![Tohatsu MFS 30 [275/319] Power unit](/views2/1240939/page275/bg113.png)
9
9-3
25/30 2006
YES
YES
YES
YES

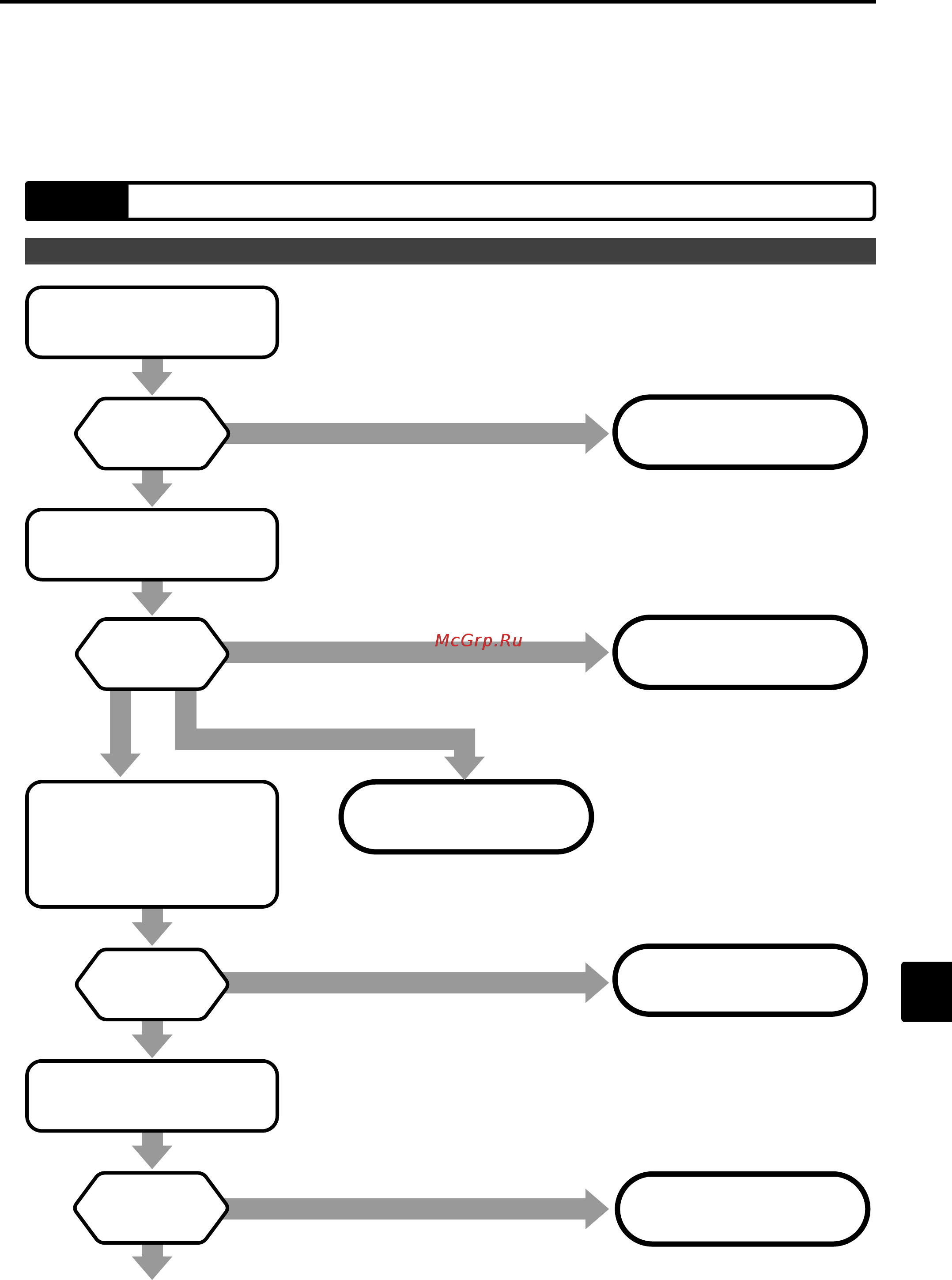

(Electric Start Model)
Shift into neutral (N).
Check ignition system
and/or fuel system.
Repair or replace
defective parts.
Check operations of starter
motor or recoil starter.
Neutral (N)?
Operates?
Check that gear shift is
in neutral (N).
Normal?
Check operations of starter
solenoid.
NO
NO
NO
Check battery cables for defective
contact, earth lead wire securing
bolt for looseness or disconnection,
starter motor positive terminal for
break, and fuse if it is blown.
Replace starter solenoid.
Normal?
NO
YES
(Recoil start model)
Go to next page.
Check recoil starter or
starter lock cable.
Before working on the engine, check that full, rigging and engine installation are normal, and then
battery is fully charged. For mechanical troubleshooting, refer to relevant troubleshooting section in
this chapter. For checking and servicing outboard motor, refer to service procedures described in
this manual to perform the works safely.
2.Power Unit
Starting System
State 1 Engine will not start or is a little hard to start.
