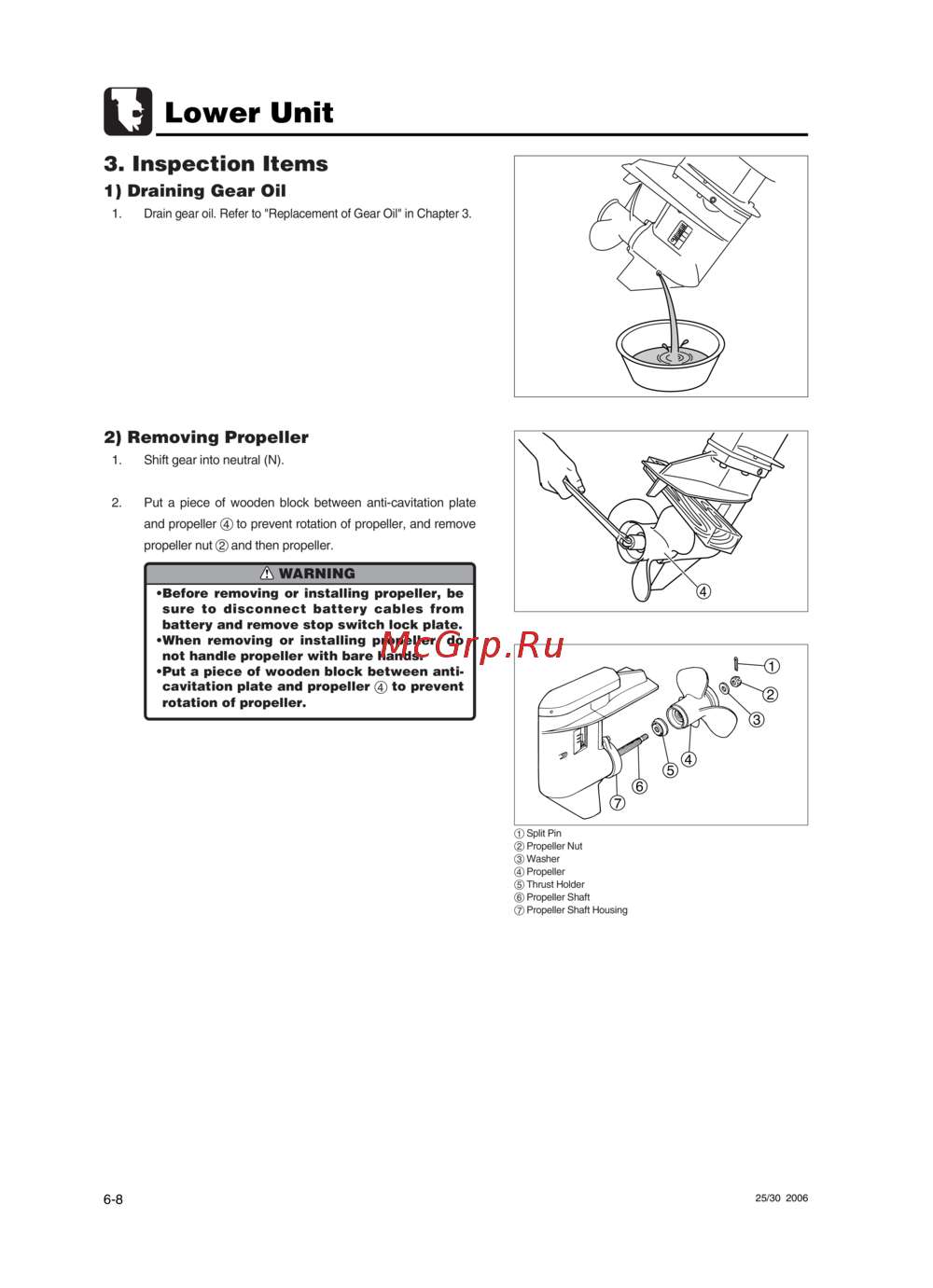

![Tohatsu MFS 30 [186/319] Removing propeller](/views2/1240939/page186/bgba.png)
6-8
Lower Unit
25/30 2006
4
WARNING
•Before removing or installing propeller, be
sure to disconnect battery cables from
battery and remove stop switch lock plate.
•When removing or installing propeller, do
not handle propeller with bare hands.
•Put a piece of wooden block between anti-
cavitation plate and propeller
4
to prevent
rotation of propeller.
3. Inspection Items
1) Draining Gear Oil
1.
Drain gear oil. Refer to "Replacement of Gear Oil" in Chapter 3.
2) Removing Propeller
1. Shift gear into neutral (N).
2. Put a piece of wooden block between anti-cavitation plate
and propeller 4 to prevent rotation of propeller, and remove
propeller nut 2 and then propeller.
1 Split Pin
2 Propeller Nut
3 Washer
4 Propeller
5 Thrust Holder
6 Propeller Shaft
7 Propeller Shaft Housing
1
2
3
4
5
6
7
