Tohatsu MFS 30 [217/319] N m 8 lb ft 1 kgf m
![Tohatsu MFS 30 [217/319] N m 8 lb ft 1 kgf m](/views2/1240939/page217/bgd9.png)
7-7
25/30 2006
7
10
13
4
11-1
11
18
19
15
16
17
27
21
14
29
21
21
42
21
35
41
40
39
38
37
36
28
5
30
20
23
22
21
6
11-2
31
32
12
8
2
34
33
24
26
25
26
9
13
40
29
29
28
Tr im Meter
43-7
43-1
43-2
43
Tr im Meter Kit
(43-1∼43-7)
43-7
1
43-6
43-5
23
22
21
3
7
43-3
43-4
44
43-2
17
21
11 N·m (8 lb·ft) [1.1 kgf·m]
24 N·m (17 lb·ft) [2.4 kgf·m]
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM

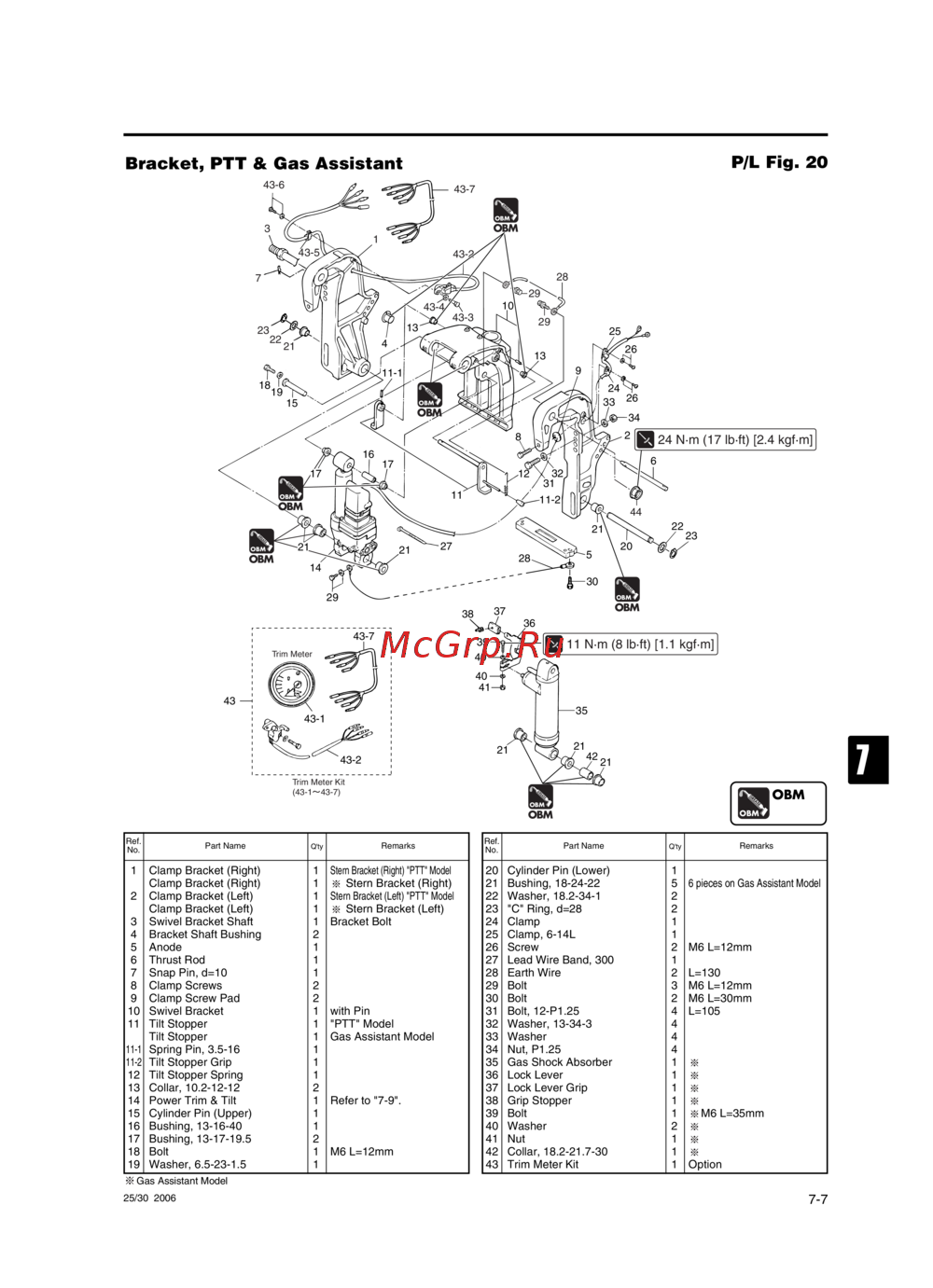

Bracket, PTT & Gas Assistant
1 Clamp Bracket (Right) 1
Stern Bracket (Right) "PTT" Model
Clamp Bracket (Right) 1 Stern Bracket (Right)
2 Clamp Bracket (Left) 1
Stern Bracket (Left) "PTT" Model
Clamp Bracket (Left) 1 Stern Bracket (Left)
3 Swivel Bracket Shaft 1 Bracket Bolt
4 Bracket Shaft Bushing 2
5 Anode 1
6 Thrust Rod 1
7 Snap Pin, d=10 1
8 Clamp Screws 2
9 Clamp Screw Pad 2
10 Swivel Bracket 1 with Pin
11 Tilt Stopper 1 "PTT" Model
Tilt Stopper 1 Gas Assistant Model
11-1
Spring Pin, 3.5-16 1
11-2
Tilt Stopper Grip 1
12 Tilt Stopper Spring 1
13 Collar, 10.2-12-12 2
14 Power Trim & Tilt 1 Refer to "7-9".
15 Cylinder Pin (Upper) 1
16 Bushing, 13-16-40 1
17 Bushing, 13-17-19.5 2
18 Bolt 1 M6 L=12mm
19 Washer, 6.5-23-1.5 1
Ref.
No.
Part Name Remarks
Q'ty
20 Cylinder Pin (Lower) 1
21 Bushing, 18-24-22 5
6 pieces on Gas Assistant Model
22 Washer, 18.2-34-1 2
23 "C" Ring, d=28 2
24 Clamp 1
25 Clamp, 6-14L 1
26 Screw 2 M6 L=12mm
27 Lead Wire Band, 300 1
28 Earth Wire 2 L=130
29 Bolt 3 M6 L=12mm
30 Bolt 2 M6 L=30mm
31 Bolt, 12-P1.25 4 L=105
32 Washer, 13-34-3 4
33 Washer 4
34 Nut, P1.25 4
35 Gas Shock Absorber 1
36 Lock Lever 1
37 Lock Lever Grip 1
38 Grip Stopper 1
39 Bolt 1 M6 L=35mm
40 Washer 2
41 Nut 1
42 Collar, 18.2-21.7-30 1
43 Trim Meter Kit 1 Option
Ref.
No.
Part Name Remarks
Q'ty
Gas Assistant Model
P/L Fig. 20
GREASE
OBMOBM
OBM
MFS25_30_ch07.qxd 06.3.9 4:57 PM ページ 7
