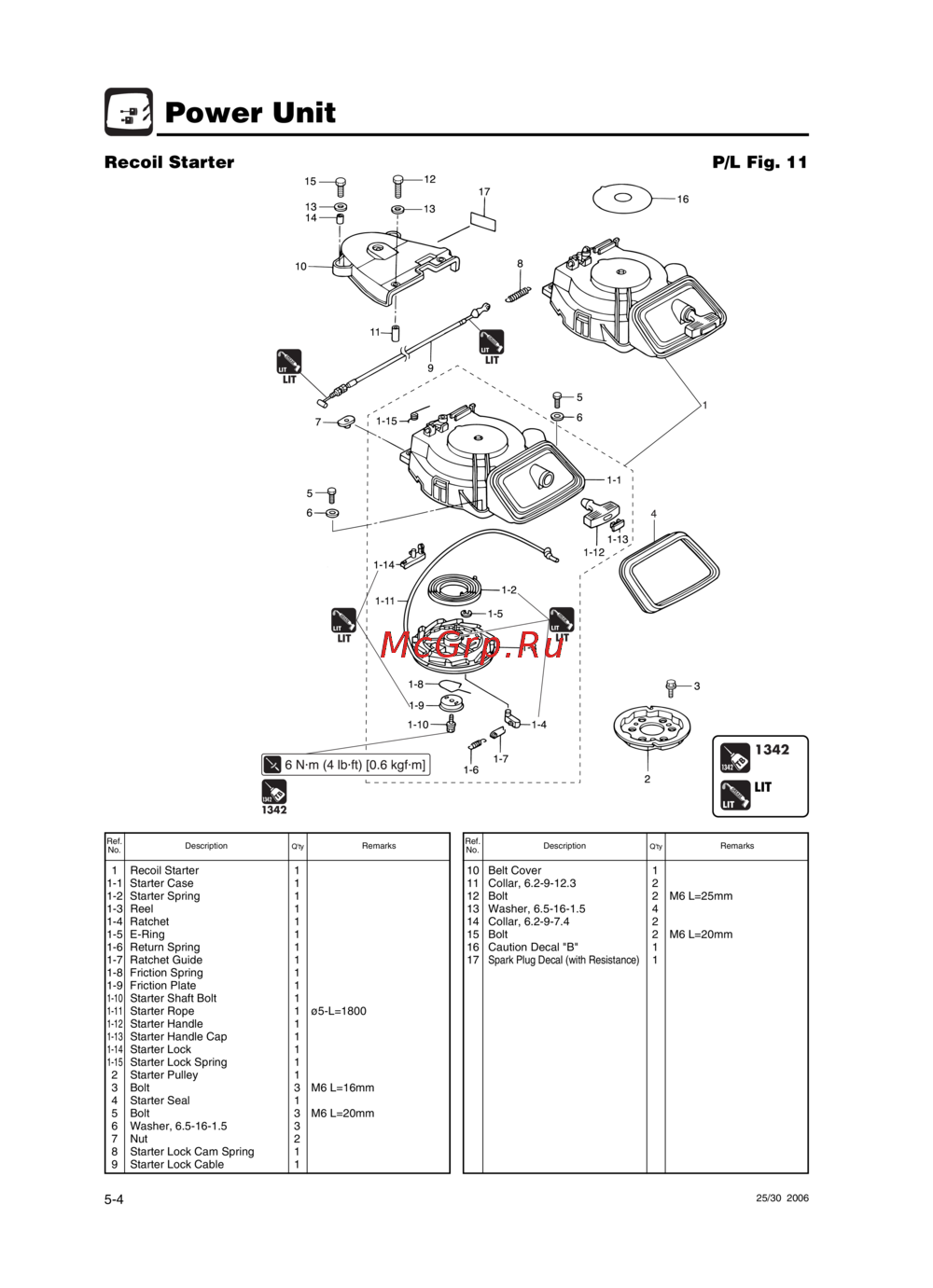

Tohatsu MFS 30 [120/319] Power unit
![Tohatsu MFS 30 [120/319] Power unit](/views2/1240939/page120/bg78.png)
5-4
Power Unit
25/30 2006
Recoil Starter
TB
13421342
1342
LIT
GREASE
LIT
LIT
GREASE
LIT
LIT
GREASE
LIT
LIT
GREASE
LIT
1 Recoil Starter 1
1-1 Starter Case 1
1-2 Starter Spring 1
1-3 Reel 1
1-4 Ratchet 1
1-5 E-Ring 1
1-6 Return Spring 1
1-7 Ratchet Guide 1
1-8 Friction Spring 1
1-9 Friction Plate 1
1-10
Starter Shaft Bolt 1
1-11
Starter Rope 1 ø5-L=1800
1-12
Starter Handle 1
1-13
Starter Handle Cap 1
1-14
Starter Lock 1
1-15
Starter Lock Spring 1
2 Starter Pulley 1
3 Bolt 3 M6 L=16mm
4 Starter Seal 1
5 Bolt 3 M6 L=20mm
6 Washer, 6.5-16-1.5 3
7 Nut 2
8 Starter Lock Cam Spring 1
9 Starter Lock Cable 1
Ref.
No.
Description Remarks
Q'ty
10 Belt Cover 1
11 Collar, 6.2-9-12.3 2
12 Bolt 2 M6 L=25mm
13 Washer, 6.5-16-1.5 4
14 Collar, 6.2-9-7.4 2
15 Bolt 2 M6 L=20mm
16 Caution Decal "B" 1
17
Spark Plug Decal (with Resistance)
1
Ref.
No.
Description Remarks
Q'ty
P/L Fig. 11
LIT
GREASE
LIT
TB
13421342
1342
