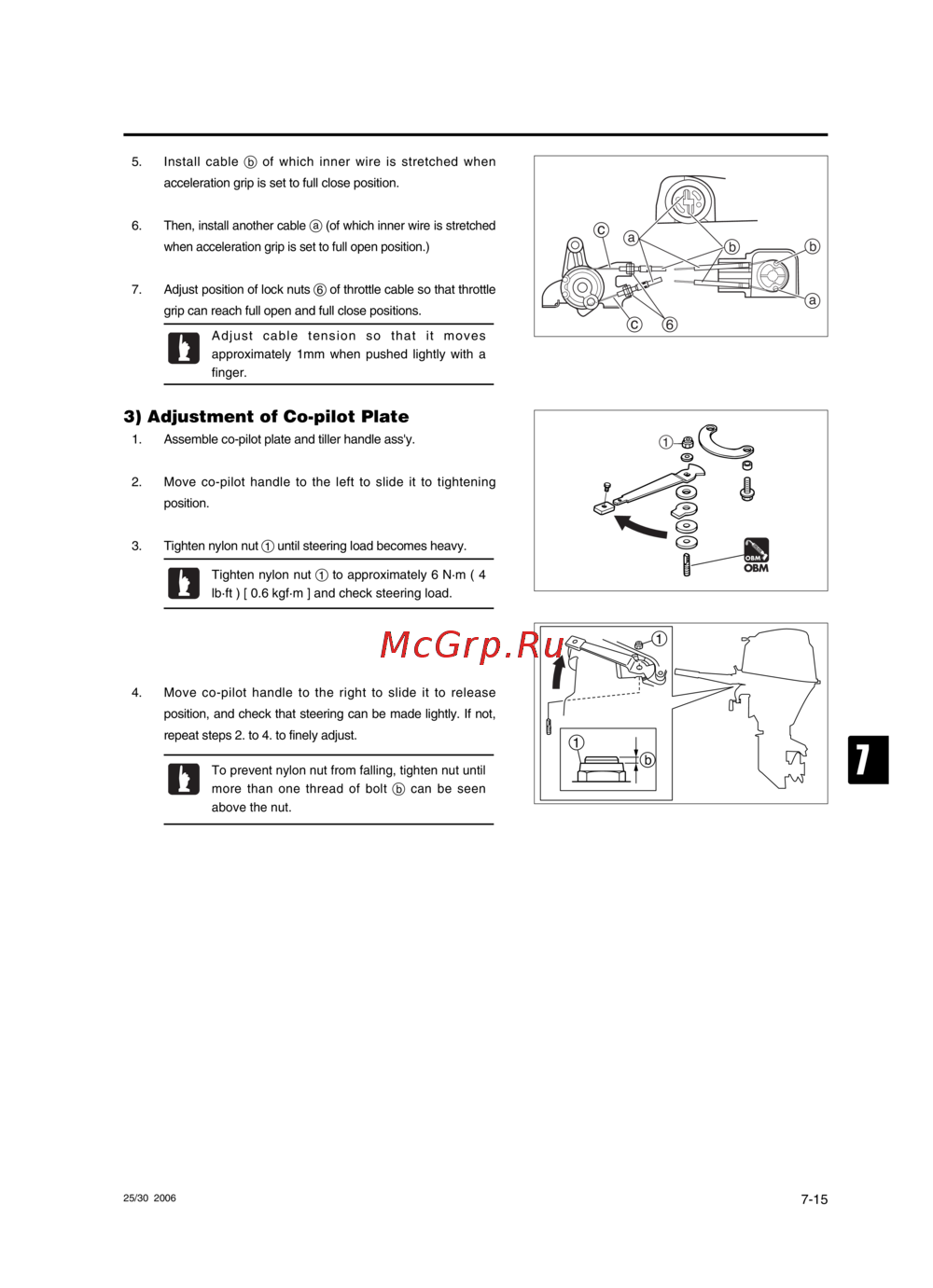

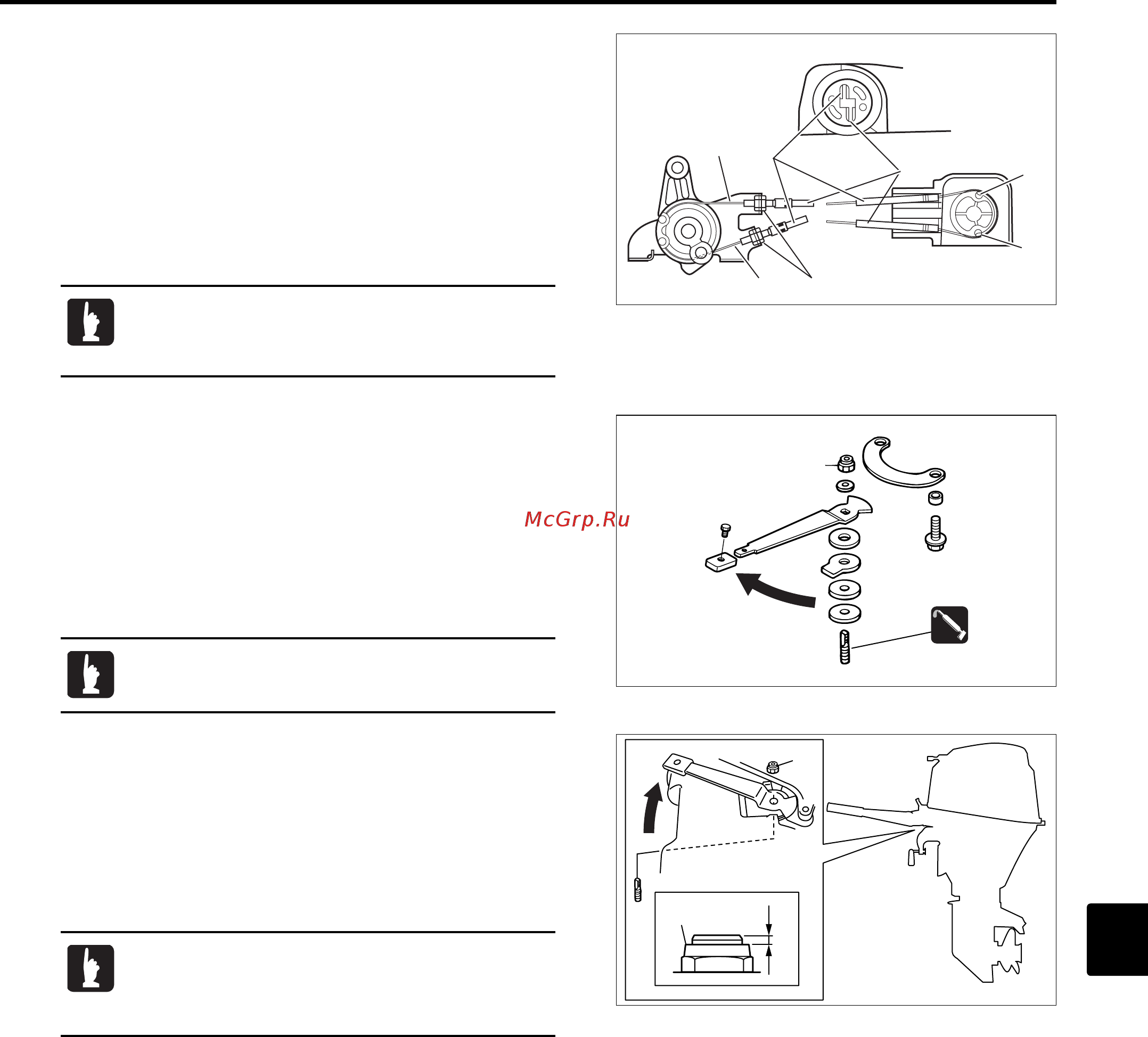

3) Adjustment of Co-pilot Plate
1. Assemble co-pilot plate and tiller handle ass'y.
2. Move co-pilot handle to the left to slide it to tightening
position.
3. Tighten nylon nut 1 until steering load becomes heavy.
4. Move co-pilot handle to the right to slide it to release
position, and check that steering can be made lightly. If not,
repeat steps 2. to 4. to finely adjust.
To prevent nylon nut from falling, tighten nut until
more than one thread of bolt b can be seen
above the nut.
1
GREASE
OBMOBM
OBM
Tighten nylon nut 1 to approximately 6 N·m ( 4
lb·ft ) [ 0.6 kgf·m ] and check steering load.
5. Install cable b of which inner wire is stretched when
acceleration grip is set to full close position.
6.
Then, install another cable a (of which inner wire is stretched
when acceleration grip is set to full open position.)
7. Adjust position of lock nuts 6 of throttle cable so that throttle
grip can reach full open and full close positions.
b
b
a
a
c
c
6
Adjust cable tension so that it moves
approximately 1mm when pushed lightly with a
finger.
MFS25_30_ch07.qxd 06.3.9 4:57 PM ページ 15
