![Tohatsu MFS 30 [238/319] Bracket](/views2/1240939/page238/bgee.png)
Bracket
7-28
25/30 2006
1
4
5
6
7
8
a
1
2
3
4
5

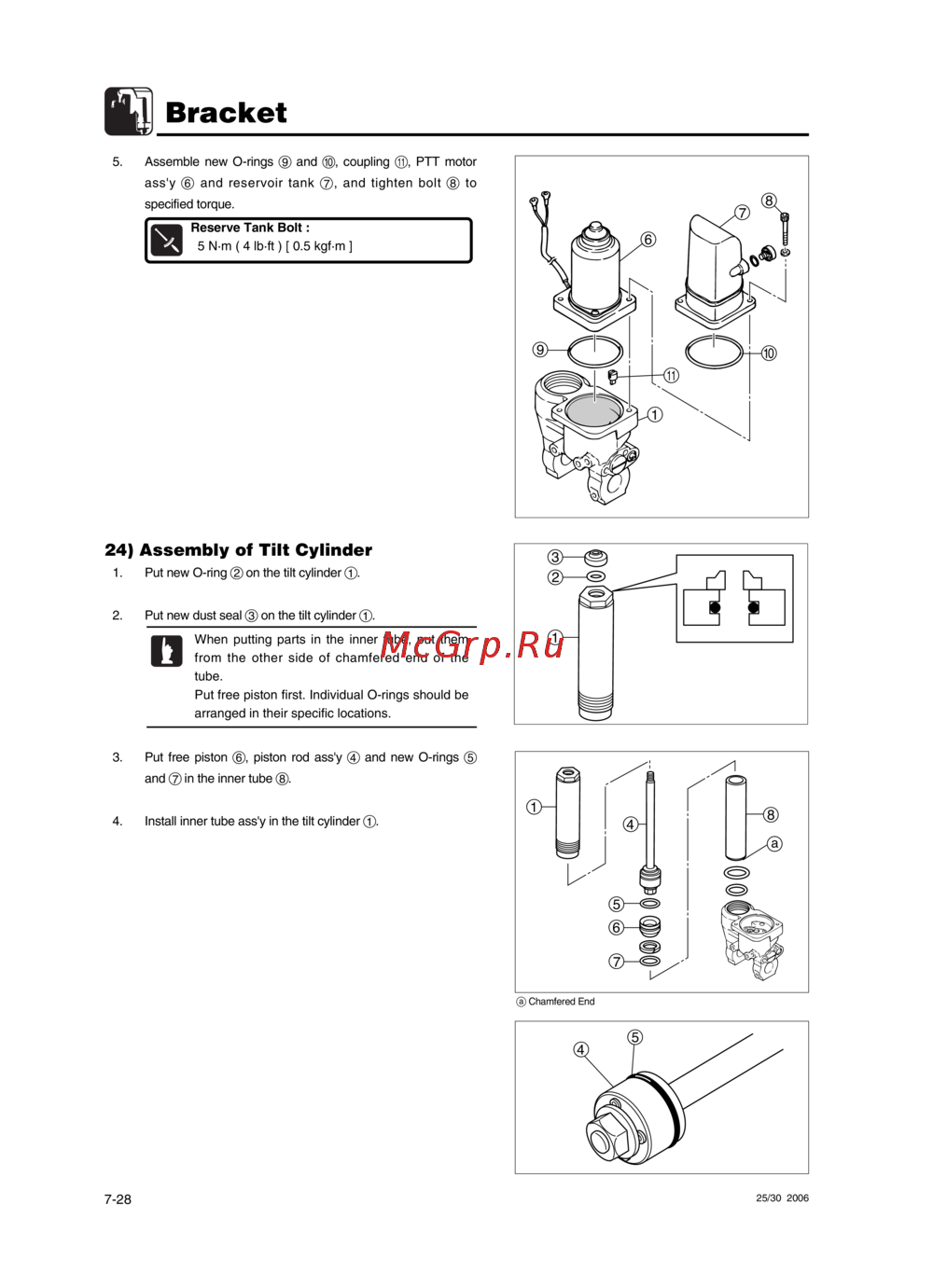

24) Assembly of Tilt Cylinder
1. Put new O-ring 2 on the tilt cylinder 1.
2. Put new dust seal 3 on the tilt cylinder 1.
3. Put free piston 6, piston rod ass'y 4 and new O-rings 5
and 7 in the inner tube 8.
4. Install inner tube ass'y in the tilt cylinder 1.
When putting parts in the inner tube, put them
from the other side of chamfered end of the
tube.
Put free piston first. Individual O-rings should be
arranged in their specific locations.
a Chamfered End
6
1
7
8
0
q
9
Reserve Tank Bolt :
5N·m ( 4 lb·ft ) [ 0.5 kgf·m ]
5. Assemble new O-rings 9 and 0, coupling q, PTT motor
ass'y 6 and reservoir tank 7, and tighten bolt 8 to
specified torque.
MFS25_30_ch07.qxd 06.3.9 4:57 PM ページ 28
