Tohatsu MFS 30 — проверка электрической системы и искрового зажигания [260/319]
![Tohatsu MFS 30 [260/319] Inspection of plug cap](/views2/1240939/page260/bg104.png)

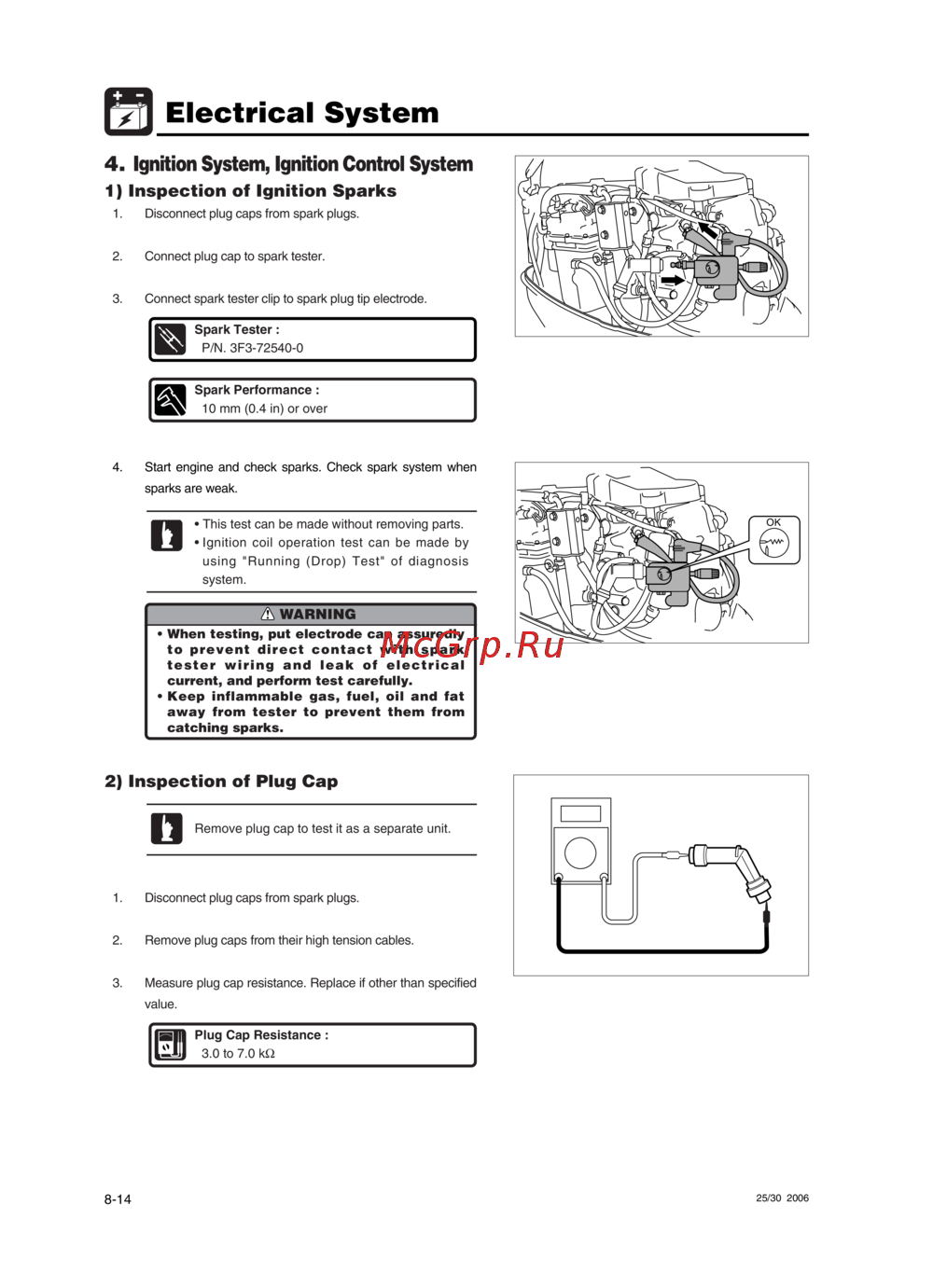

8-14
Electrical System
25/30 2006
4. Start engine and check sparks. Check spark system when
sparks are weak.
Spark Tester :
P/N. 3F3-72540-0
OK
WARNING
• When testing, put electrode cap assuredly
to prevent direct contact with spark
tester wiring and leak of electrical
current, and perform test carefully.
• Keep inflammable gas, fuel, oil and fat
away from tester to prevent them from
catching sparks.
2) Inspection of Plug Cap
Plug Cap Resistance :
3.0 to 7.0 kΩ
Spark Performance :
10 mm (0.4 in) or over
Remove plug cap to test it as a separate unit.
1. Disconnect plug caps from spark plugs.
2. Remove plug caps from their high tension cables.
3. Measure plug cap resistance. Replace if other than specified
value.
• This test can be made without removing parts.
• Ignition coil operation test can be made by
using "Running (Drop) Test" of diagnosis
system.
4.
Ignition System, Ignition Control System
1) Inspection of Ignition Sparks
1. Disconnect plug caps from spark plugs.
2. Connect plug cap to spark tester.
3. Connect spark tester clip to spark plug tip electrode.
MFS25_30_ch08.qxd 06.3.9 5:00 PM ページ 14
