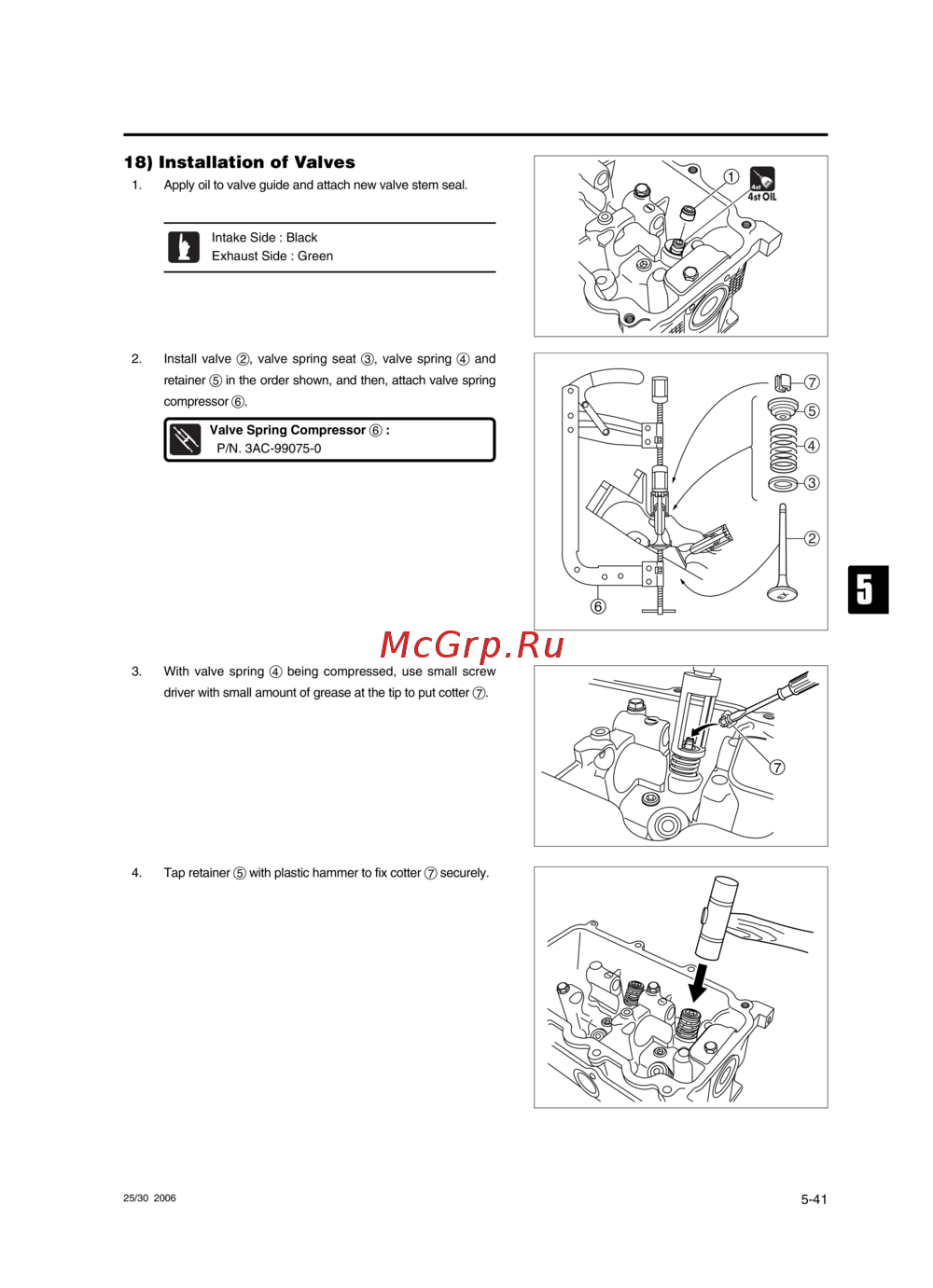

18) Installation of Valves
1. Apply oil to valve guide and attach new valve stem seal.
2. Install valve 2, valve spring seat 3, valve spring 4 and
retainer 5 in the order shown, and then, attach valve spring
compressor 6.
Valve Spring Compressor 6 :
P/N. 3AC-99075-0
3. With valve spring 4 being compressed, use small screw
driver with small amount of grease at the tip to put cotter 7.
4. Tap retainer 5 with plastic hammer to fix cotter 7 securely.
Intake Side : Black
Exhaust Side : Green
EX
6
7
5
4
2
3
