![Tohatsu MFS 30 [310/319] Wiring diagram of remote and control meters](/img/pdf.png)
Tohatsu MFS 30 [310/319] Wiring diagram of remote and control meters
![Tohatsu MFS 30 [310/319] Wiring diagram of remote and control meters](/views2/1240939/page310/bg136.png)
10-6
Accessories
r/min
25/30 2006

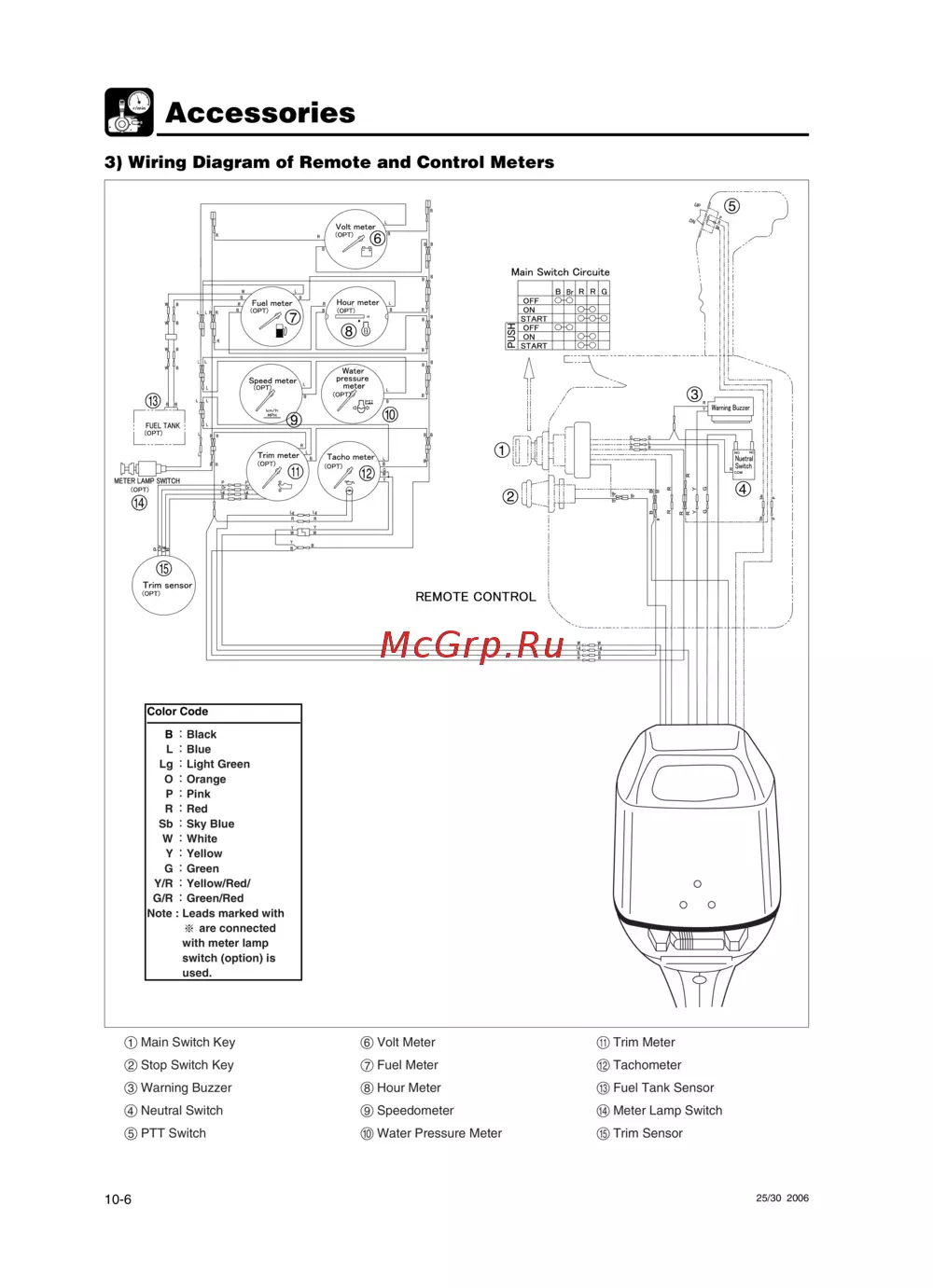

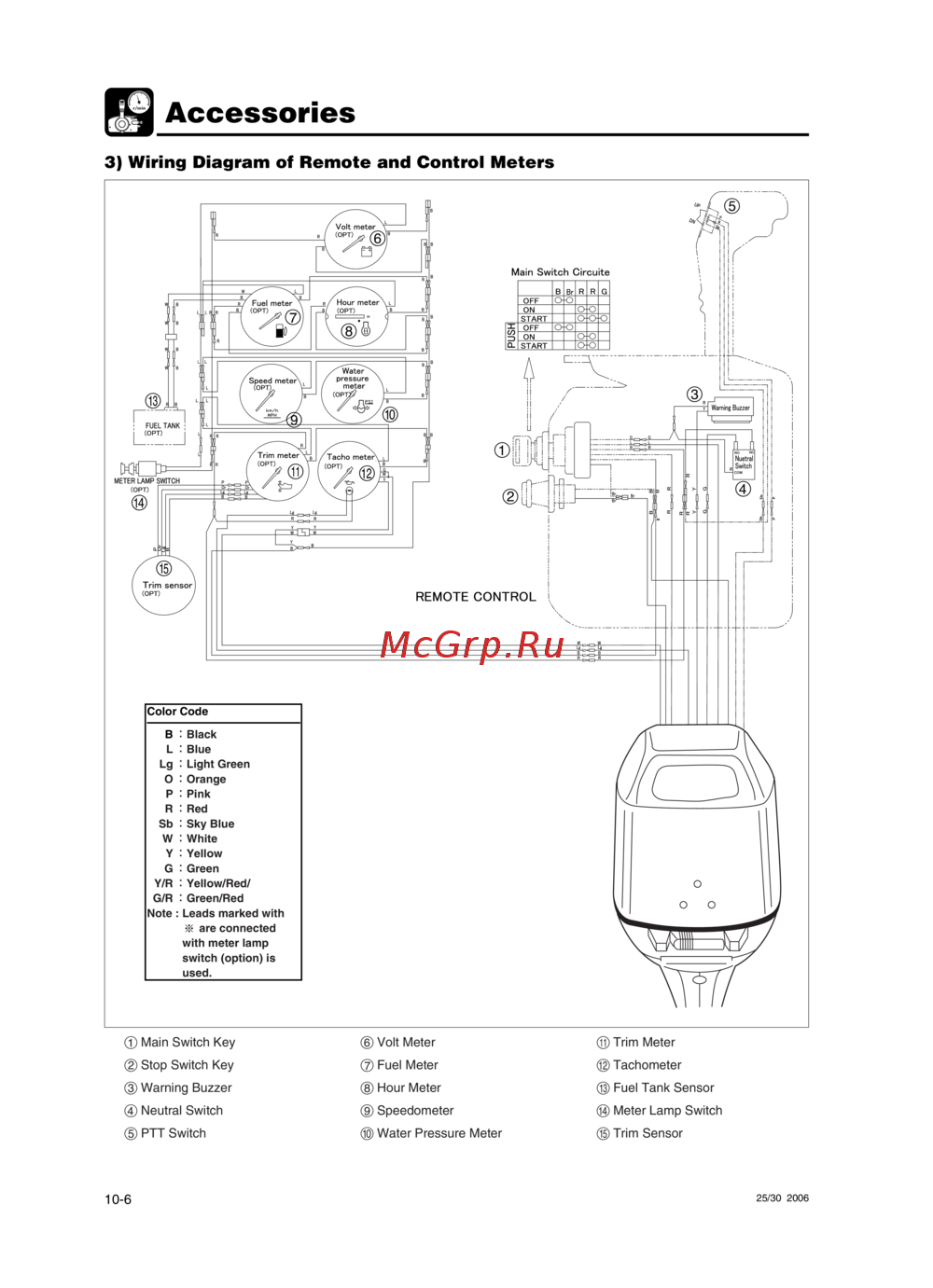

3) Wiring Diagram of Remote and Control Meters
Color Code
B
：Black
L ：Blue
Lg ：Light Green
O ：Orange
P ：Pink
R ：Red
Sb ：Sky Blue
W ：White
Y ：Yellow
G ：Green
Y/R ：Yellow/Red/
G/R ：Green/Red
Note : Leads marked with
are connected
with meter lamp
switch (option) is
used.
1 Main Switch Key
2 Stop Switch Key
3 Warning Buzzer
4 Neutral Switch
5 PTT Switch
6 Volt Meter
7 Fuel Meter
8 Hour Meter
9 Speedometer
0 Water Pressure Meter
q Trim Meter
w Tachometer
e Fuel Tank Sensor
r Meter Lamp Switch
t Trim Sensor
1
2
3
4
5
w
9
0
q
e
r
t
6
7
8
MFS25_30_ch10.qxd 06.3.9 5:04 PM ページ 6
