![Tohatsu MFS 30 [240/319] Bracket](/views2/1240939/page240/bgf0.png)
Bracket
7-30
25/30 2006

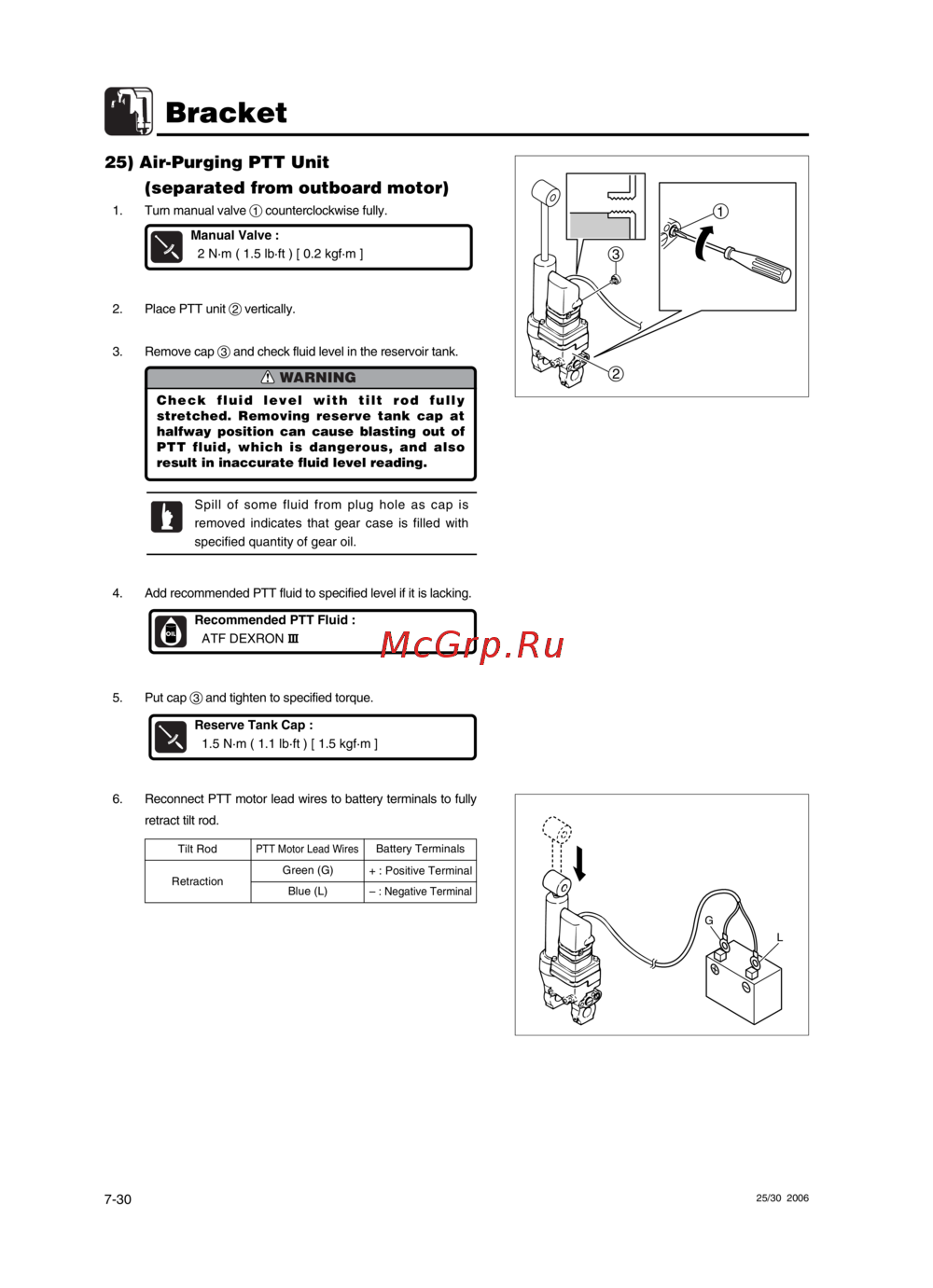

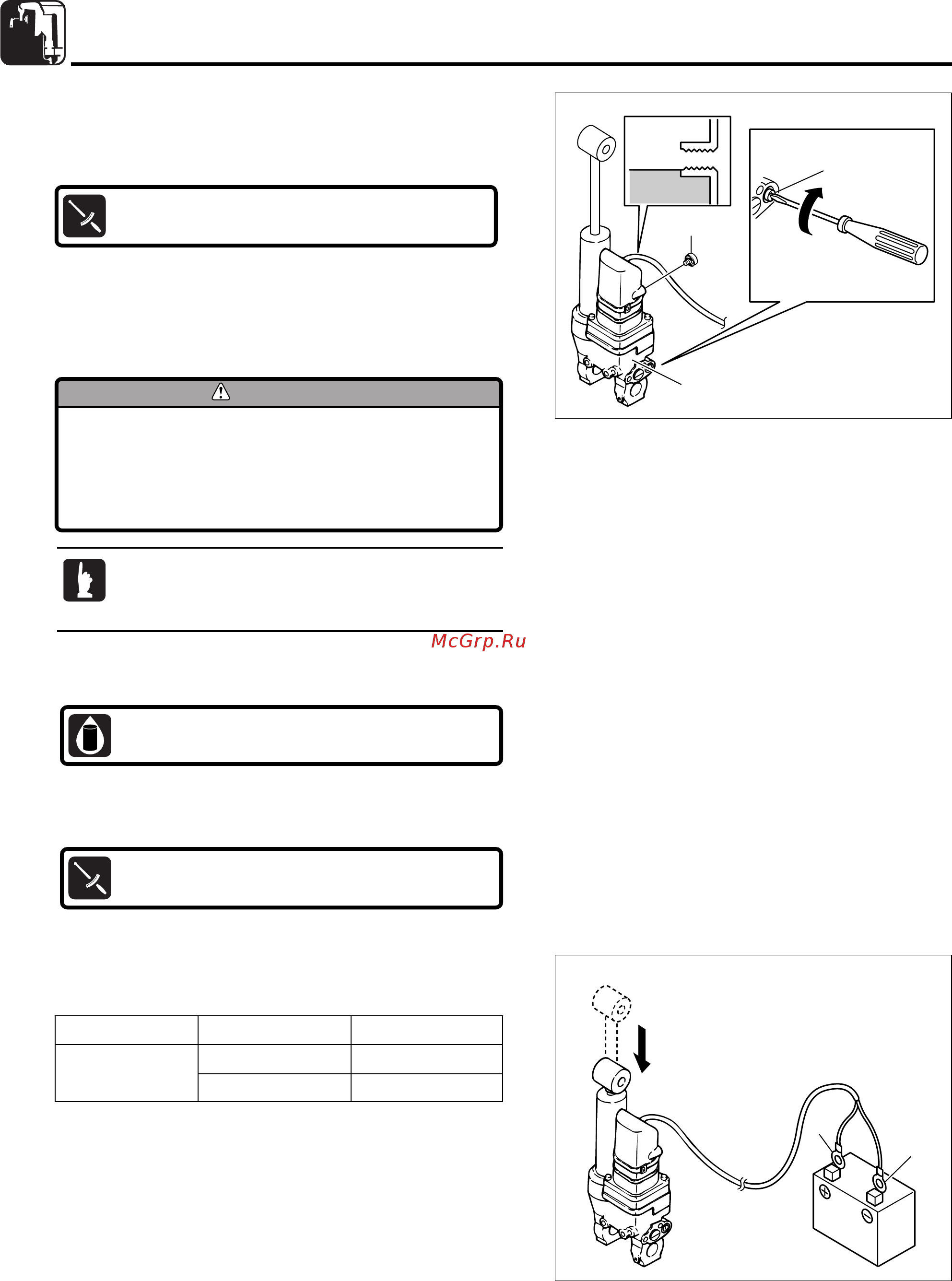

25) Air-Purging PTT Unit
(separated from outboard motor)
1. Turn manual valve 1 counterclockwise fully.
Manual Valve :
2 N·m ( 1.5 lb·ft ) [ 0.2 kgf·m ]
1
3
2
WARNING
Check fluid level with tilt rod fully
stretched. Removing reserve tank cap at
halfway position can cause blasting out of
PTT fluid, which is dangerous, and also
result in inaccurate fluid level reading.
Reserve Tank Cap :
1.5 N·m ( 1.1 lb·ft ) [ 1.5 kgf·m ]
Tilt Rod
PTT Motor Lead Wires
Battery Terminals
Retraction
Green (G)
+ : Positive Terminal
Blue (L)
– : Negative Terminal
G
L
2. Place PTT unit 2 vertically.
3. Remove cap 3 and check fluid level in the reservoir tank.
4. Add recommended PTT fluid to specified level if it is lacking.
6. Reconnect PTT motor lead wires to battery terminals to fully
retract tilt rod.
5. Put cap 3 and tighten to specified torque.
Spill of some fluid from plug hole as cap is
removed indicates that gear case is filled with
specified quantity of gear oil.
Recommended PTT Fluid :
ATF DEXRON III
OIL
MFS25_30_ch07.qxd 06.3.9 4:57 PM ページ 30
