![Tohatsu MFS 30 [216/319] P l fig 18](/img/pdf.png)

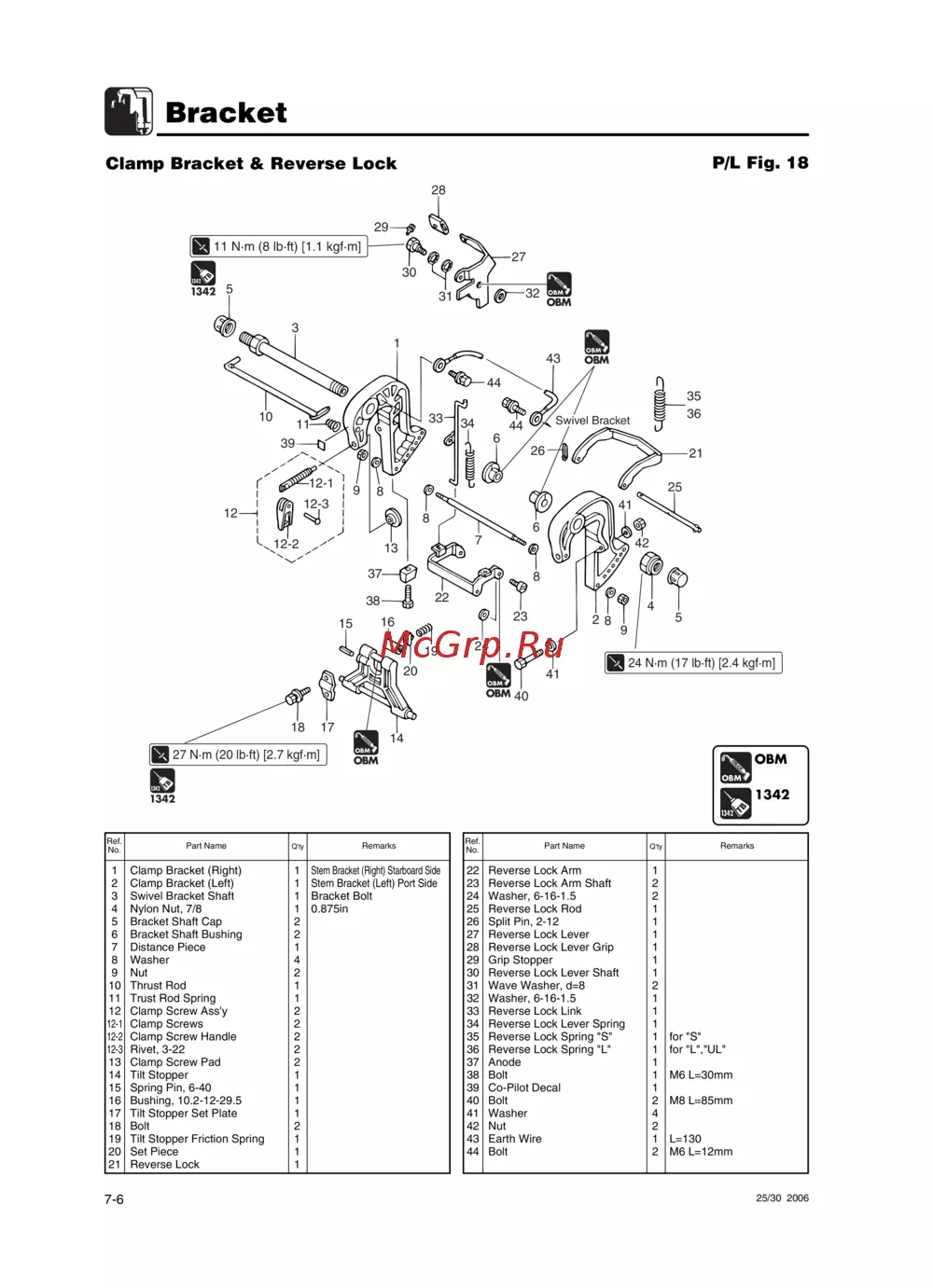

Tohatsu MFS 30 [216/319] P l fig 18
![Tohatsu MFS 30 [216/319] P l fig 18](/views2/1240939/page216/bgd8.png)
Bracket
7-6
25/30 2006
28
29
30
31
27
32
35
36
21
25
41
42
4
5
2
8
9
40
41
24
23
8
6
7
22
8
26
44
6
34
33
44
43
1
3
5
10
11
39
12
12-2
12-1
12-3
9
8
13
37
38
15
16
20
19
18 17
14
Swivel Bracket
11 N·m (8 lb·ft) [1.1 kgf·m]
27 N·m (20 lb·ft) [2.7 kgf·m]
24 N·m (17 lb·ft) [2.4 kgf·m]
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
GREASE
OBMOBM
OBM
TB
13421342
1342
TB
13421342
1342
Clamp Bracket & Reverse Lock
1 Clamp Bracket (Right) 1
Stern Bracket (Right) Starboard Side
2 Clamp Bracket (Left) 1
Stern Bracket (Left) Port Side
3 Swivel Bracket Shaft 1 Bracket Bolt
4 Nylon Nut, 7/8 1 0.875in
5 Bracket Shaft Cap 2
6 Bracket Shaft Bushing 2
7 Distance Piece 1
8Washer 4
9 Nut 2
10 Thrust Rod 1
11 Trust Rod Spring 1
12 Clamp Screw Ass'y 2
12-1
Clamp Screws 2
12-2
Clamp Screw Handle 2
12-3
Rivet, 3-22 2
13 Clamp Screw Pad 2
14 Tilt Stopper 1
15 Spring Pin, 6-40 1
16 Bushing, 10.2-12-29.5 1
17 Tilt Stopper Set Plate 1
18 Bolt 2
19 Tilt Stopper Friction Spring 1
20 Set Piece 1
21 Reverse Lock 1
Ref.
No.
Part Name Remarks
Q'ty
22 Reverse Lock Arm 1
23 Reverse Lock Arm Shaft 2
24 Washer, 6-16-1.5 2
25 Reverse Lock Rod 1
26 Split Pin, 2-12 1
27 Reverse Lock Lever 1
28 Reverse Lock Lever Grip 1
29 Grip Stopper 1
30 Reverse Lock Lever Shaft 1
31 Wave Washer, d=8 2
32 Washer, 6-16-1.5 1
33 Reverse Lock Link 1
34 Reverse Lock Lever Spring 1
35 Reverse Lock Spring "S" 1 for "S"
36 Reverse Lock Spring "L" 1 for "L","UL"
37 Anode 1
38 Bolt 1 M6 L=30mm
39 Co-Pilot Decal 1
40 Bolt 2 M8 L=85mm
41 Washer 4
42 Nut 2
43 Earth Wire 1 L=130
44 Bolt 2 M6 L=12mm
Ref.
No.
Part Name Remarks
Q'ty
P/L Fig. 18
GREASE
OBMOBM
OBM
TB
13421342
1342
MFS25_30_ch07.qxd 06.3.9 4:57 PM ページ 6
