Tohatsu MFS 30 [180/319] Special tools
![Tohatsu MFS 25 [180/319] Special tools](/views2/1240939/page180/bgb4.png)
6-2
Lower Unit
25/30 2006

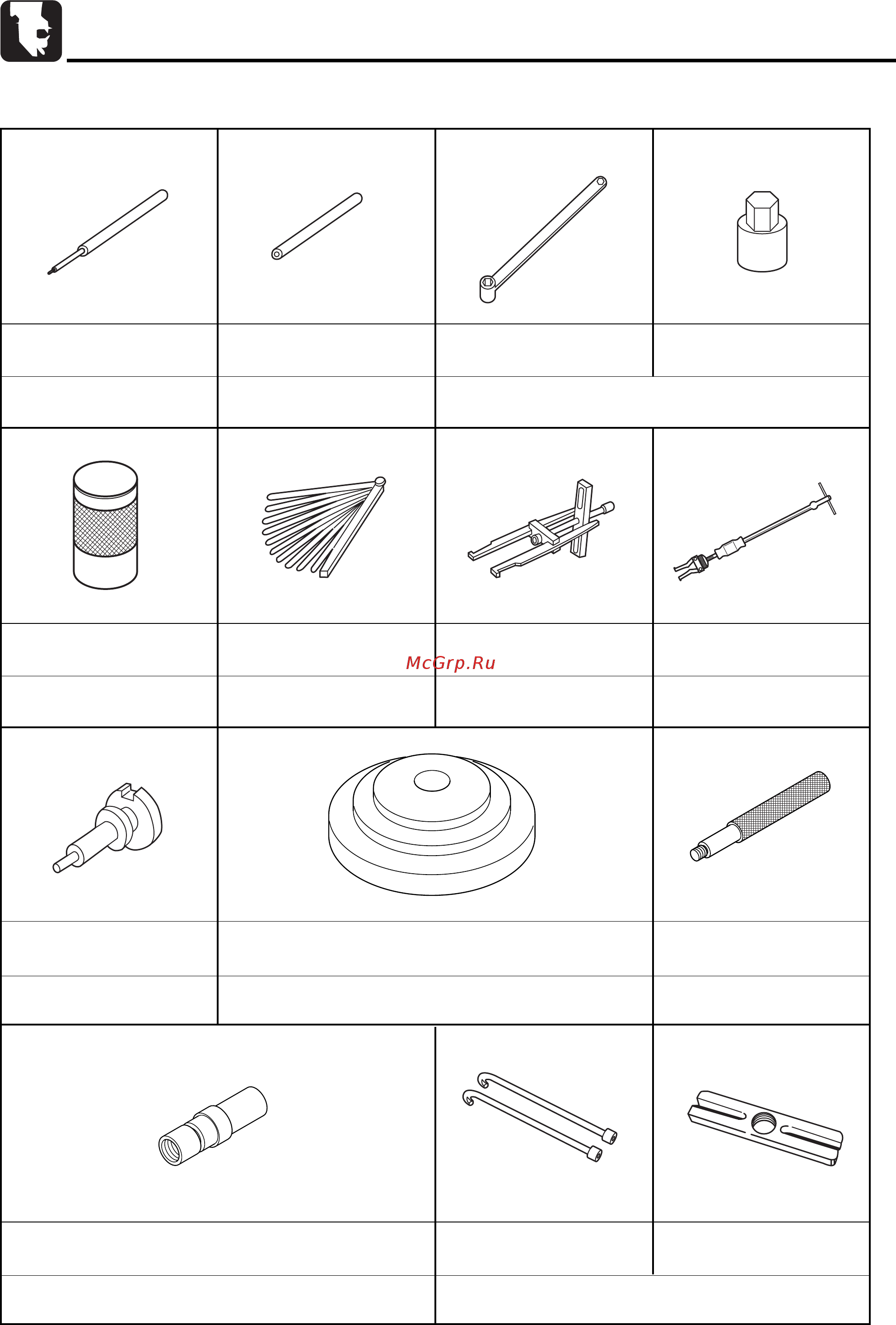

1.Special Tools
Measuring gaps
Installing forward gear
(A gear) bearing
Removing/installing Pinion Nut (B Gear Nut)
Thickness Gauge
P/N. 353-72251-0
Bevel Gear Bearing Installation Tool
P/N. 346-72719-0
Bevel Gear B Nut Wrench
P/N. 346-72231-0
Bevel Gear B Nut Socket
P/N. 346-72232-0
Removing spring pin
Spring Pin Tool A
P/N. 345-72227-0
Installing spring pin
Spring Pin Tool B
P/N. 345-72228-0
Bevel Gear Bearing Puller Ass'y
P/N. 3A3-72755-0
Removing forward gear
(A gear) bearing outer race
Used with driver rod and needle bearing attachment
Positioning propeller shaft housing needle bearing
Center Plate
P/N. 3AC-99701-0
Measuring pinion gear
(B gear) height
Shimming Gauge
P/N. 3AC-99250-0
Slide Hammer Kit
P/N. 3AC-99080-0
Removing forward gear
(A gear) bearing outer race
Driver Rod
P/N. 3AC-99702-0
Used with center plate and
needle bearing attachment
Needle Bearing Attachment
P/N. 3AC-99710-0
Used with driver rod and center plate
Installing propeller shaft housing needle bearing
Puller Claw
P/N. 3AC-99736-0
Removing propeller shaft housing
Puller Plate
P/N. 3AC-99737-0
MFS25_30_ch06.qxd 06.3.9 4:54 PM ページ 2
