6
6-3
25/30 2006

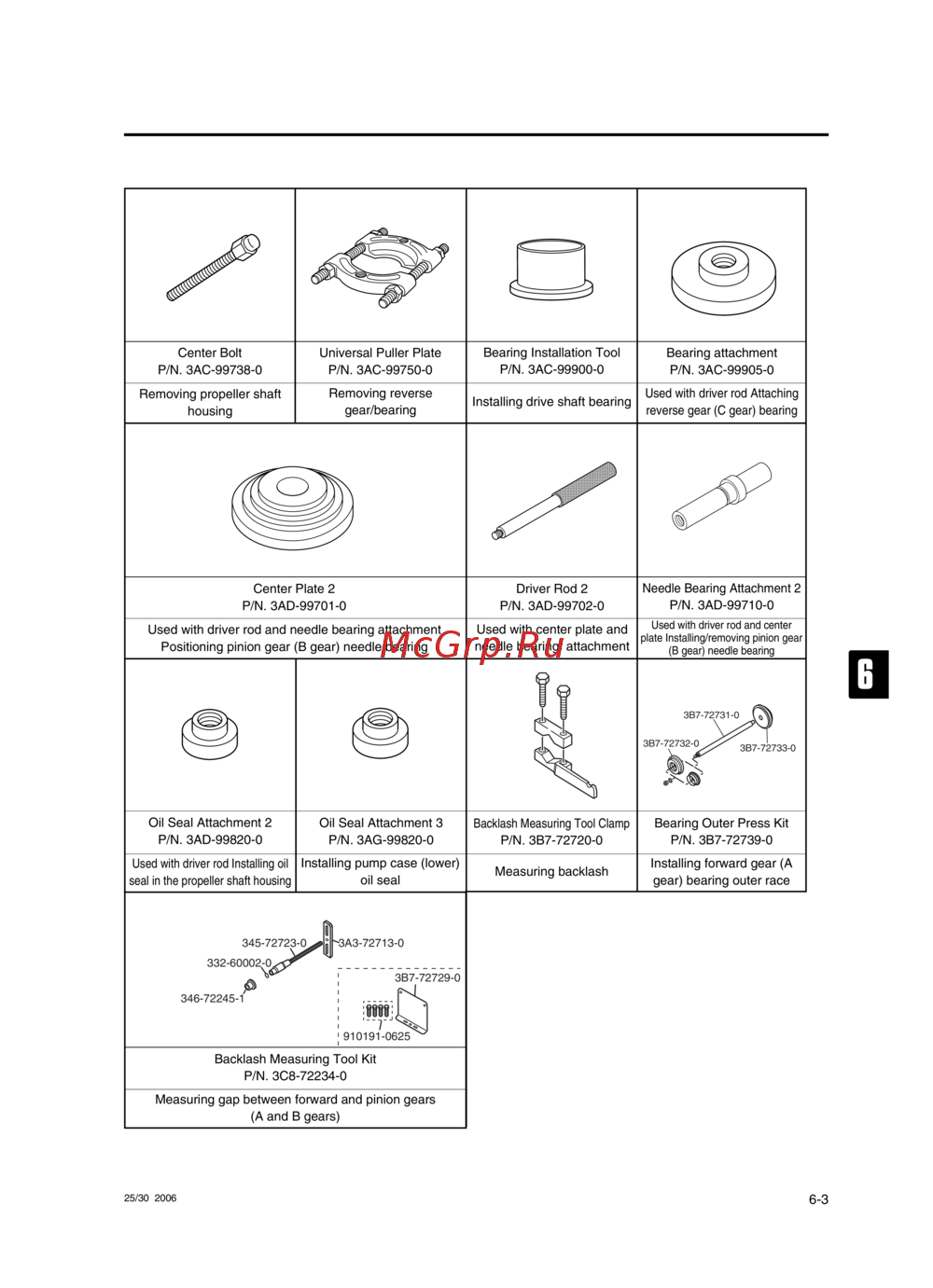

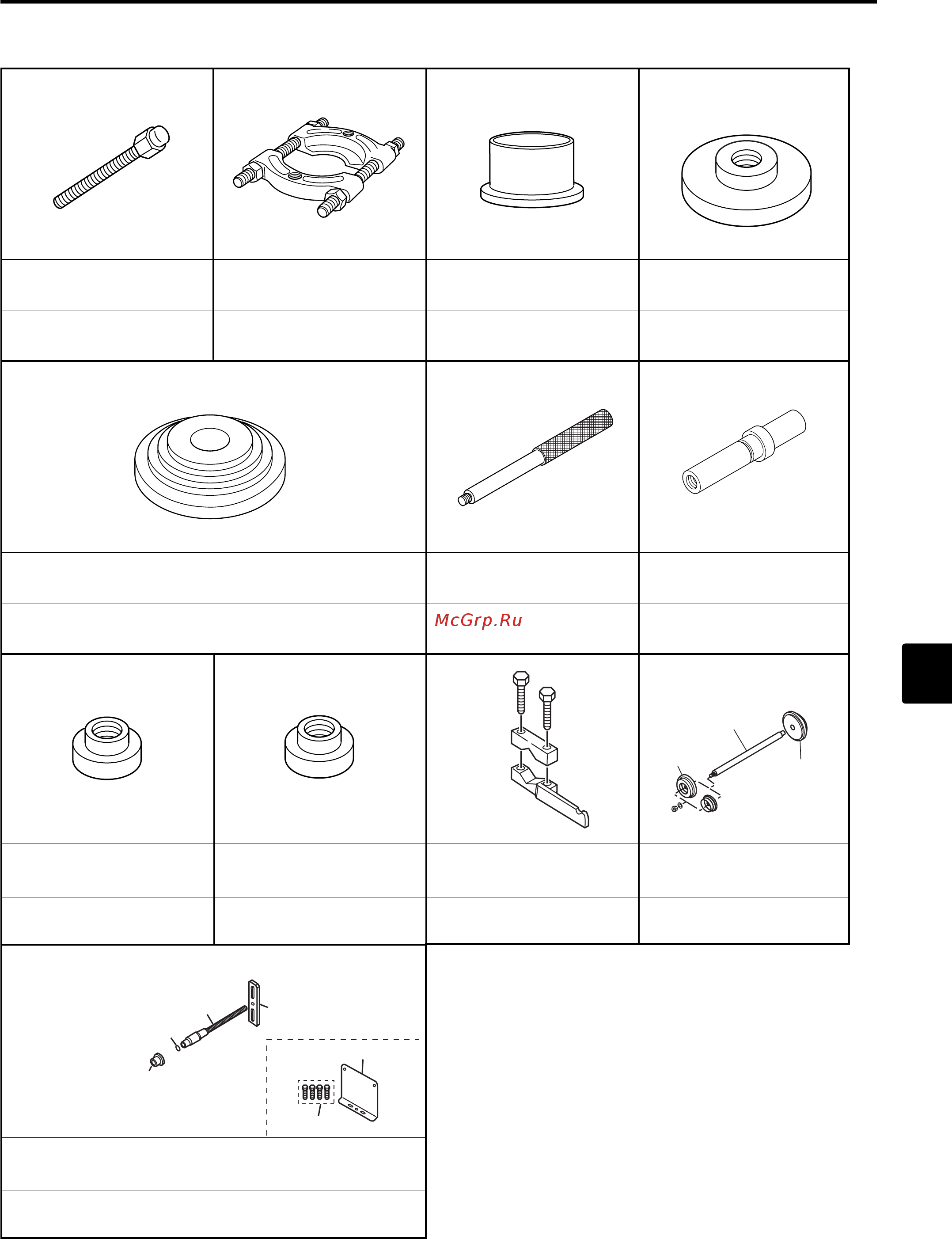

Universal Puller Plate
P/N. 3AC-99750-0
Removing reverse
gear/bearing
Removing propeller shaft
housing
Center Bolt
P/N. 3AC-99738-0
Bearing Installation Tool
P/N. 3AC-99900-0
Installing drive shaft bearing
Used with center plate and
needle bearing attachment
Driver Rod 2
P/N. 3AD-99702-0
Used with driver rod and center
plate Installing/removing pinion gear
(B gear) needle bearing
Needle Bearing Attachment 2
P/N. 3AD-99710-0
Measuring backlash
Backlash Measuring Tool Clamp
P/N. 3B7-72720-0
Installing forward gear (A
gear) bearing outer race
Bearing Outer Press Kit
P/N. 3B7-72739-0
3B7-72733-0
3B7-72731-0
3B7-72732-0
Oil Seal Attachment 3
P/N. 3AG-99820-0
Installing pump case (lower)
oil seal
Used with driver rod Installing oil
seal in the propeller shaft housing
Oil Seal Attachment 2
P/N. 3AD-99820-0
Measuring gap between forward and pinion gears
(A and B gears)
Backlash Measuring Tool Kit
P/N. 3C8-72234-0
346-72245-1
332-60002-0
345-72723-0 3A3-72713-0
910191-0625
3B7-72729-0
Used with driver rod and needle bearing attachment
Positioning pinion gear (B gear) needle bearing
Center Plate 2
P/N. 3AD-99701-0
Used with driver rod Attaching
reverse gear (C gear) bearing
Bearing attachment
P/N. 3AC-99905-0
MFS25_30_ch06.qxd 06.3.9 4:54 PM ページ 3
