![Tohatsu MFS 30 [31/319] Engine lubrication system diagram](/img/pdf.png)
Tohatsu MFS 30 [31/319] Engine lubrication system diagram
![Tohatsu MFS 30 [31/319] Engine lubrication system diagram](/views2/1240939/page31/bg1f.png)
2-5
2
25/30 2006
Oil Pan
Oil Strainer
Oil Pump
Oil Regulator
Oil Filter
Main Gallery
Cam Shaft
No.3 Face
Cam Shaft
No.2 Face
Cam Shaft
No.1 Face
Cam Shaft Upper Journal
Oil Pressure Switch
Rocker Arm
No.1 Face
Rocker Arm
No.2 Face
Rocker Arm
No.3 Face
Cylinder Wall
No.3
Piston
No.2
Piston
No.1
Piston
No.1
Crank Pin
No.2
Crank Pin
No.3
Crank Pin
Crankshaft
No.3 Metal
Crankshaft
No.2 Metal
Crankshaft
No.1 Metal
Crankshaft
No.4 Metal
Rocker Shaft

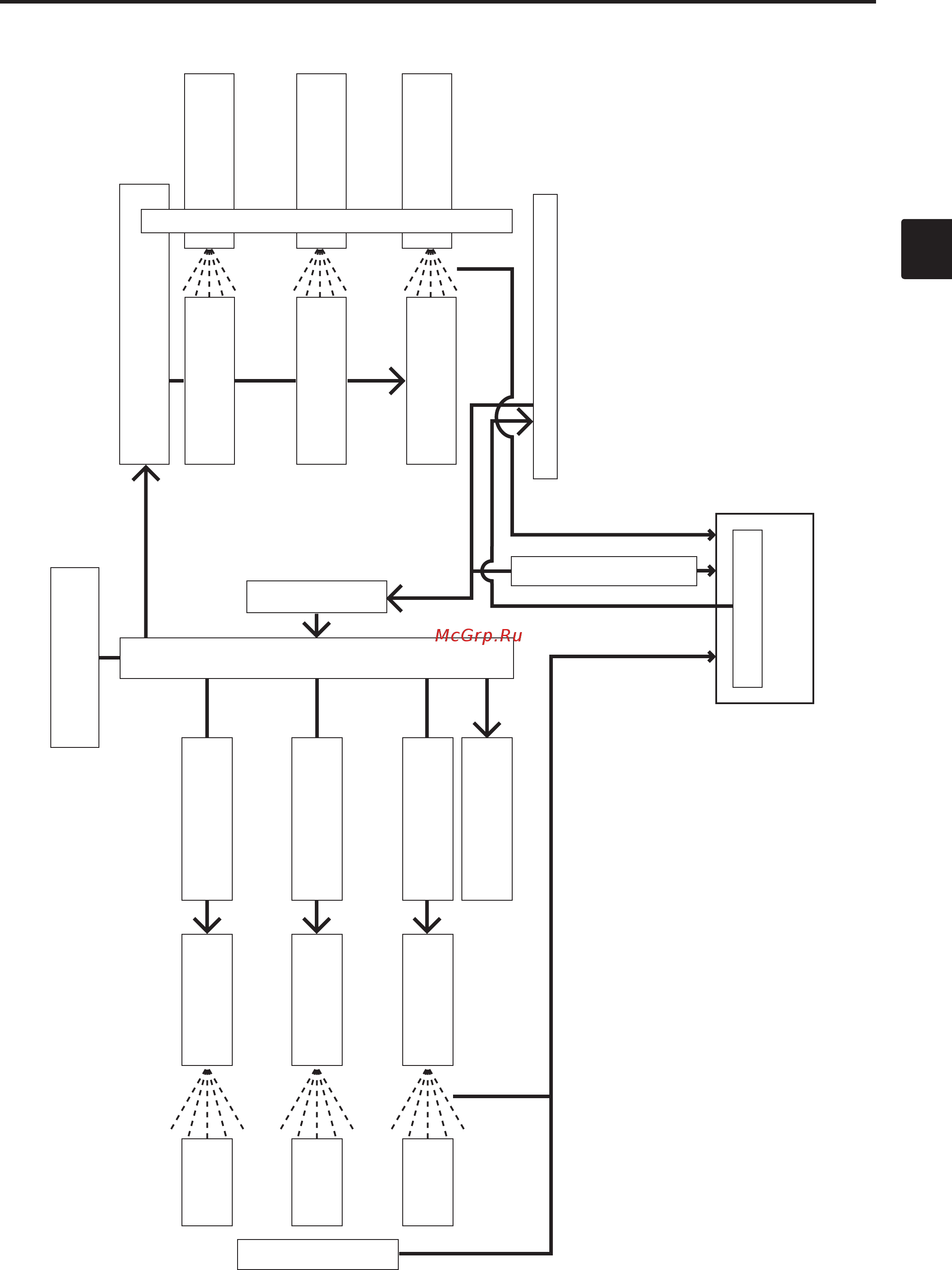

3.Engine Lubrication System Diagram
