![Tohatsu MFS 30 — инструкция по разборке и сборке вала пропеллера [189/319]](/img/pdf.png)
Tohatsu MFS 30 — инструкция по разборке и сборке вала пропеллера [189/319]
![Tohatsu MFS 30 [189/319] Caution](/views2/1240939/page189/bgbd.png)
6
6-11
25/30 2006
2. Check clutch 3, spring retainer 5, ball, and push rod 4 for
crack and wear. Replace if necessary.
1
2
4

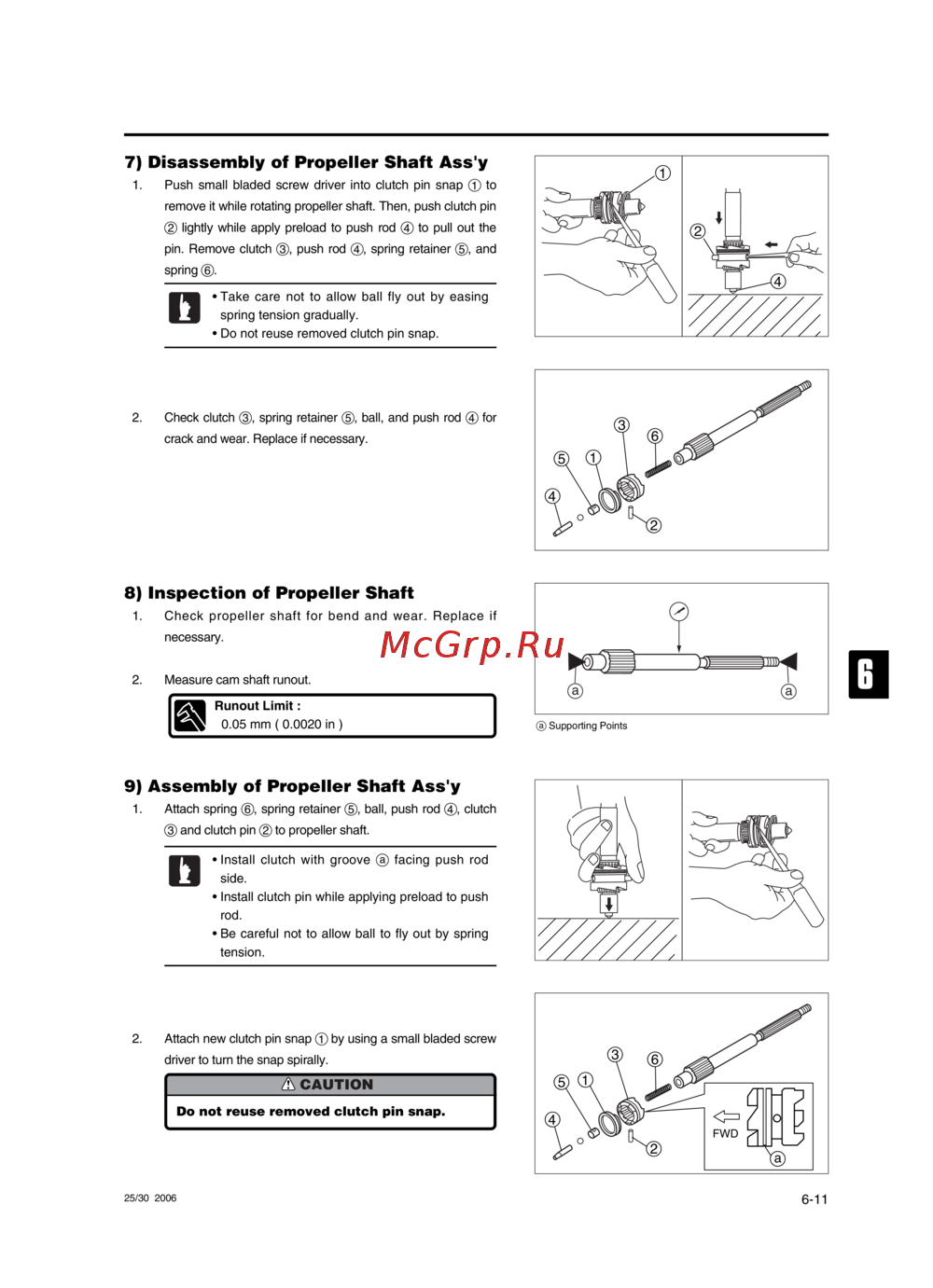

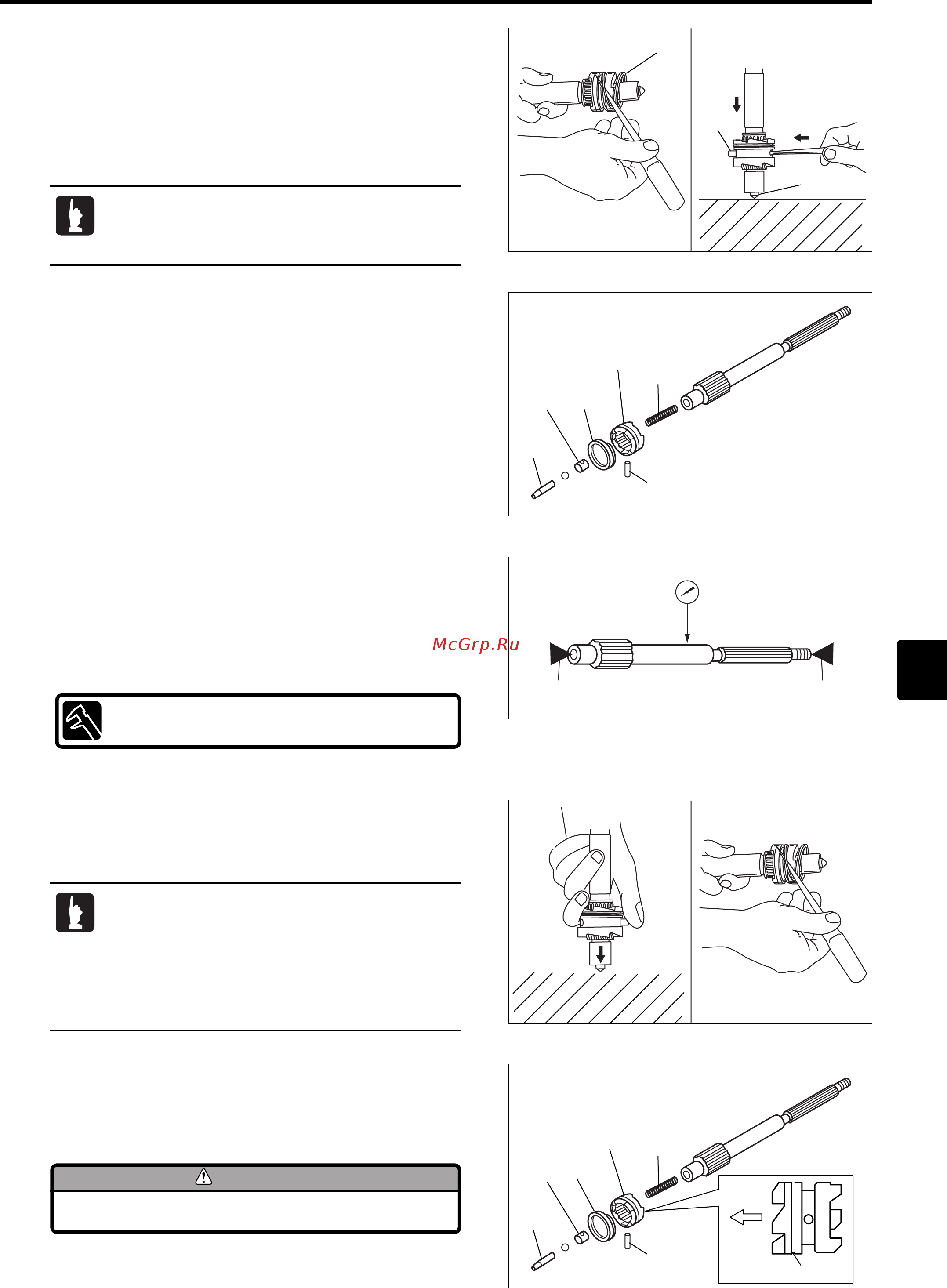

7) Disassembly of Propeller Shaft Ass'y
1. Push small bladed screw driver into clutch pin snap 1 to
remove it while rotating propeller shaft. Then, push clutch pin
2 lightly while apply preload to push rod 4 to pull out the
pin. Remove clutch 3, push rod 4, spring retainer 5, and
spring 6.
• Take care not to allow ball fly out by easing
spring tension gradually.
• Do not reuse removed clutch pin snap.
1
2
3
4
5
6
a
a
Runout Limit :
0.05 mm ( 0.0020 in )
8) Inspection of Propeller Shaft
1. Check propeller shaft for bend and wear. Replace if
necessary.
2. Measure cam shaft runout.
a Supporting Points
9) Assembly of Propeller Shaft Ass'y
1. Attach spring 6, spring retainer 5, ball, push rod 4, clutch
3 and clutch pin 2 to propeller shaft.
• Install clutch with groove a facing push rod
side.
• Install clutch pin while applying preload to push
rod.
• Be careful not to allow ball to fly out by spring
tension.
2
3
4
5
6
1
FWD
a
2. Attach new clutch pin snap 1 by using a small bladed screw
driver to turn the snap spirally.
CAUTION
Do not reuse removed clutch pin snap.
MFS25_30_ch06.qxd 06.3.9 4:54 PM ページ 11
