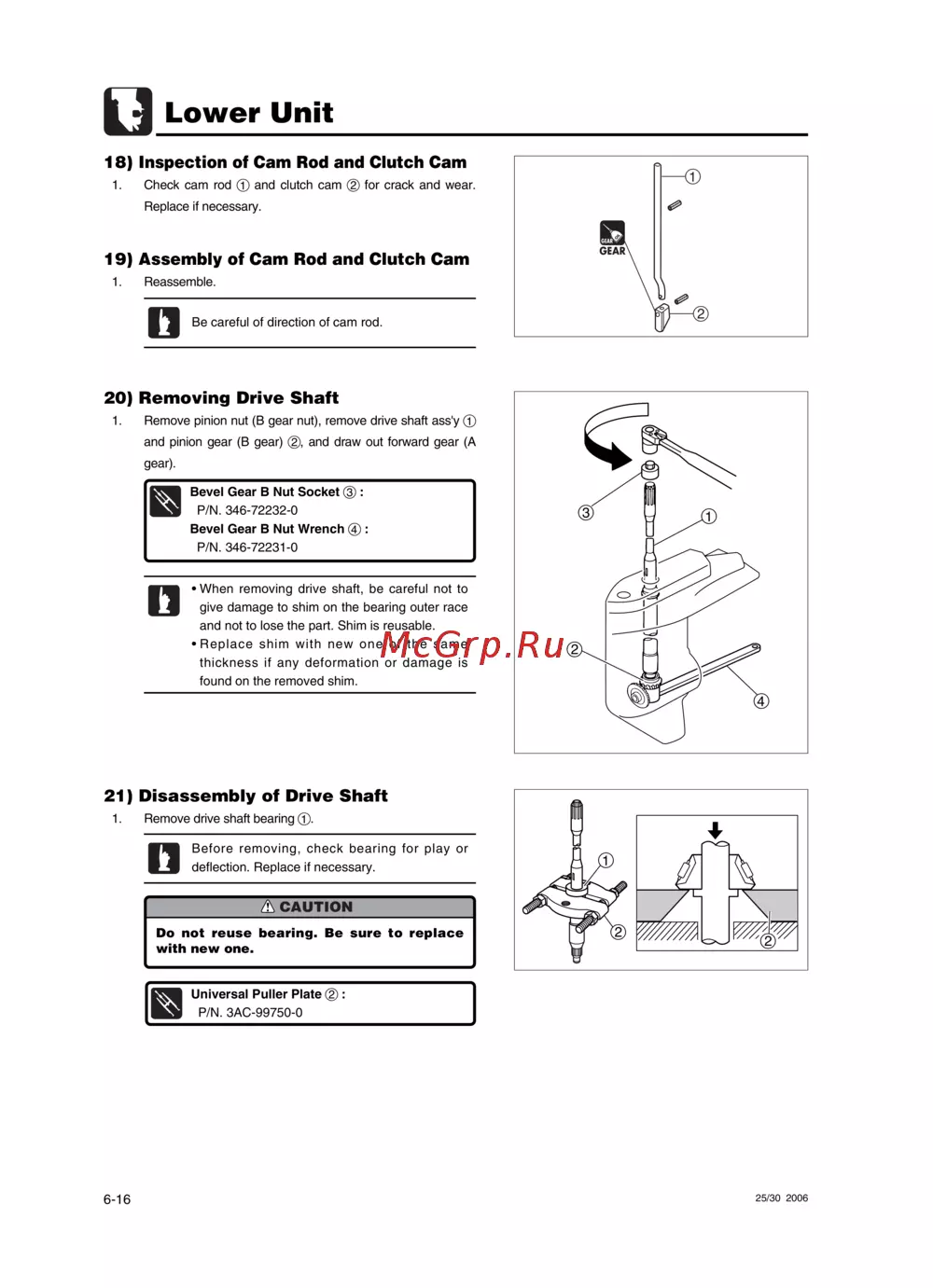

Tohatsu MFS 30 [194/319] Removing drive shaft
![Tohatsu MFS 30 [194/319] Removing drive shaft](/views2/1240939/page194/bgc2.png)
6-16
Lower Unit
25/30 2006
18)
Inspection of Cam Rod and Clutch Cam
1. Check cam rod 1 and clutch cam 2 for crack and wear.
Replace if necessary.
19)
Assembly of Cam Rod and Clutch Cam
1. Reassemble.
Be careful of direction of cam rod.

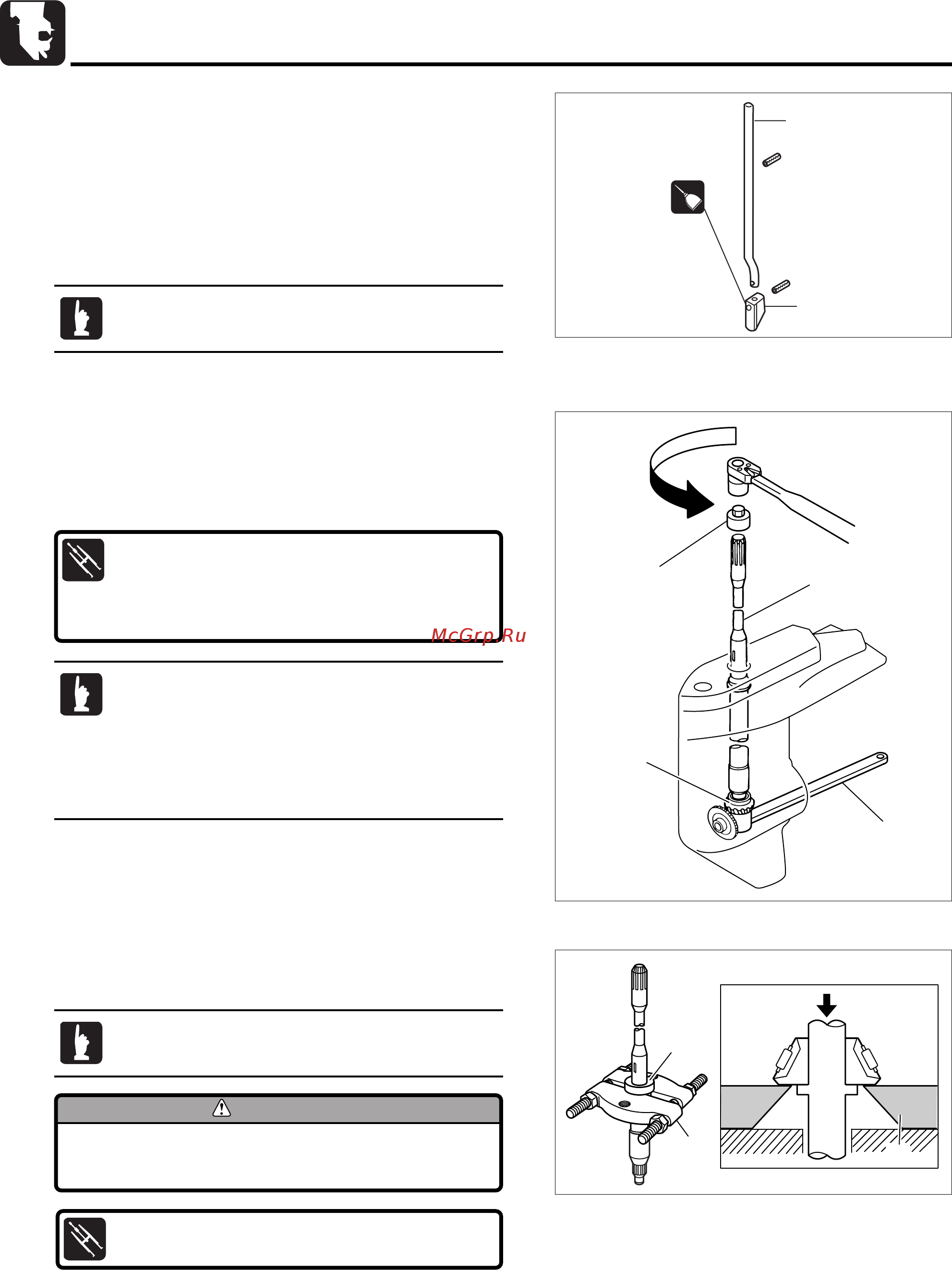

20) Removing Drive Shaft
1. Remove pinion nut (B gear nut), remove drive shaft ass'y 1
and pinion gear (B gear) 2, and draw out forward gear (A
gear).
Bevel Gear B Nut Socket 3 :
P/N. 346-72232-0
Bevel Gear B Nut Wrench 4 :
P/N. 346-72231-0
1
3
4
2
• When removing drive shaft, be careful not to
give damage to shim on the bearing outer race
and not to lose the part. Shim is reusable.
• Replace shim with new one of the same
thickness if any deformation or damage is
found on the removed shim.
2
2
1
21) Disassembly of Drive Shaft
1. Remove drive shaft bearing 1.
Do not reuse bearing. Be sure to replace
with new one.
CAUTION
Universal Puller Plate 2 :
P/N. 3AC-99750-0
Before removing, check bearing for play or
deflection. Replace if necessary.
OIL
GEARGEAR
GEAR
1
2
MFS25_30_ch06.qxd 06.3.9 4:54 PM ページ 16
