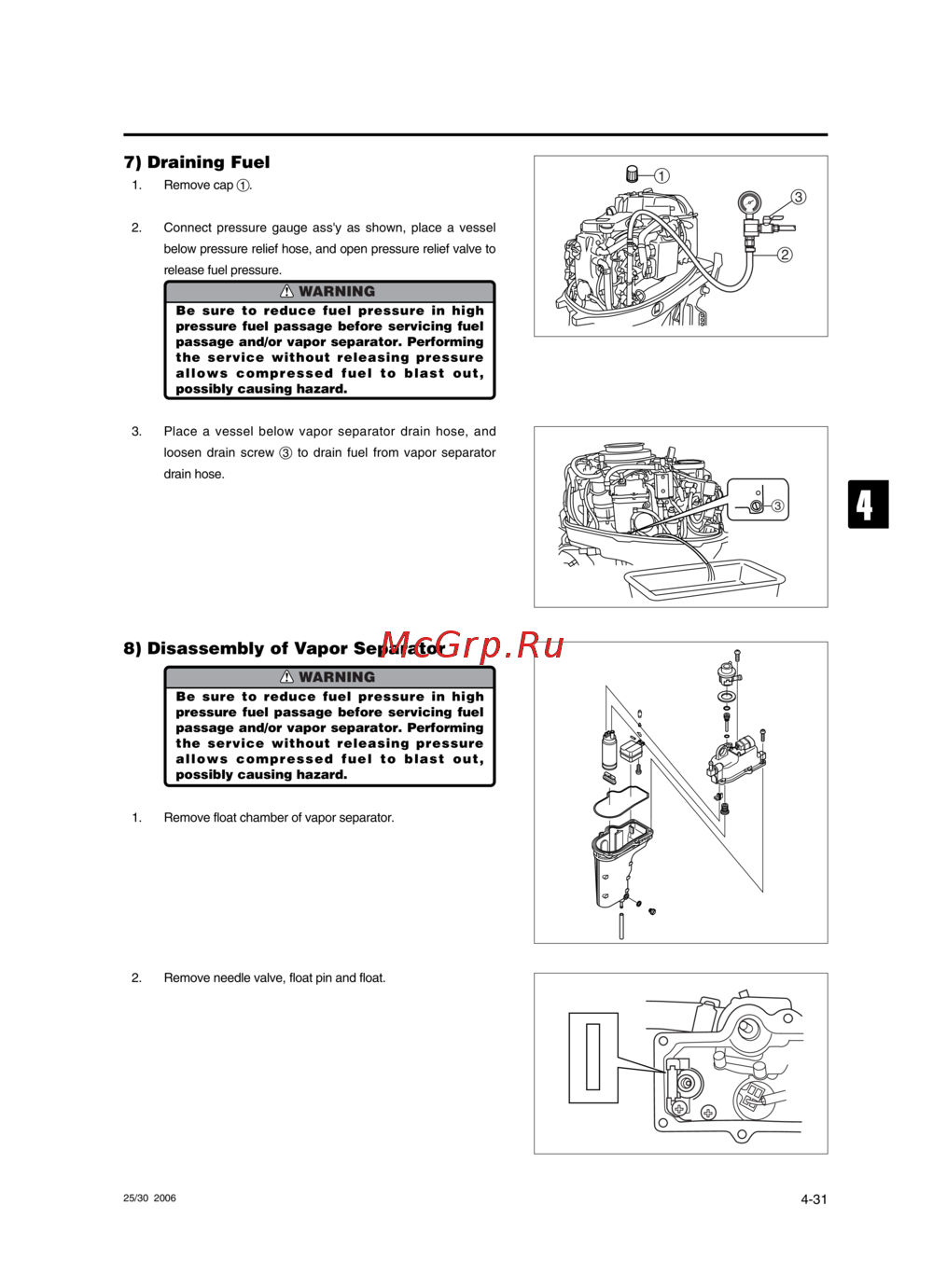

![Tohatsu MFS 30 [113/319] Warning](/views2/1240939/page113/bg71.png)
4
4-31
25/30 2006
2. Remove needle valve, float pin and float.
8) Disassembly of Vapor Separator
WARNING
Be sure to reduce fuel pressure in high
pressure fuel passage before servicing fuel
passage and/or vapor separator. Performing
the service without releasing pressure
allows compressed fuel to blast out,
possibly causing hazard.
1. Remove float chamber of vapor separator.
7) Draining Fuel
1. Remove cap 1.
2. Connect pressure gauge ass'y as shown, place a vessel
below pressure relief hose, and open pressure relief valve to
release fuel pressure.
1
2
3
3
3. Place a vessel below vapor separator drain hose, and
loosen drain screw 3 to drain fuel from vapor separator
drain hose.
WARNING
Be sure to reduce fuel pressure in high
pressure fuel passage before servicing fuel
passage and/or vapor separator. Performing
the service without releasing pressure
allows compressed fuel to blast out,
possibly causing hazard.
MFS25_30_ch04.qxd 06.3.9 4:35 PM ページ 31
