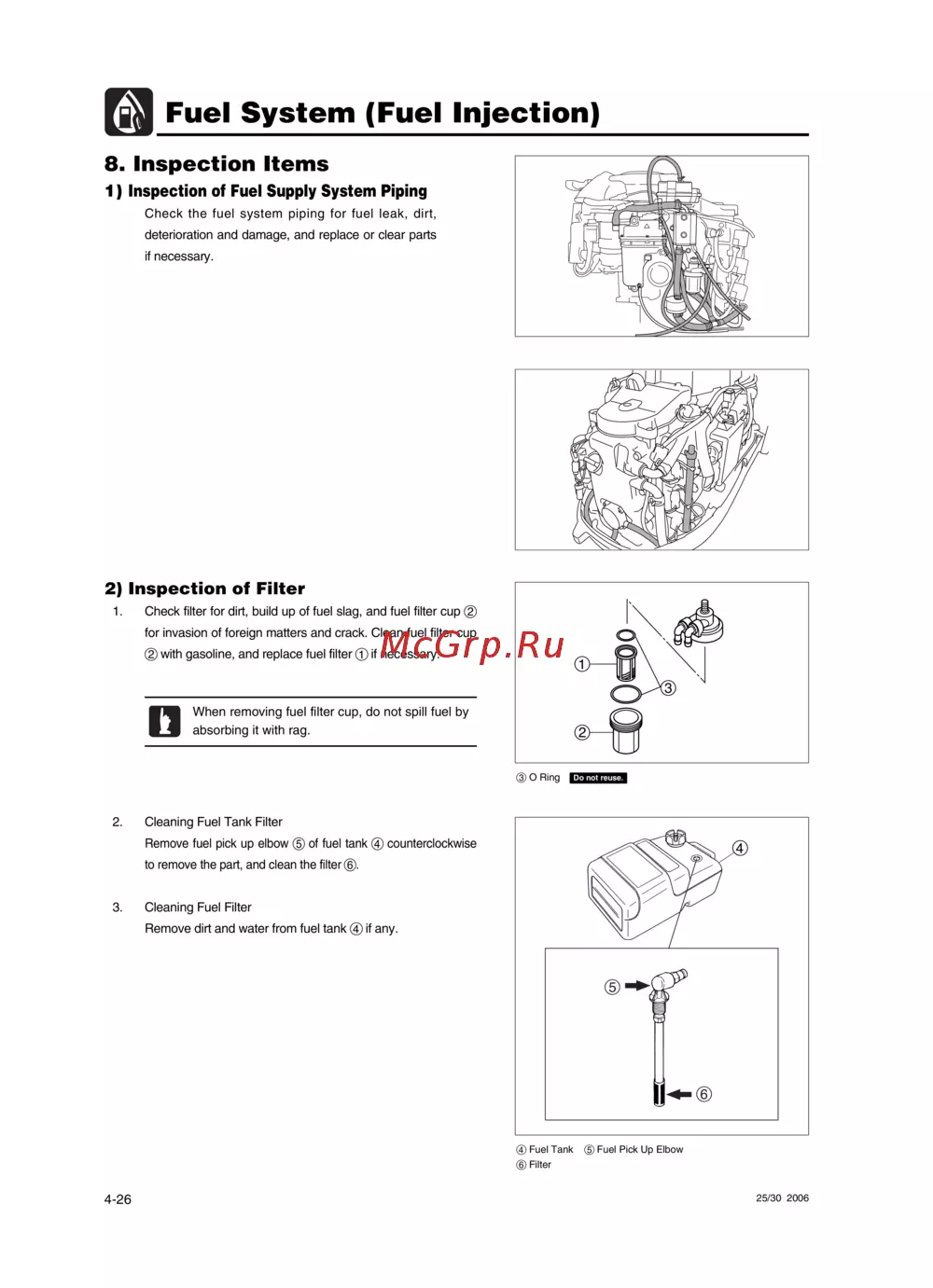

Fuel System (Fuel Injection)
4-26
25/30 2006
8. Inspection Items
1)
Inspection of Fuel Supply System Piping
Check the fuel system piping for fuel leak, dirt,
deterioration and damage, and replace or clear parts
if necessary.
2) Inspection of Filter
1. Check filter for dirt, build up of fuel slag, and fuel filter cup 2
for invasion of foreign matters and crack. Clean fuel filter cup
2 with gasoline, and replace fuel filter 1 if necessary.
1
3
2
When removing fuel filter cup, do not spill fuel by
absorbing it with rag.
3 O Ring
2. Cleaning Fuel Tank Filter
Remove fuel pick up elbow 5 of fuel tank 4 counterclockwise
to remove the part, and clean the filter 6.
3. Cleaning Fuel Filter
Remove dirt and water from fuel tank 4 if any.
4
5
6
4 Fuel Tank 5 Fuel Pick Up Elbow
6 Filter
Do not reuse.
