7-31
25/30 2006
7

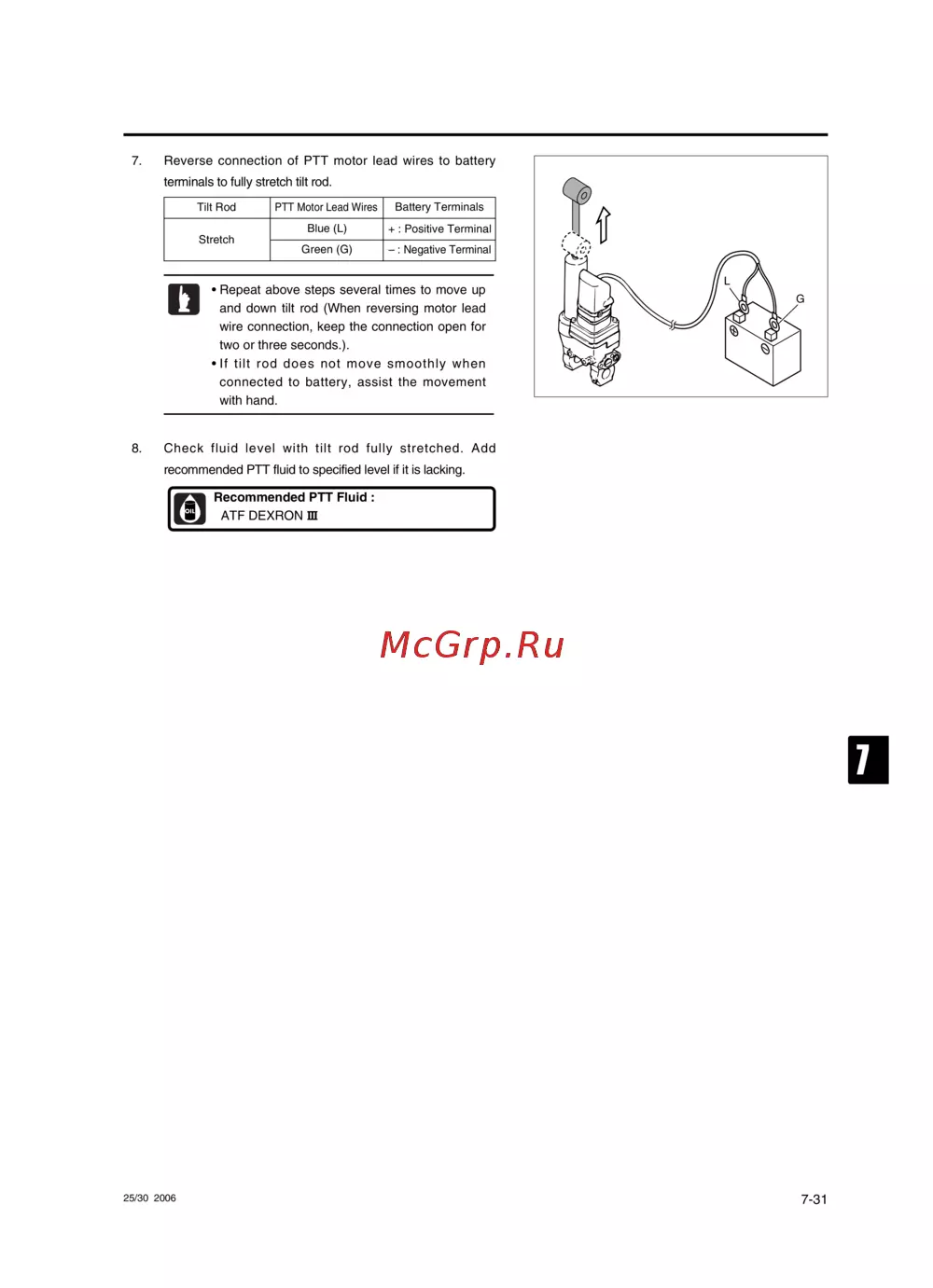

7. Reverse connection of PTT motor lead wires to battery
terminals to fully stretch tilt rod.
L
G
8. Check fluid level with tilt rod fully stretched. Add
recommended PTT fluid to specified level if it is lacking.
• Repeat above steps several times to move up
and down tilt rod (When reversing motor lead
wire connection, keep the connection open for
two or three seconds.).
• If tilt rod does not move smoothly when
connected to battery, assist the movement
with hand.
Recommended PTT Fluid :
ATF DEXRON III
OIL
Tilt Rod
PTT Motor Lead Wires
Battery Terminals
Stretch
Blue (L)
+ : Positive Terminal
Green (G)
– : Negative Terminal
MFS25_30_ch07.qxd 06.3.9 4:57 PM ページ 31
