![Tohatsu MFS 30 — установка и обслуживание насосного корпуса: пошаговое руководство [207/319]](/img/pdf.png)
Tohatsu MFS 30 — установка и обслуживание насосного корпуса: пошаговое руководство [207/319]
![Tohatsu MFS 30 Сервис Мануал онлайн [207/319] 202310](/views2/1240939/page207/bgcf.png)
6
6-29
25/30 2006
9
q
c
d
0
TB
13421342
1342
GREASE
OBMOBM
OBM

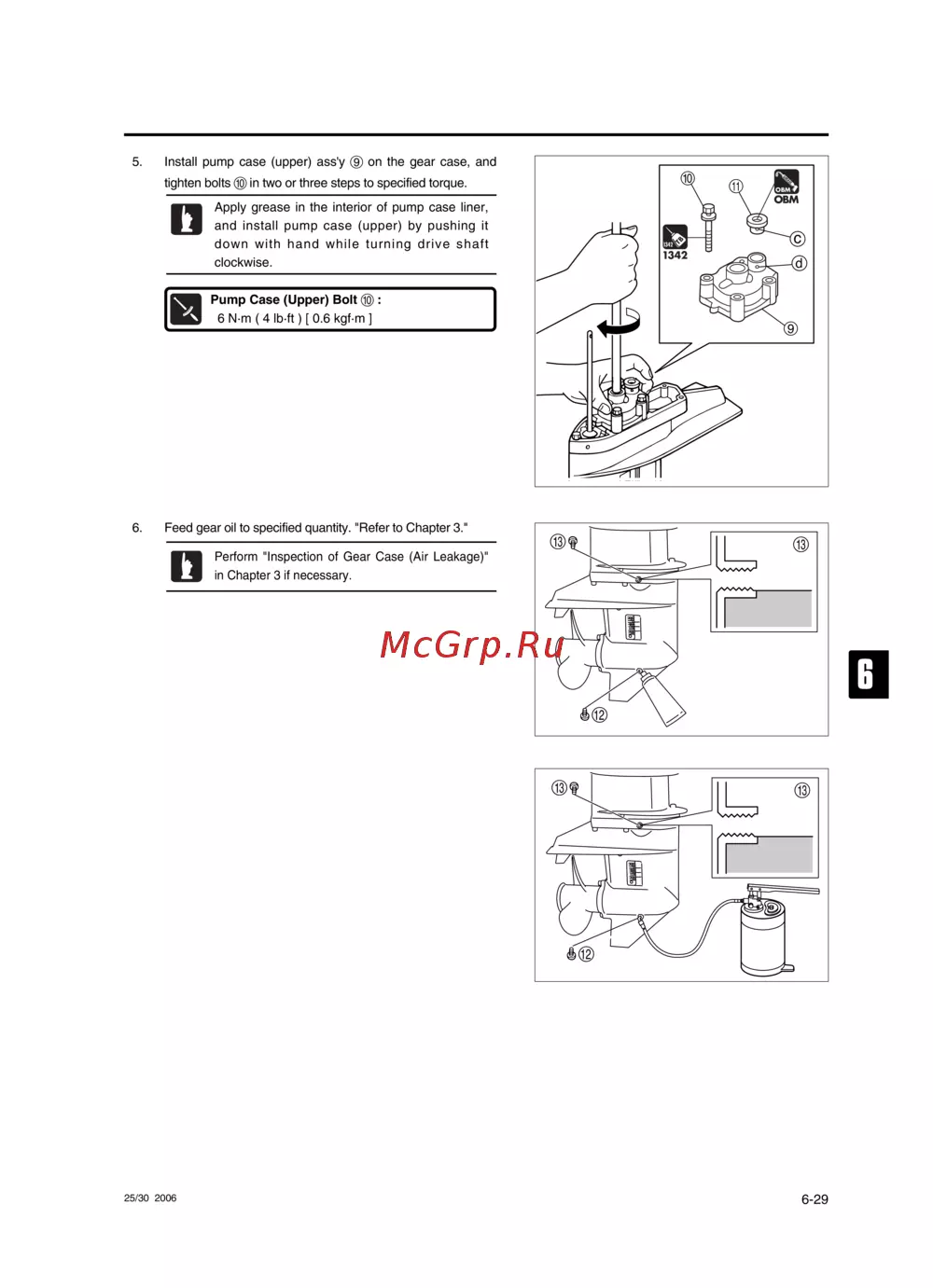

5. Install pump case (upper) ass'y 9 on the gear case, and
tighten bolts 0 in two or three steps to specified torque.
Apply grease in the interior of pump case liner,
and install pump case (upper) by pushing it
down with hand while turning drive shaft
clockwise.
e
e
w
6. Feed gear oil to specified quantity. "Refer to Chapter 3."
e
e
w
Perform "Inspection of Gear Case (Air Leakage)"
in Chapter 3 if necessary.
Pump Case (Upper) Bolt 0 :
6N·m ( 4 lb·ft ) [ 0.6 kgf·m ]
MFS25_30_ch06.qxd 06.3.9 4:54 PM ページ 29
