3-9
3
25/30 2006

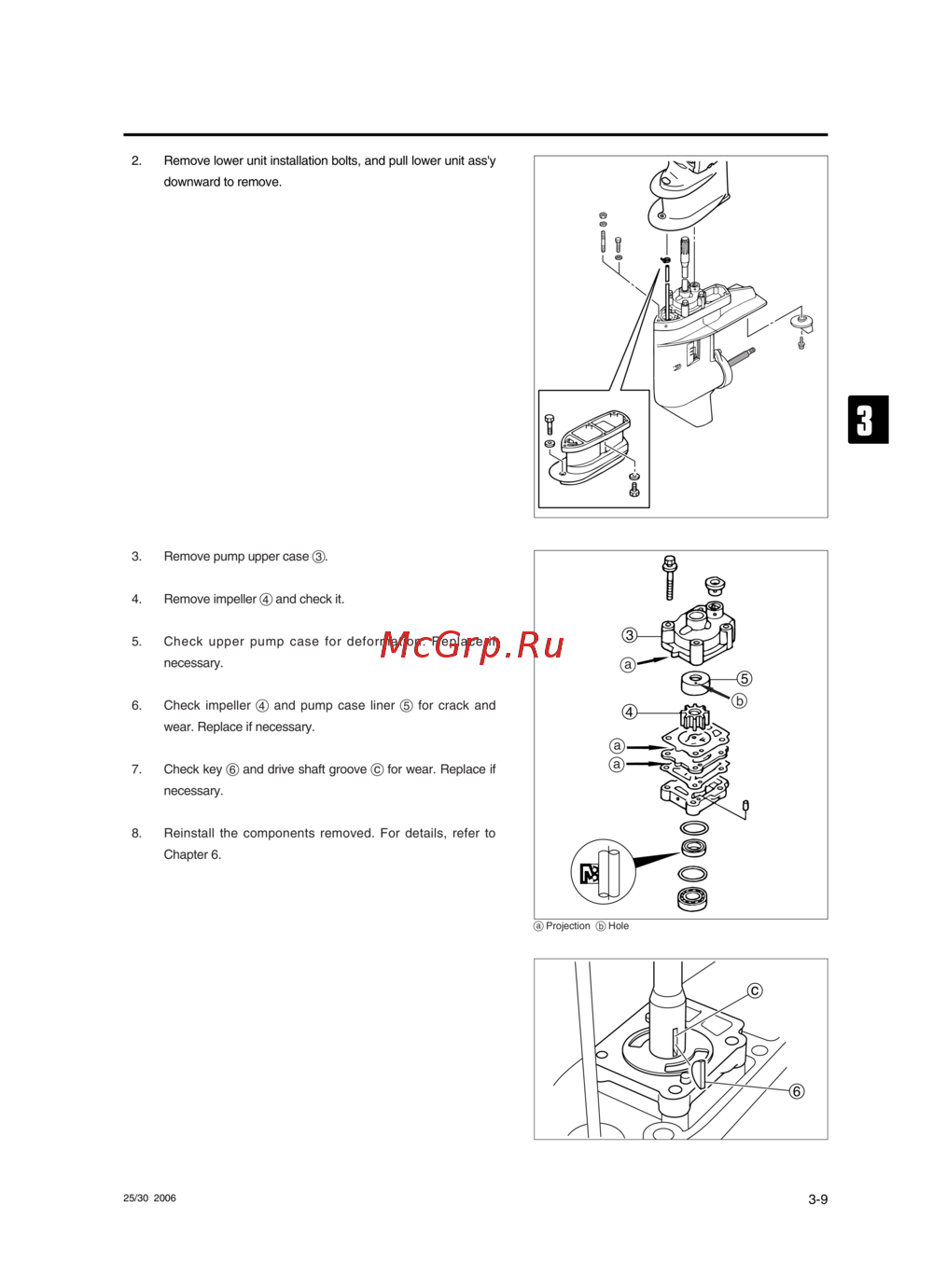

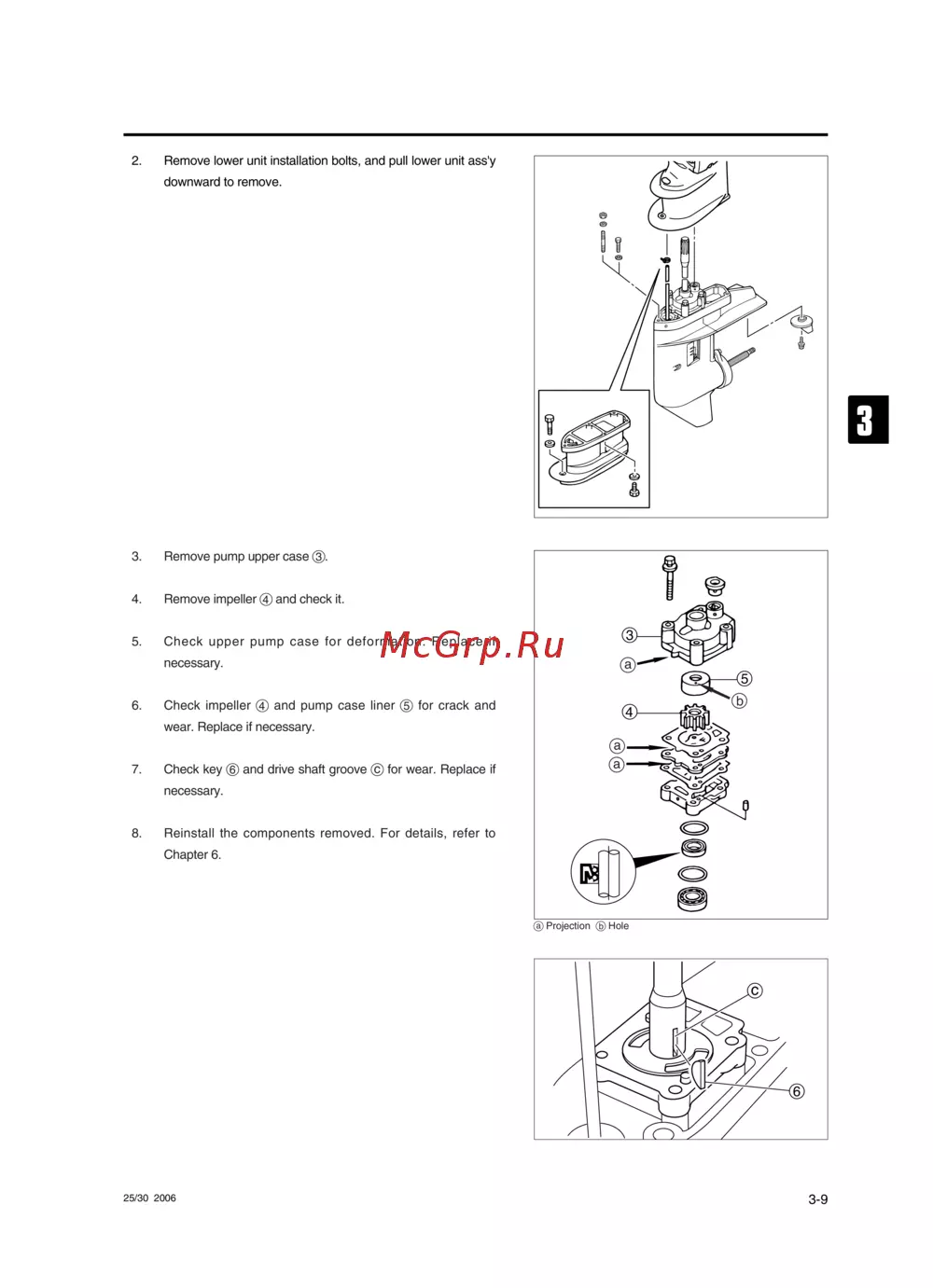

2. Remove lower unit installation bolts, and pull lower unit ass'y
downward to remove.
b
a
a
a
3
4
5
a Projection b Hole
6
c
3. Remove pump upper case 3.
4. Remove impeller 4 and check it.
5. Check upper pump case for deformation. Replace if
necessary.
6. Check impeller 4 and pump case liner 5 for crack and
wear. Replace if necessary.
7. Check key 6 and drive shaft groove c for wear. Replace if
necessary.
8. Reinstall the components removed. For details, refer to
Chapter 6.
MFS25_30_ch03.qxd 06.3.9 4:33 PM ページ 9
