Chapter 35 IPv6 Commands
Ethernet Switch CLI Reference Guide
155

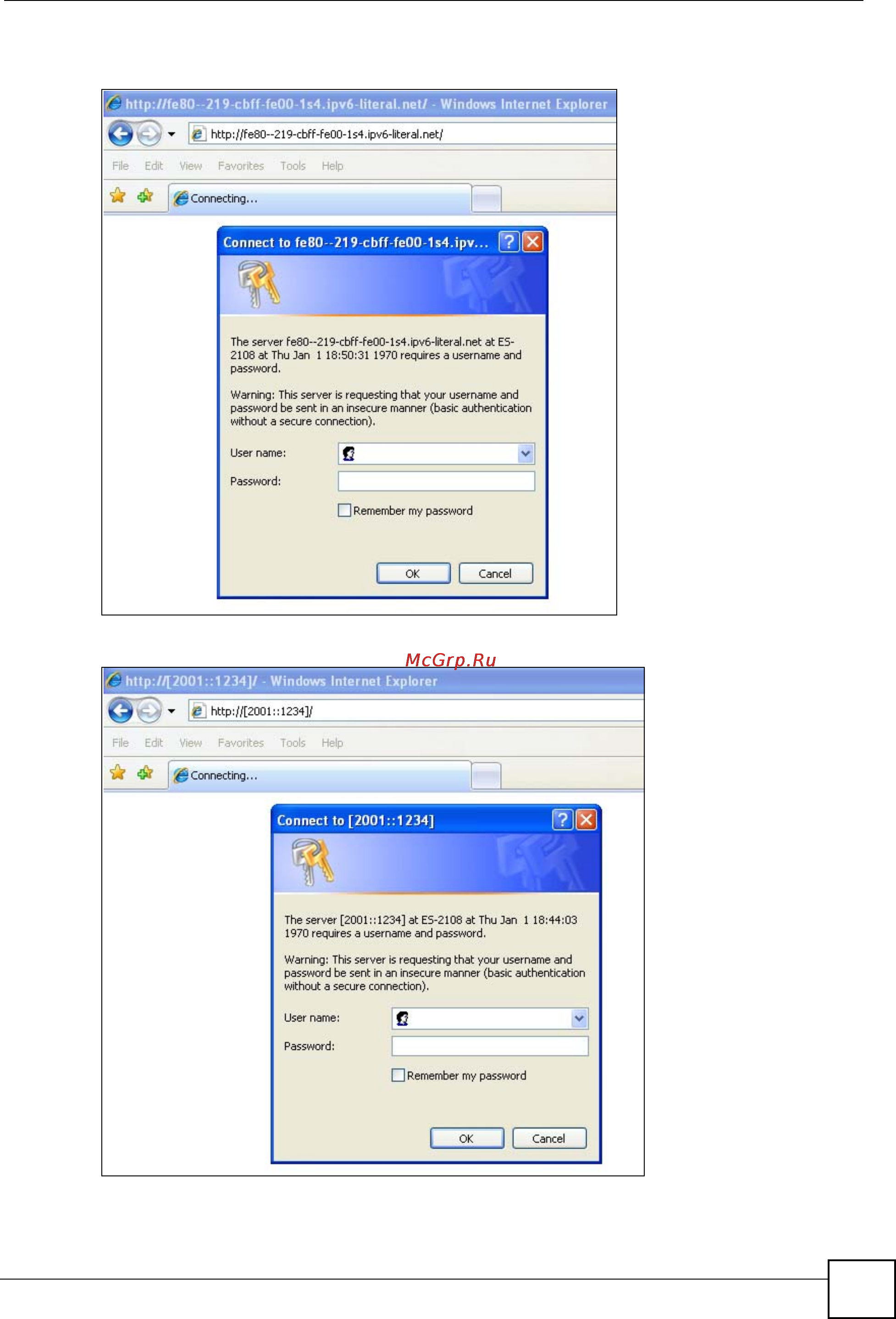

Open an Internet Explorer 7.0 browser and type http://fe80--219-cbff-fe00-
1s4.ipv6-literal.net. The login page appears.
4 Alternatively, you can use the global address to access the Switch. Type http://
[2001::1234] on your browser and the login page appears.
