2. System Function

2-6 DVP-MC operating manual

 Supporting G codes

 Supporting standard G codes and supporting dynamic download of G codes; G codes are

executed while being downloaded in order to accomplish the complicate objects processing.

 Capable to debug the G codes in the way of a single step or fixed point through CANopen

Builder software

 CANopen Builder software provides the function of preview of G codes so that user could

conveniently judge if the input G codes are correct or not.

 Supporting electronic Cam

 Supporting to call the specified cam curve through CANopen Builder software so as to edit the

cam curve.

 Supporting the application instructions for typical technology such as rotary cutting, flying shear.

Users do not program the cam curve except to input the crucial technological parameters so that

the cam curve will be reflected automatically in the inner of the instruction. And thus it will

reduce a lot of work load for user to develop the project.

 Supporting E-gear

 Program capacity

 Providing max. 1M bytes for the program space, max. 12K Fbs program editable

 Max. 6000 rows of G codes storable.

 Max. 16 electronic cam curves editable and max. 2048 key points storable.

2.1.3. System Extension

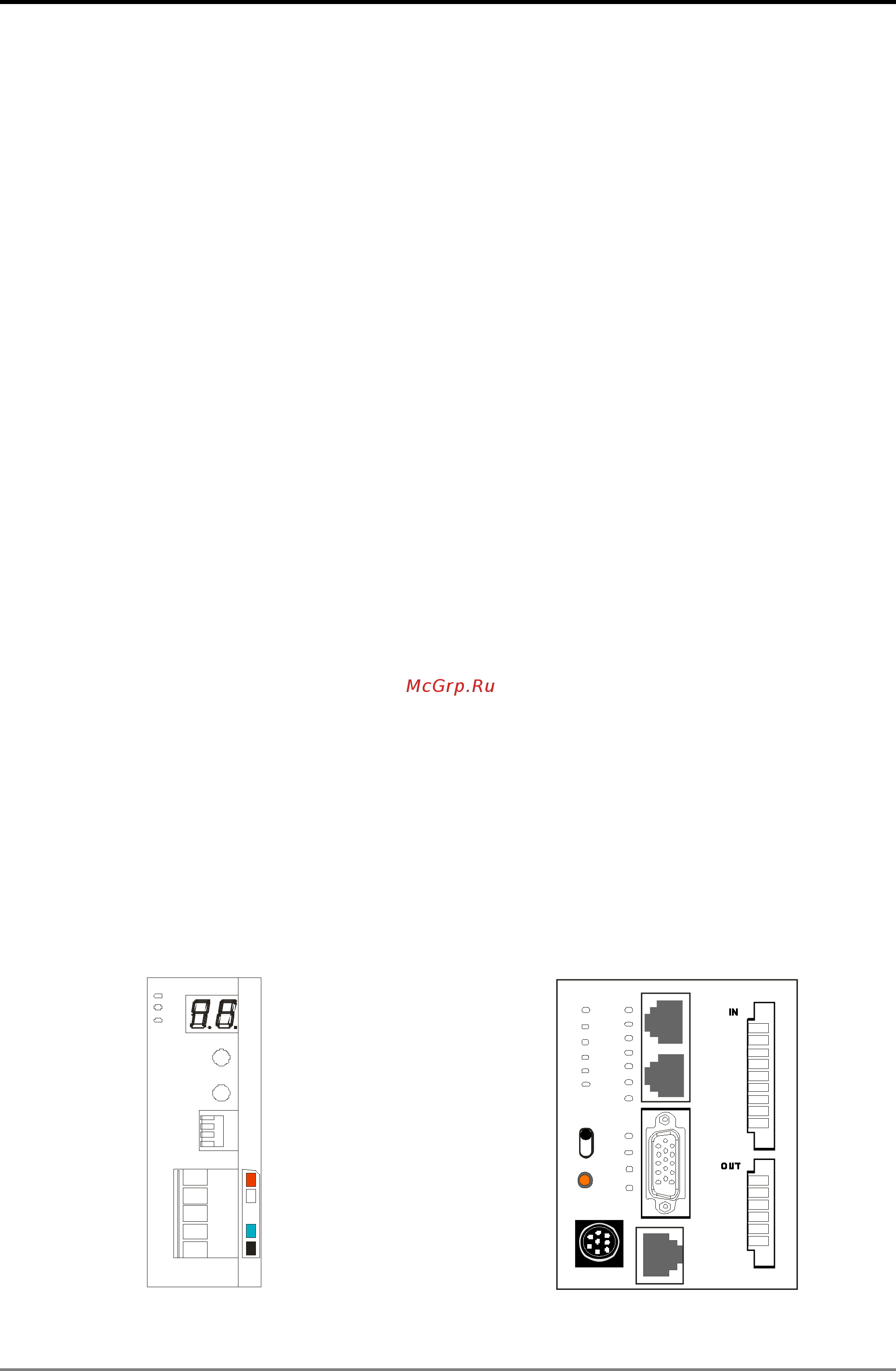

DVP10MC11T can be connected with extension modules on both its left side and right side.

 The extension module connected to the left side of DVP10MC11T

DVP10MC11T can be connected with CANopen, DeviceNet master and high-speed modules with analog

quantity like DVP04AD-SL on its left side. Max. 7 high-speed modules are allowed to connect to the left side

of DVP10MC11T.

MC motion module is the first extension module of the left side of PLC module inside DVP10MC11T. And thus

the first extension module of the left side of DVP10MC11T is the second extension module of PLC module.

For example, the output mapping area starts from D6282 if DVPCOPM-SL is connected to the left side of SV

CPU and the output mapping area starts from D6782 if DVPCOPM-SL is connected to the left side of

DVP10MC11T.

DVPDNET

DVP10MC

S/S

DeviceNet/CANopen master and

the high-speed AIAO modules

like DVP04AD-SL

......
