3. System Installation
3-8 DVP-MC operating manual
3.2.4. Connecting the Extension Module (DVP16SP11T) to the Right Side of
DVP10MC11T

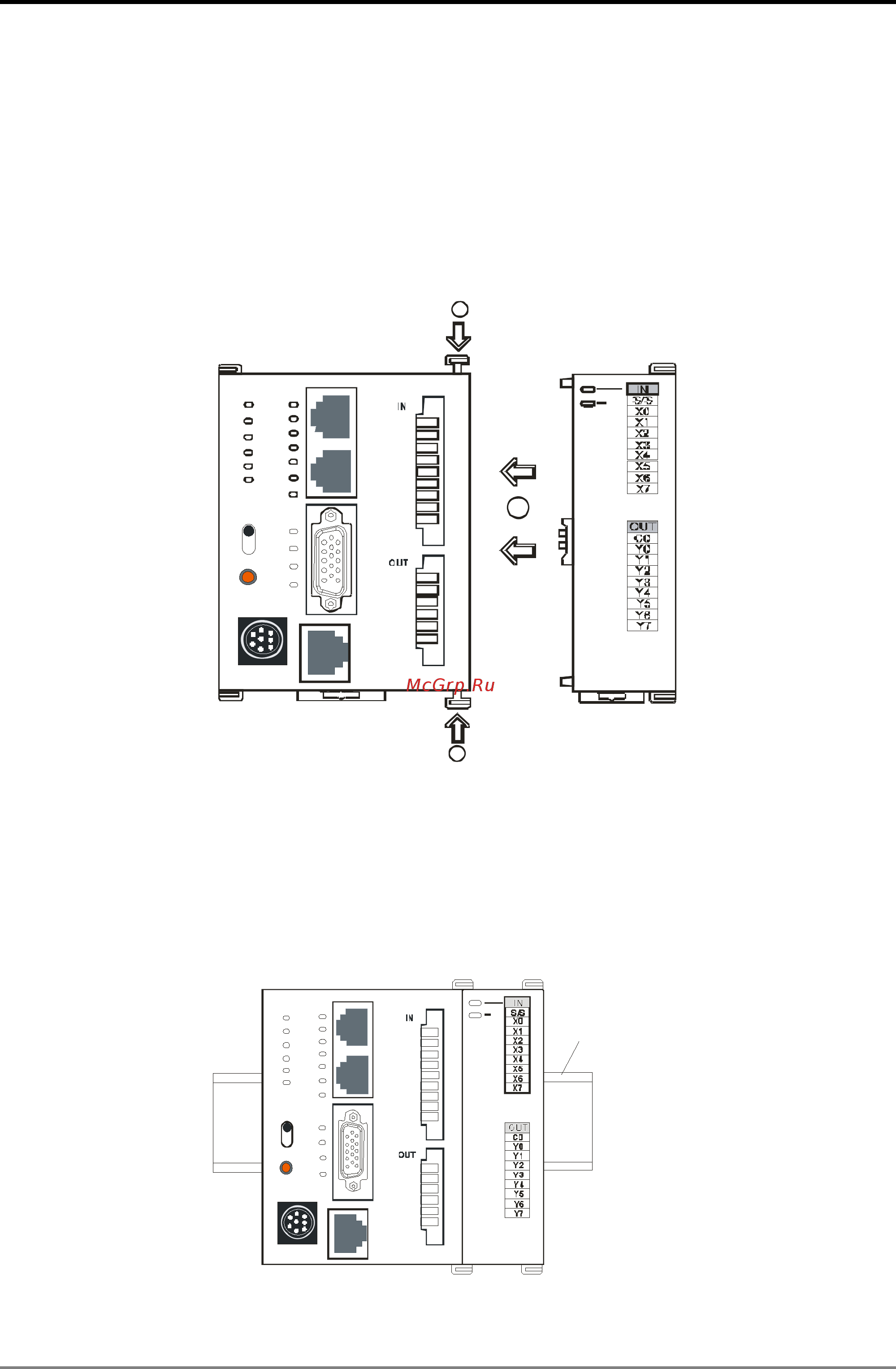

1. Connecting DVP16SP11T to DVP10MC11T;
Open the extension module clips on the top right and bottom right of DVP10MC11T and
install DVP16SP11T along four mounting holes in the four angles of DVP10MC11T as figure
3.2.10.
Press the clips on the upper right and bottom right of DVP10MC11T to fix the module tightly
and ensure that their contact is normal.
DVP10MC
S/S
I0
I1
I2
I3
I4
I5
I6
I7
UP
ZP
Q0
Q1
Q2
Q3
D
V
P
-
1
6
S
P
1
2
2
Figure 3.2.10
2. Installing DVP10MC11T and DVP16SP11T in DIN Rail
Use standard 35mm DIN rail;
Open DIN rail clips of DVP10MC11T and DVP16SP11T and then insert the two modules in DIN
rail.
Press the DIN rail clips into DVP10MC11T and DVP16SP11T to fix the two modules in DIN rail as
figure below.
D
V
P
-
1
6
S
P
DVP10MC
S/S
I0
I1
I2
I3
I4
I5
I6
I7
UP
ZP
Q0
Q1
Q2
Q3
35mm DIN Rail
Figure 3.2.11
