4. Motion Control Instructions

4-12 DVP-MC operating manual



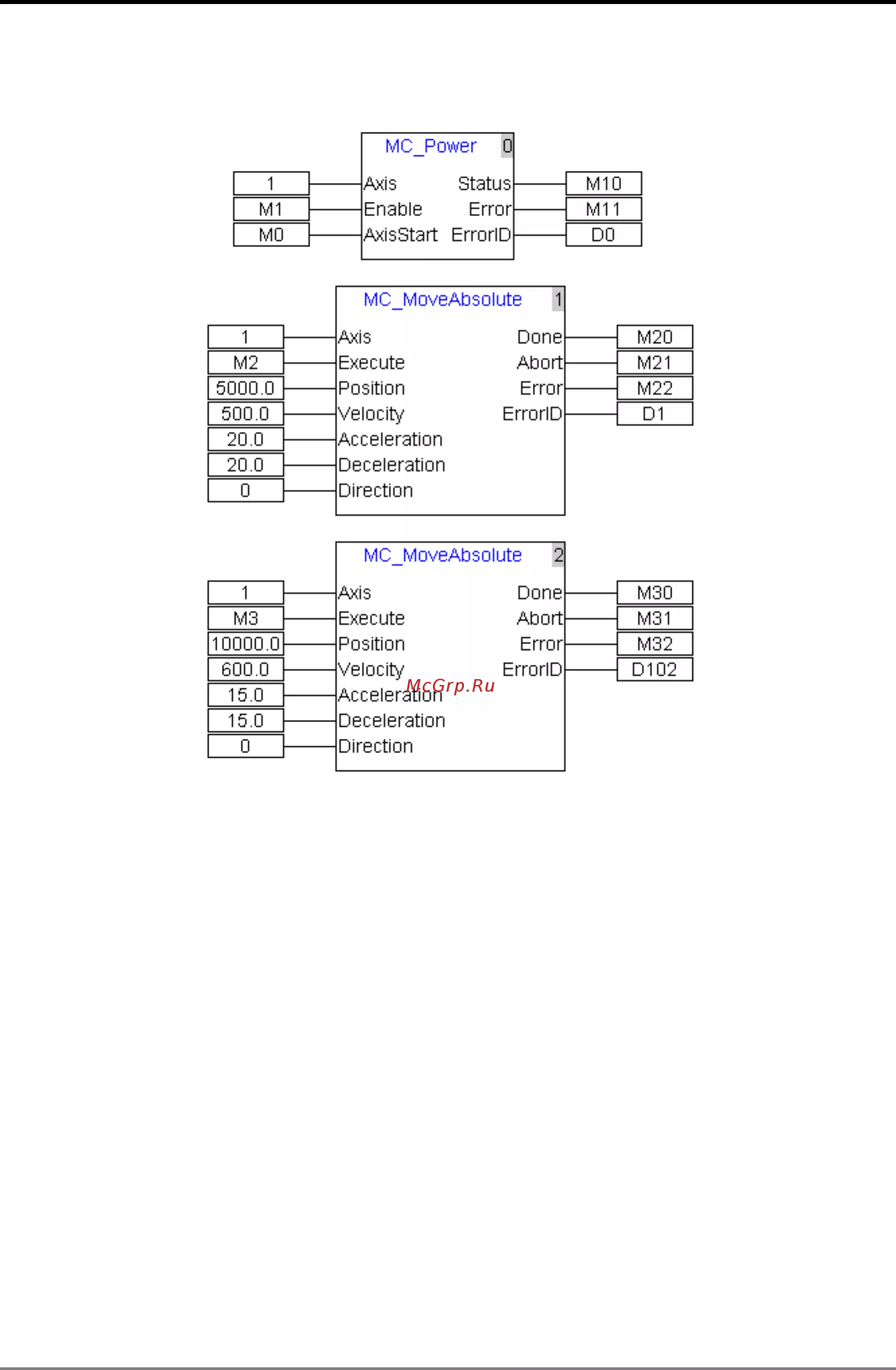

Program Example 1

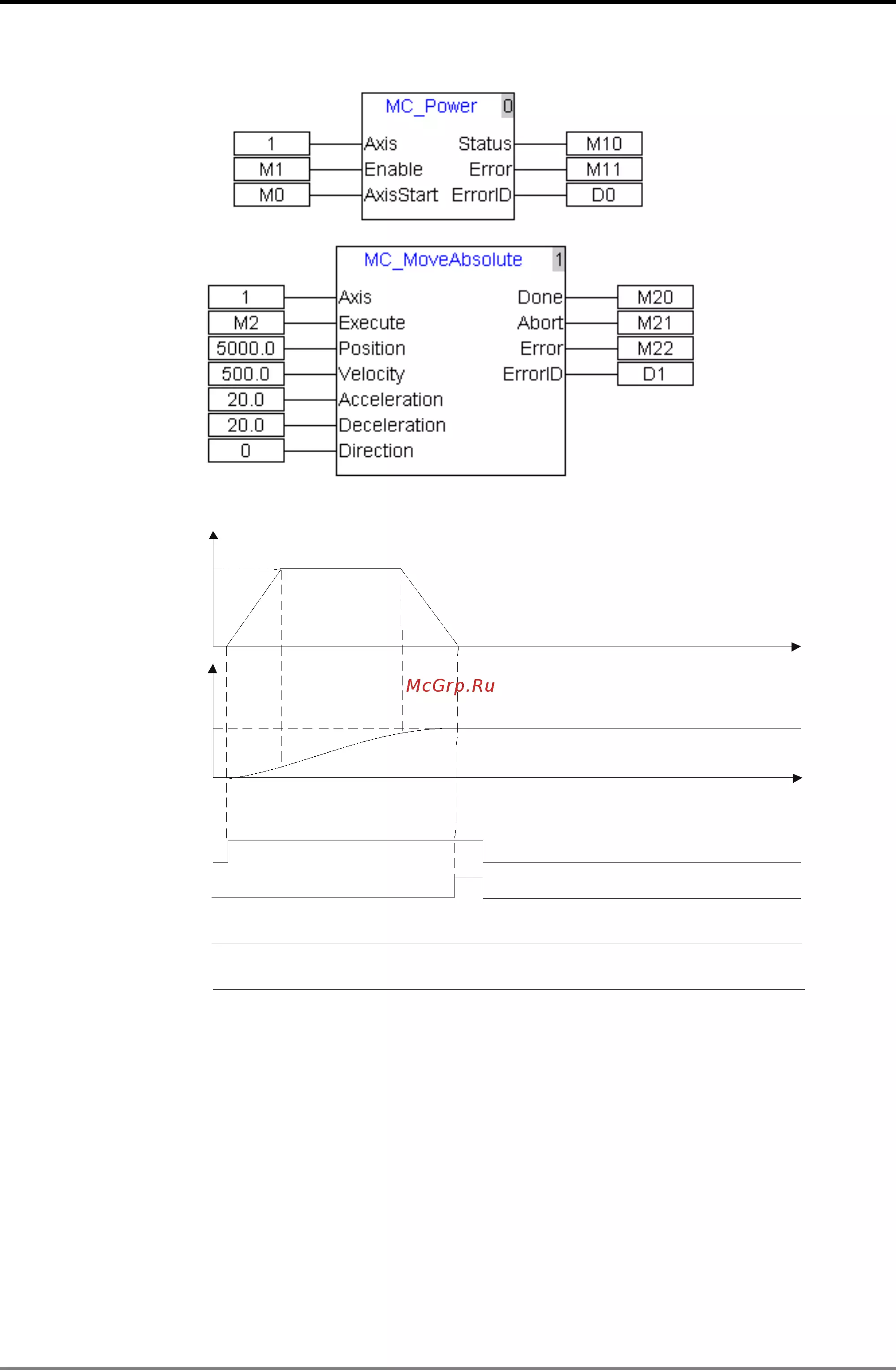

Motion diagram as below:

Target position

Position

Velocity

500

5000

M2(Execute)

M20(Done)

M21(Abort)

M22(Error)

Time

 When M2 is Off  On, motion controller starts to control servo motor rotation. When the servo reaches

target position, M20 of "Done" will be OffOn.

 When M2 is On  Off, M20 of "Done" will be reset.

 After reaching the target position, as M2 turns OffOn again, the servo motor will not move since it has

reached the target position.
