Appendix F

F-4 DVP-MC Operating Manual

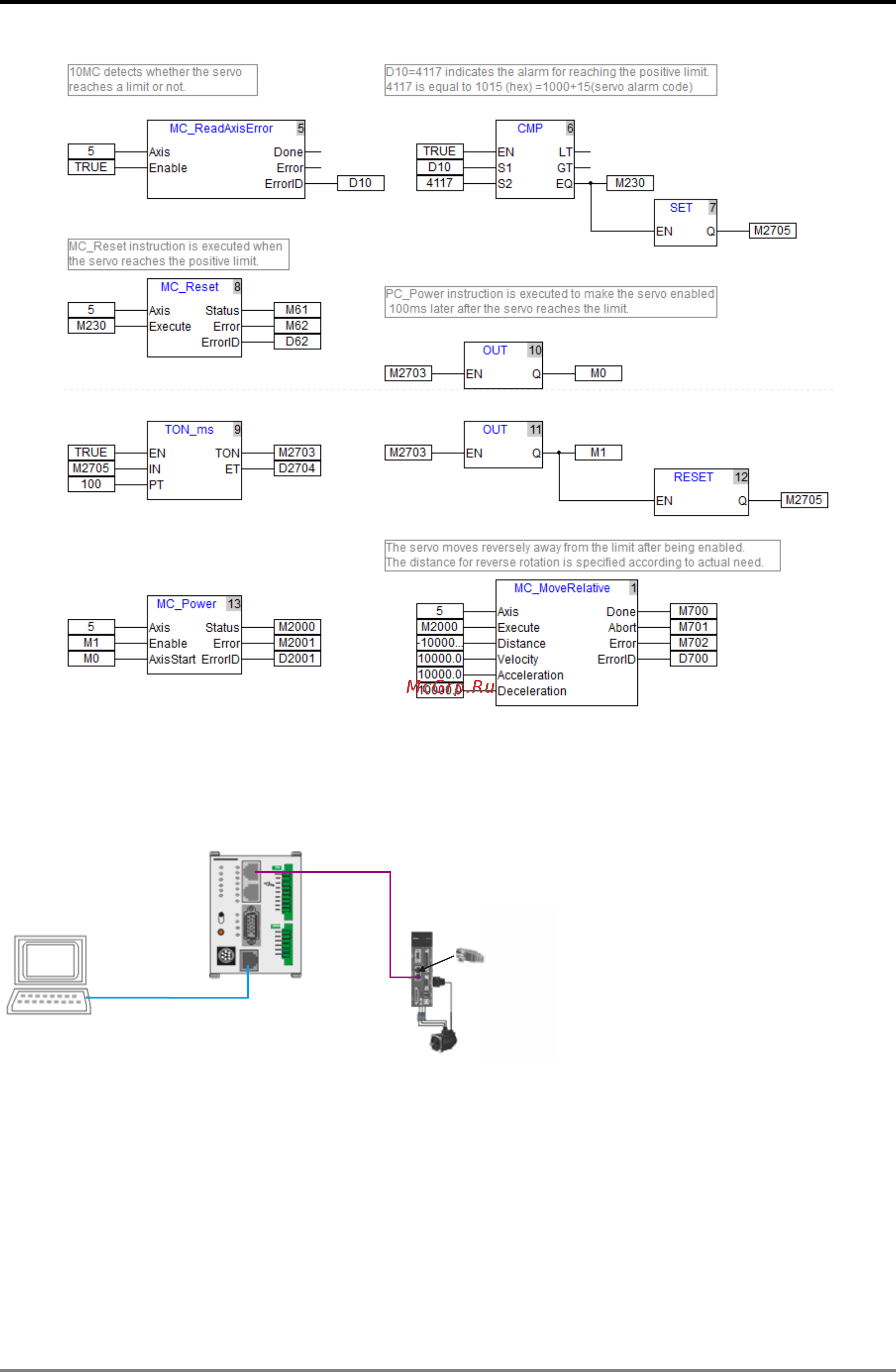

Question 6: How does DVP10MC11T match the absolute servo in use?

Answer:

Hardware connection

Ethernet

CANopen

DVP10MC11T

TAP-TR01

A2 servo drive

Firmware version:

Firmware version of 10MC: No limit.

Firmware version of the servo: above 1.045_24 (Major version_minor version)
