4. Motion Control Instruction

4-164 DVP-MC operating manual

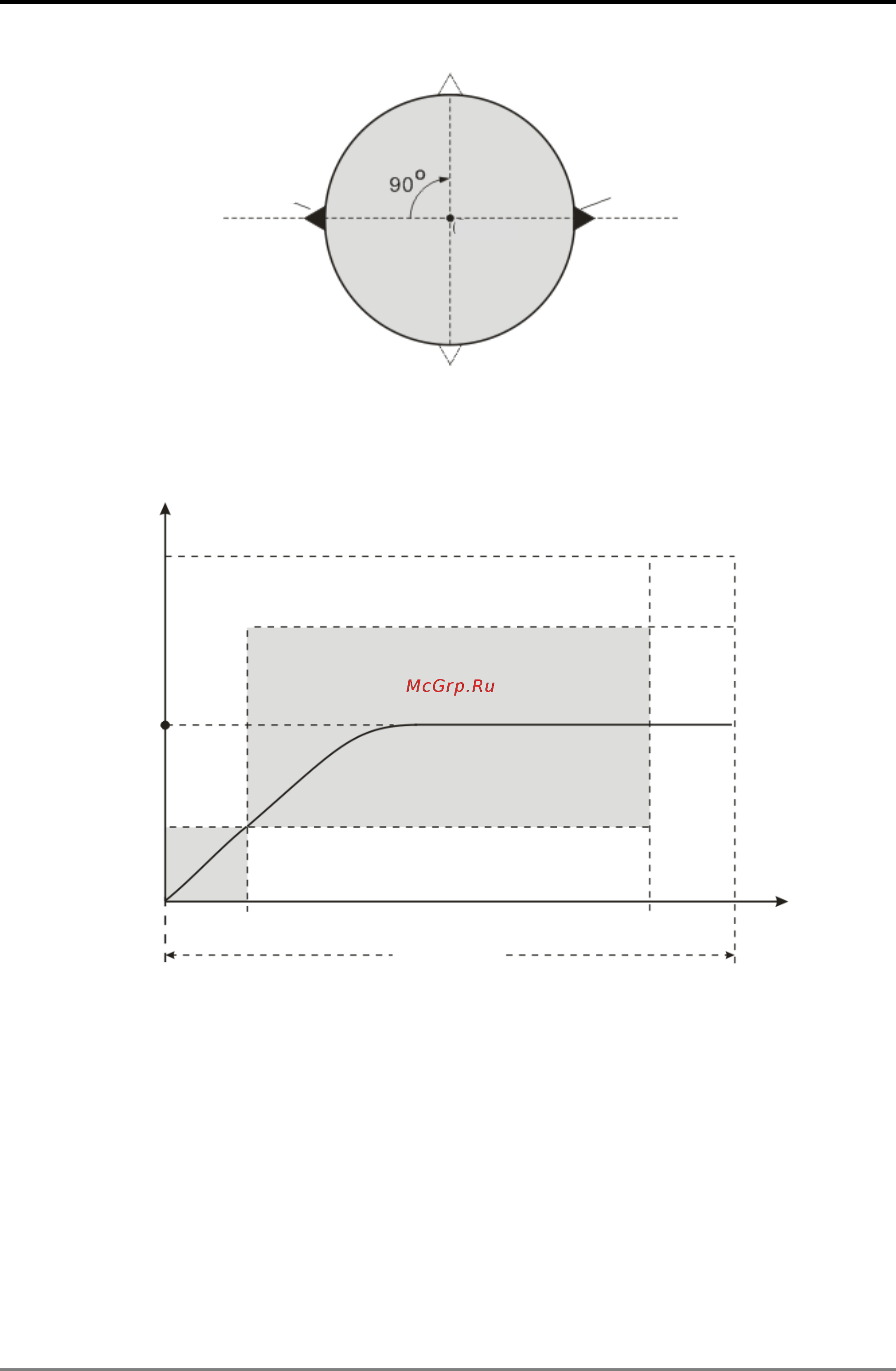

 The end curve

It is the rotary cut curve when the rotary cut function is broken away.

After the instruction “APF_RotaryCut_Out” is started up, the system will use the curve to make the rotary cut

axis break away from the rotary cut state. Eventually, the knife stops at the end position as shown in the

figure above.

The end position is based on the rotary axis. For the single knife, the end position is the entry position and it

is also right above the rotary cut roller.

Rotarycut axis

Feed

axis

Start of sync area

End of sync area

Adjustment area

Sync area

End point

Sync

area

Cutting length

Cutting

position

Knife 1

horizontal line

Knife 2

Cutting

position
