4. Motion Control Instructions
DVP-MC operating manual 4-29

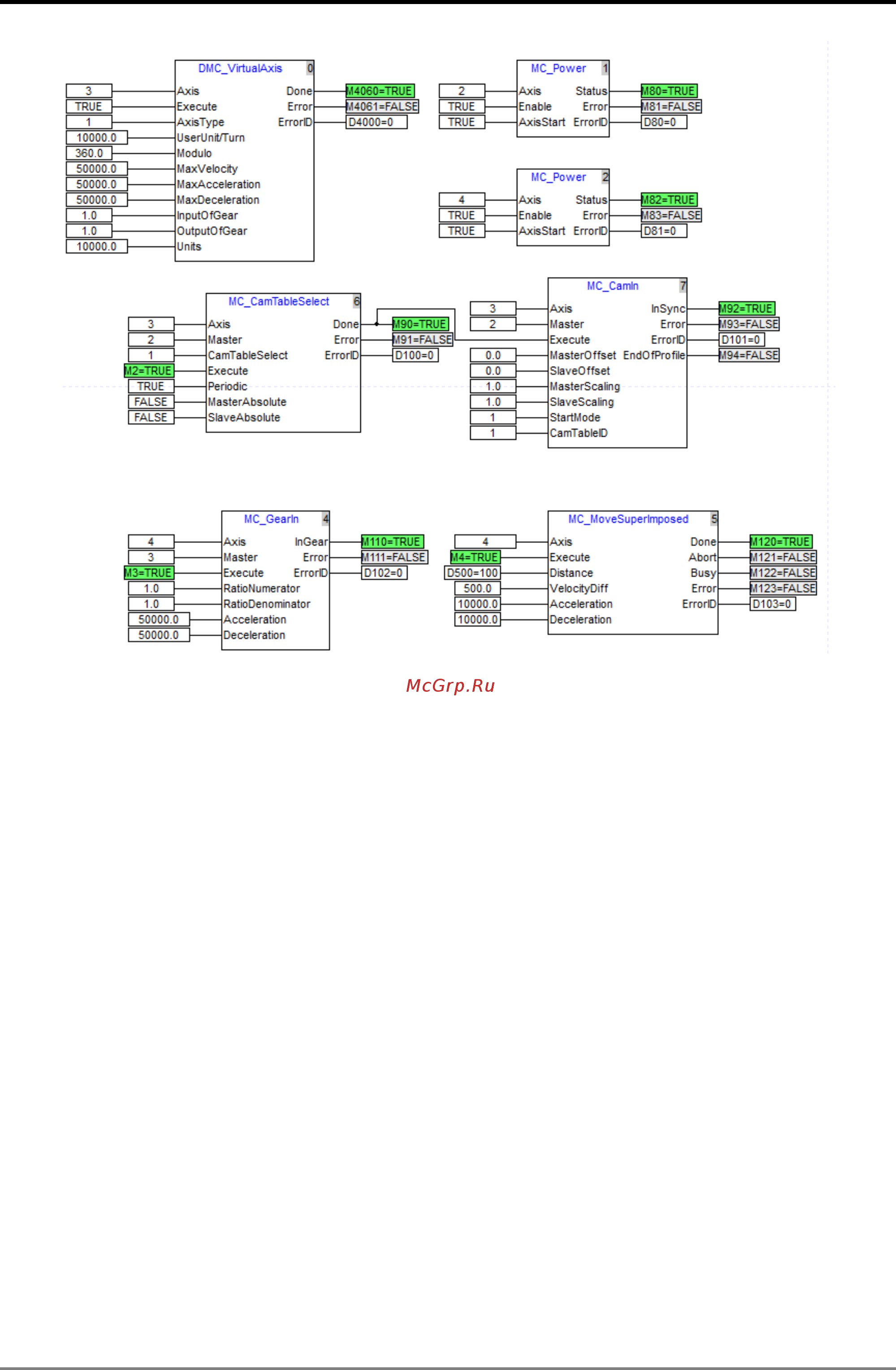

After DVP10MC11T makes the connection with all axes, axis 2 and axis 4 are enabled and virtual axis 3
is built.
The e-cam relationship is established between the real axis 2 and virtual axis 3 as M2 changes from
OFF to ON. And the e-gear relationship between axis 3 and axis 4 is established with the gear rate of
1:1 as M3 changes from OFF to ON.
The position of axis 4 is modified via MC_MoveSuperImposed as M4 changes from OFF to ON.
