3. System Installation

3-4 DVP-MC operating manual

 Delta power module DVPPS02/24VDC ( It is recommended to adopt the power module DVPPS02 for

DVP10MC11T);

 DVP10MC11T body;

 Grounding

 Safety circuit

 Wiring of input and output points

Wiring of input circuit

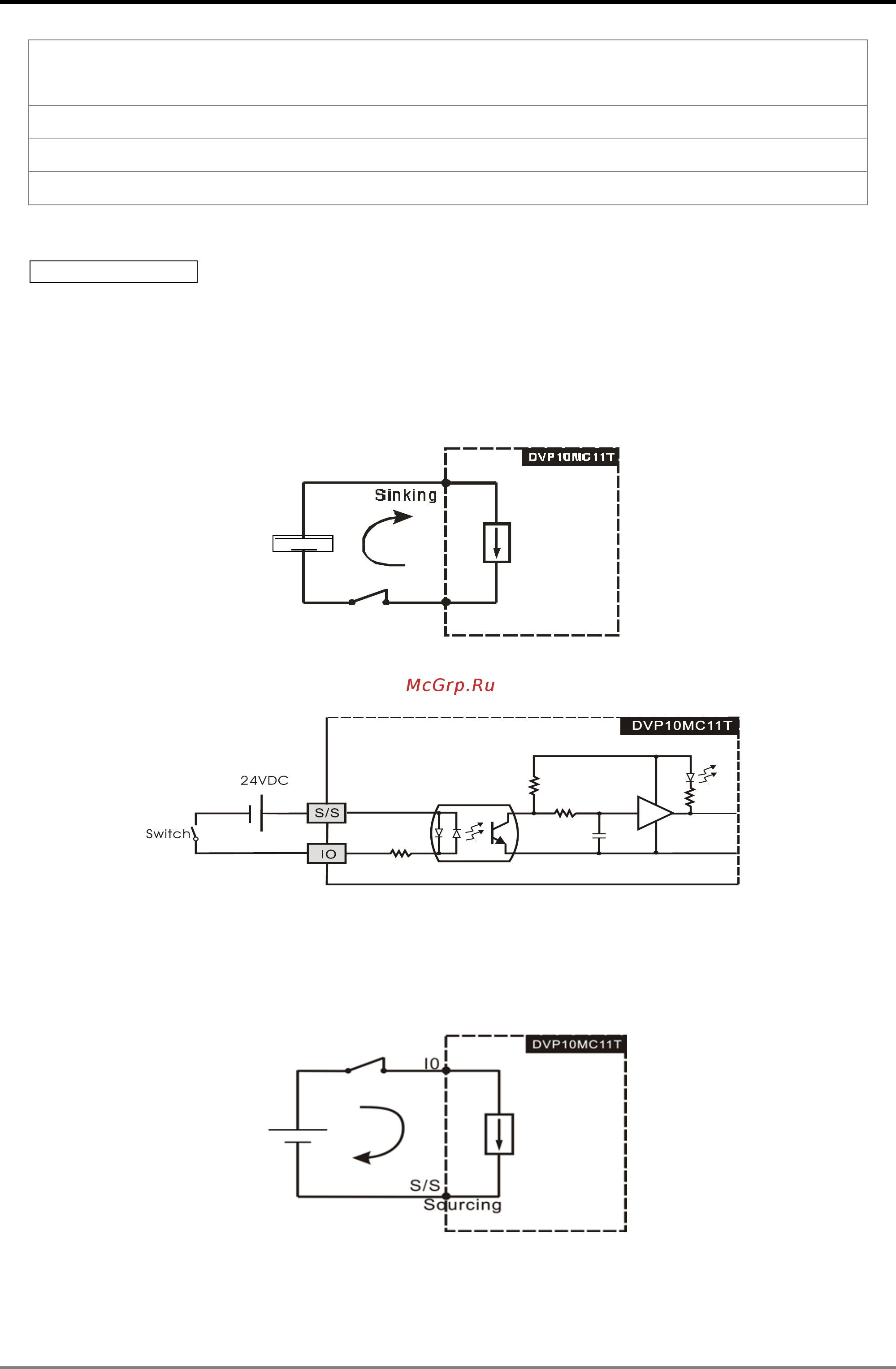

The input signal of input point is direct-current power input in two ways of wiring: Sink mode and Source

mode. The following is the introduction of the two ways.

 Sink mode

The feature of Sink mode is that the current flows to the common terminal S/S. See the simplified model

as figure 3.2.2.

S/ S

Figure 3.2.2

The relevant circuit for wiring is shown as figure 3.2.3

Figure 3.2.3

 Source mode

The feature of Source mode is that the current flows out from the common terminal S/S. See the simplified

model as figure 3.2.4

Figure 3.2.4
