4. Motion Control Instructions

4-230 DVP-MC operating manual



Program example 3: DNC_LIN (G1) in absolute mode

The initial positions of axis X, Y and Z are all 20,000 units and the axis parameters are all default.



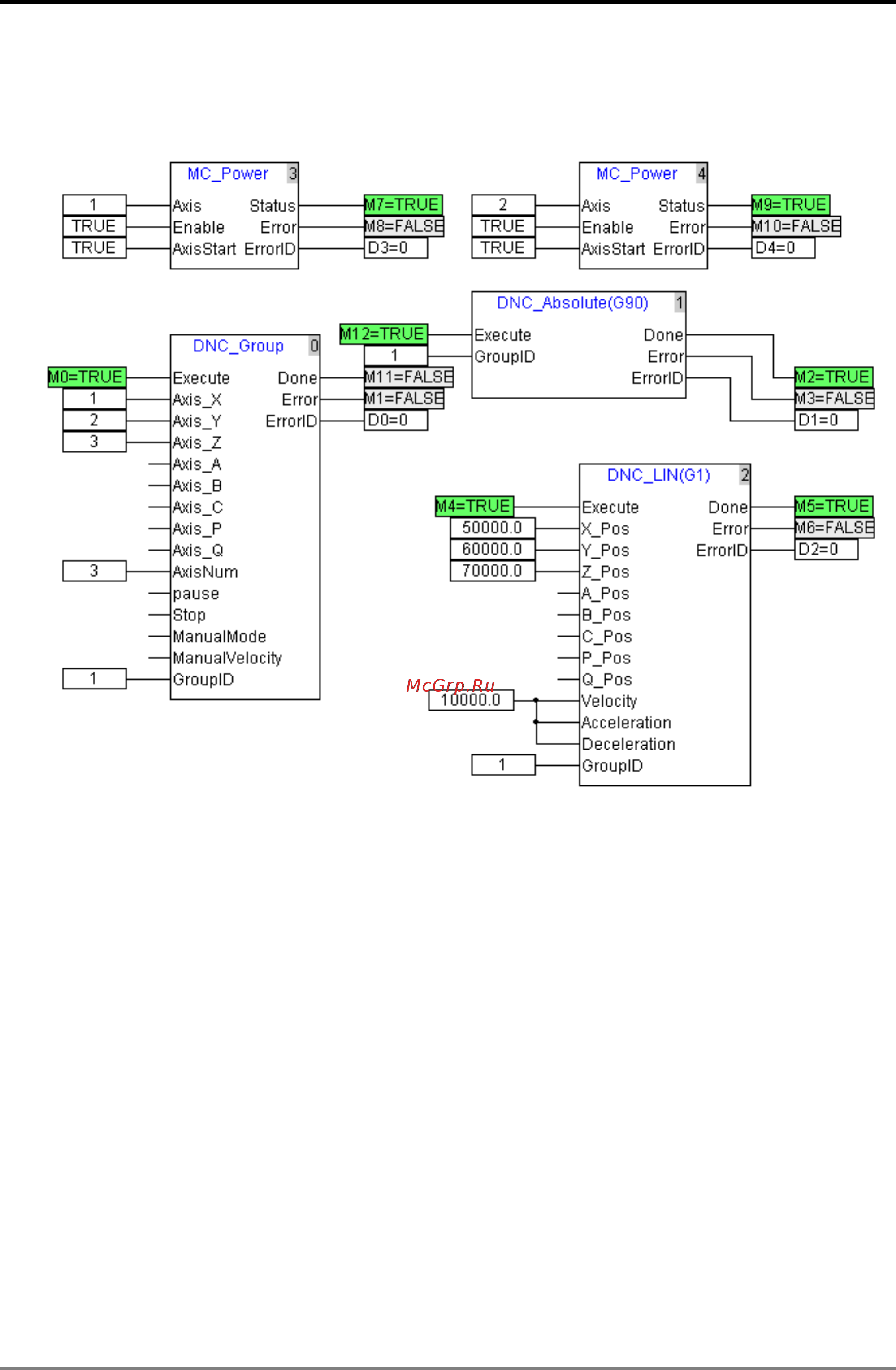

The program to be executed:



Program explanation:



After the connection between DVP10MC11T and servo axis is made successfully, M7 and

M9 are on. After M7 is on, the servo axis of number 1 Servo On; after M9 is on, the servo

axis of number 2 Servo On.



After M0 is on, DNC_Group instruction starts to construct the coordinate system.



After M12 is on, each servo axis is switched to the absolute positioning mode. When M2 is

on, each axis enters the absolute positioning mode.



After M4 is on, DNC_ LIN (G1) starts to be executed. When M5 is on, the execution of

DNC_LIN (G1) is finished.
