4. Motion Control Instructions

DVP-MC operating manual 4-135

4.6.32. MOVF

API

MOVF

Move 16-bit integer to multiple registers

Controller

159

10MC11T

Explanation of the instruction:

MOVF is used for sending one 16-bit integer to multiple target registers.

When EN is on, the content of S1 is sent to the zone with D as the starting register and the data length is

specified by S2. When the data length S2 is larger than maximum 64, it is counted as 64. And the part above

64 is invalid.

Explanation of input and output parameter of the instruction:

Parameter

name

Explanation

Data

type

Available

device

EN “MOVF” is executed as “EN” turns on. BOOL M,I,Q, constant

S1 The source where the data comes from. INT Constant,D

The length of the transmitted zone, the max value for S2

is 64.

UINT Constant,D

D The starting one of the target registers INT D

Note: This instruction can be used for multi-point transmission of 16-bit integer only.



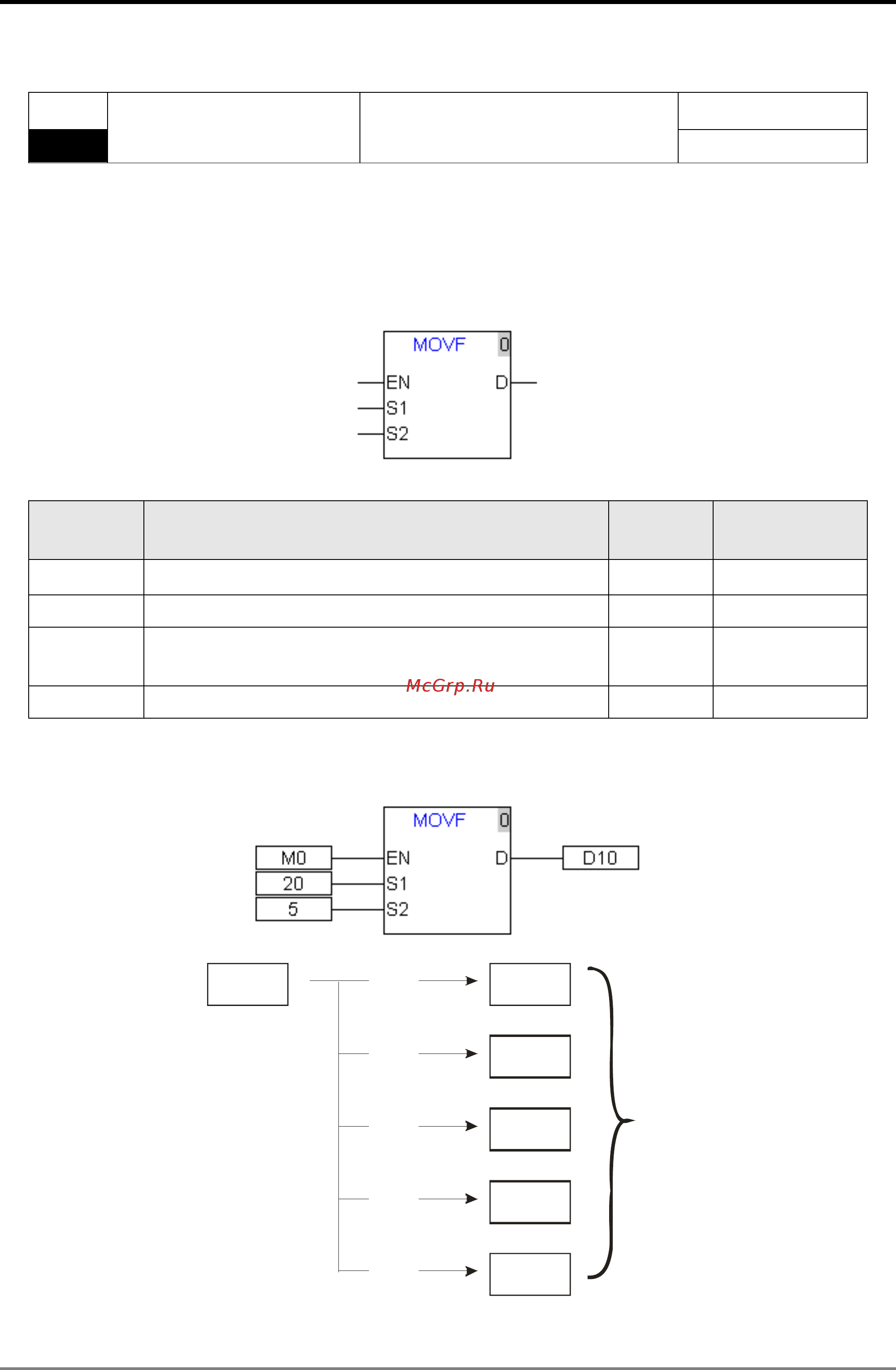

Program example

D10

D11

D12

D13

D14

S2=5
