Delta Electronics DVP10MC11T [244/375] Motion control instructions

4. Motion Control Instructions

4-200 DVP-MC operating manual

N1 G2 X200 Y200 Z200 R-200

N0 G0 X0 Y0 Z0

N1 G2 X200 Y200 Z200 R200

The motion path is a major arc while the first G2 code is executed and it is a minor arc while the

second G2 code is executed.

（）

200,200

200



Example 7

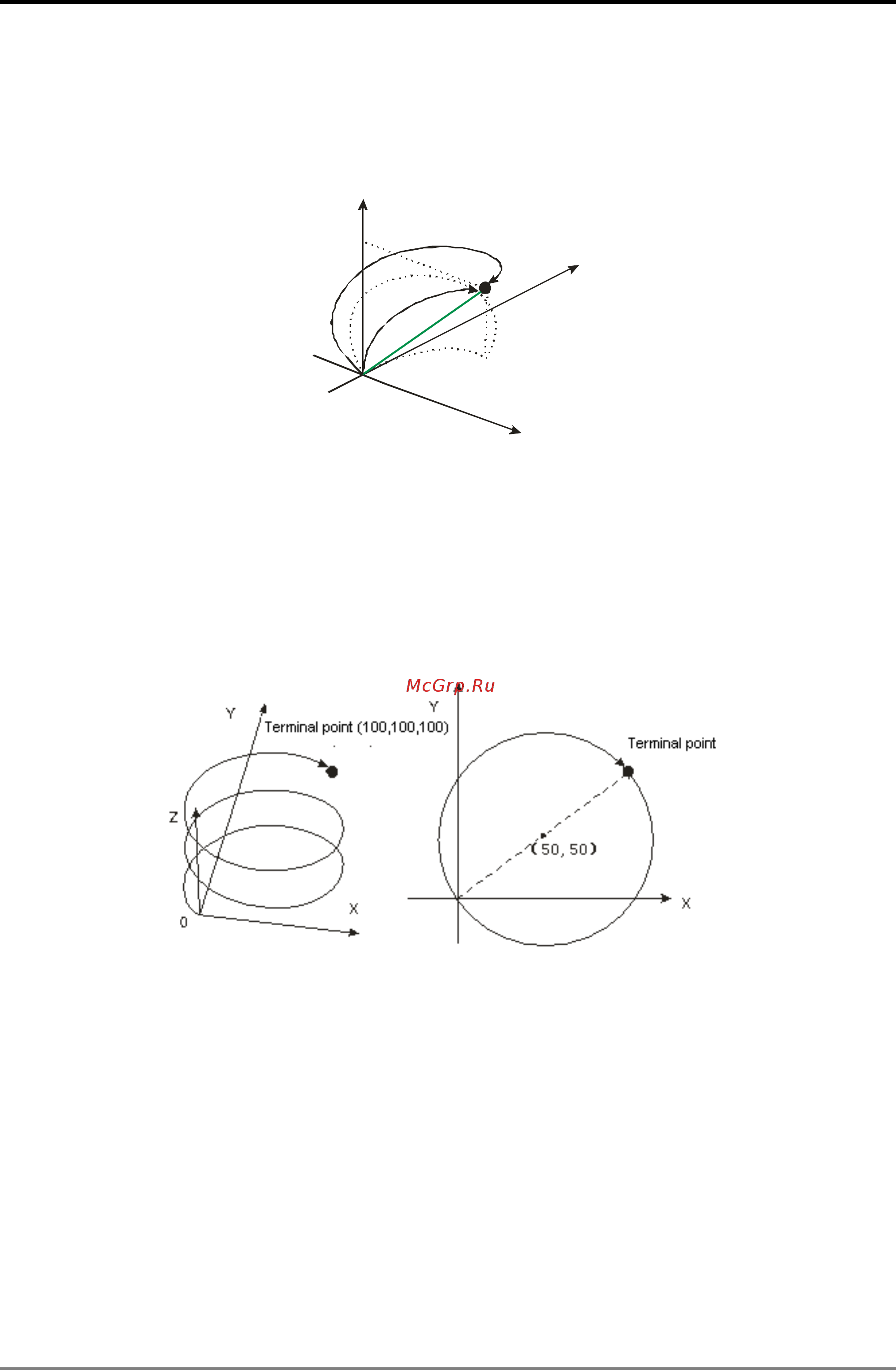

The helical interpolation with T and the center of a circle specified by XY plane (Current position: 0)

The G codes to be executed:

N1 G2 X100 Y100 Z100 I50 J50 T2

Instruction explanation: The motion path is a helical curve and the projection on XY plane is a full circle

with the center of a circle (50, 50).
