4. Motion Control Instructions
DVP-MC operating manual 4-45

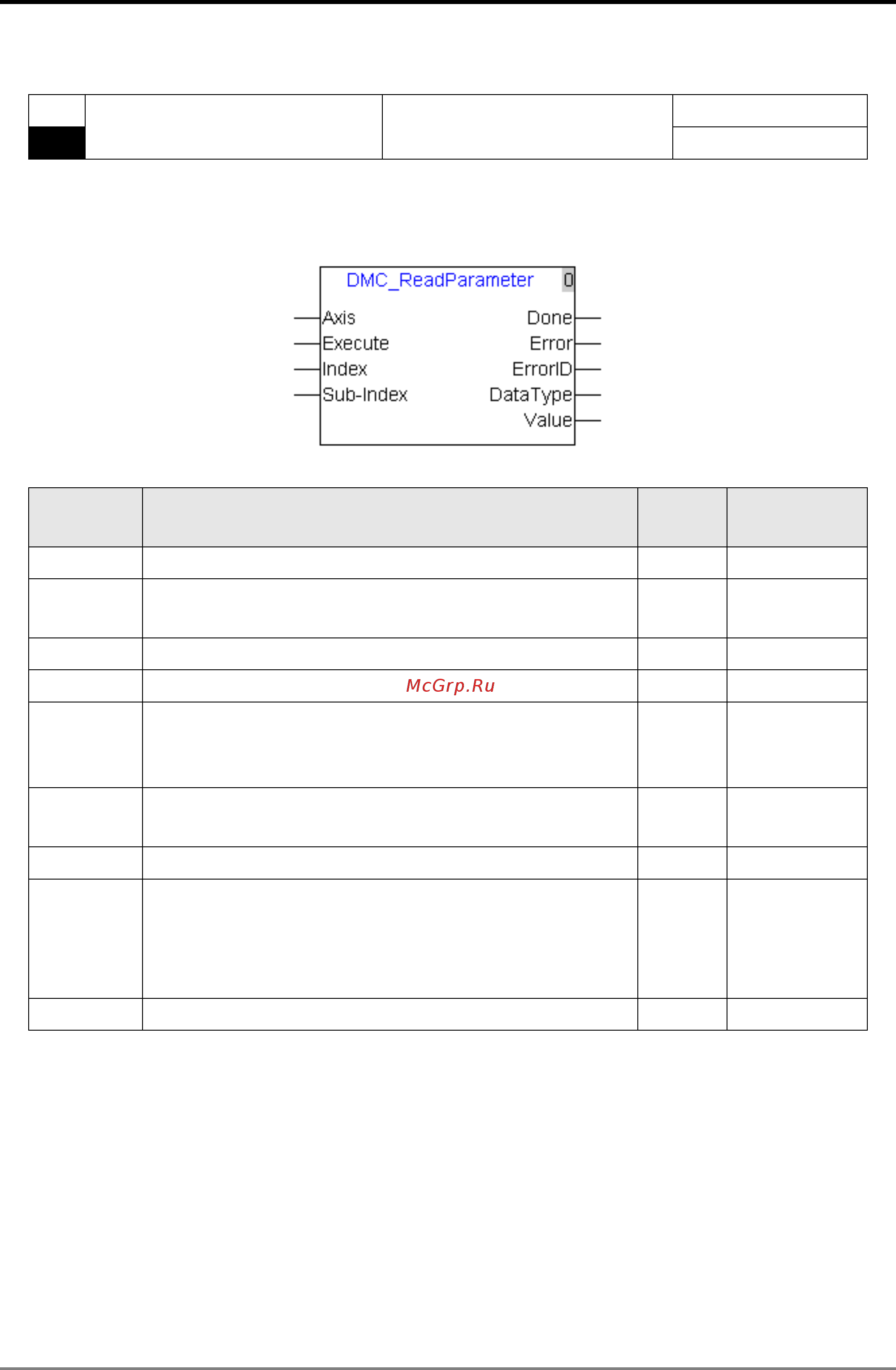

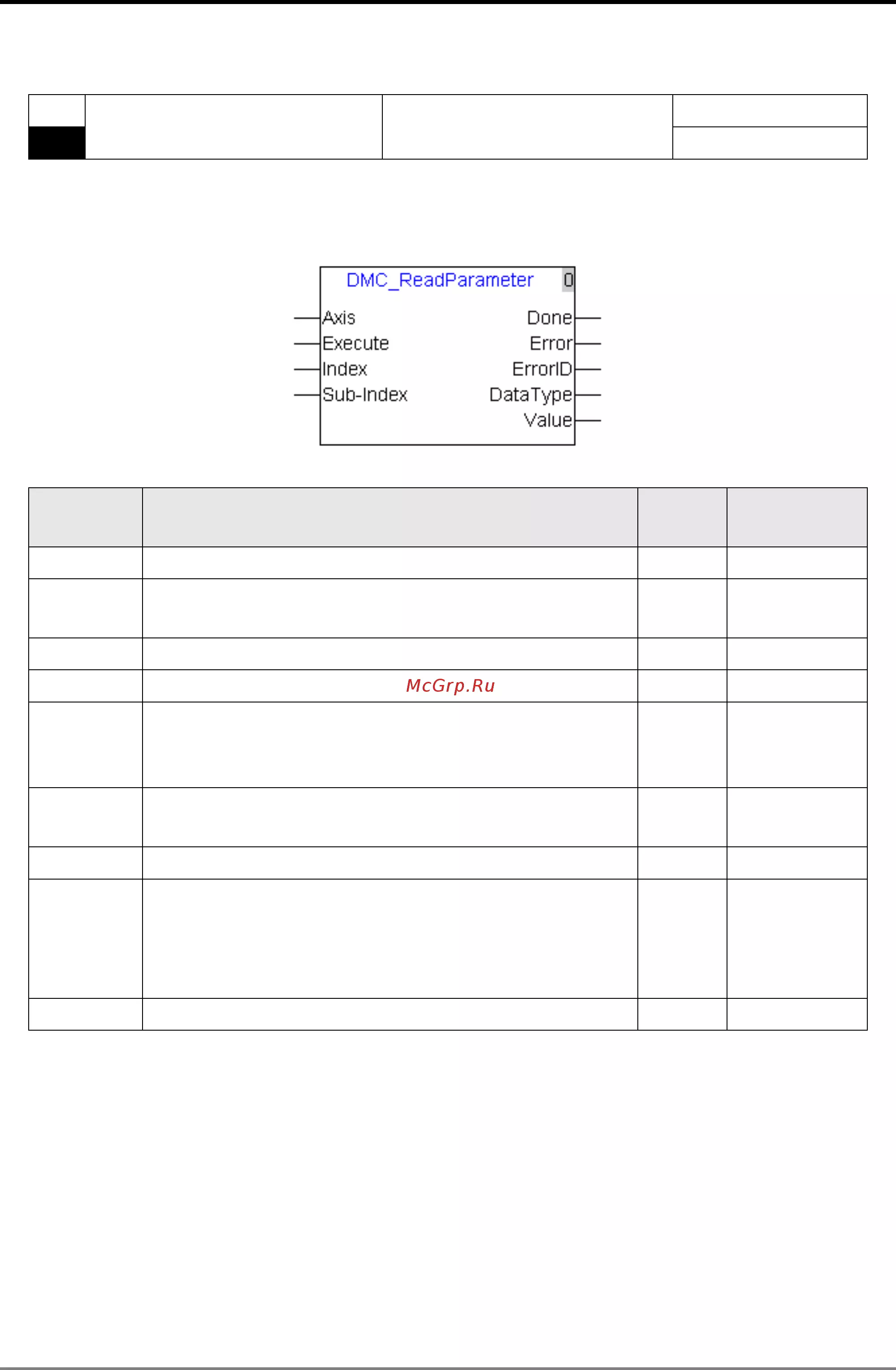

4.4.13. DMC_ReadParameter
API
DMC_ReadParameter
Read parameters
Controller
13
10MC11T
Explanation of the Instruction:
DMC_ReadParameter is applied to read the parameter value of the servo axis. User could specify the index
and sub-index of the parameter desired to be read.
Explanation of input and output parameter of the instruction:
Parameter
name
Explanation
Data
type
Available
device
Axis The node address of servo drive UINT Constant, D
Execute
This instruction is executed when” Execute” turns Off –>
On.
BOOL
M,I,Q,
Constant
Index To read the index of the parameter UINT Constant, D
Sub-Index To to read the sub-index of the parameter UINT Constant, D
Done
When reading the parameter content is finished,
"Done" turns on; when “execute” turn on -> off, "Done" is
reset.
BOOL M,Q
Error
If any error is detected, "Error" turns on; when "Execute"
turns on -> off, "Error" is reset.
BOOL M,Q
ErrorID Error code. Please refer to section 5.3. UINT D
Data Type
To read the data type of the parameter.
1: Byte
2: word
4: Double Word.
UINT D
Value The already read parameter value UDINT D
Notes:
1. The data type of D device is identical to that of the read parameter when “Value” uses D device and
the touch panel is used to monitor the parameter value.
2. How to get the corresponding index and subindex of a servo parameter:
Click “Parameter Edit” on the pull-down menu and find out the corresponding index and subindex of
the parameter as illustrated in the following figure. As figure 1 shows, the servo parameter P6-10
corresponds to subindex 260a (hex) and subindex 0, which are both hexadecimal values. You can
directly enter 9738 or 260AH in the CANopen Builder software. And the software will automatically
convert 260A into 9738 if you enter 260AH as figure 2 displays.
