Delta Electronics DVP10MC11T [230/375] G91 relative mode

4. Motion Control Instructions

4-186 DVP-MC operating manual

4.8.3.2 G91: Relative Mode

 Function: After G91 is executed, the terminal position of each axis in G code is counted in incremental

method beginning from the current position and G90 can be used to switch into the absolute mode.

 Format: N_G91

 Parameter Explanation:

N_: The row number of G code in NC program

 Example:

The initial positions of axis X and Y are both 3000 units and the axis parameters are both default values.

The G codes to be executed are as follows:

N0 G91

N1 G0 X6000 Y6000

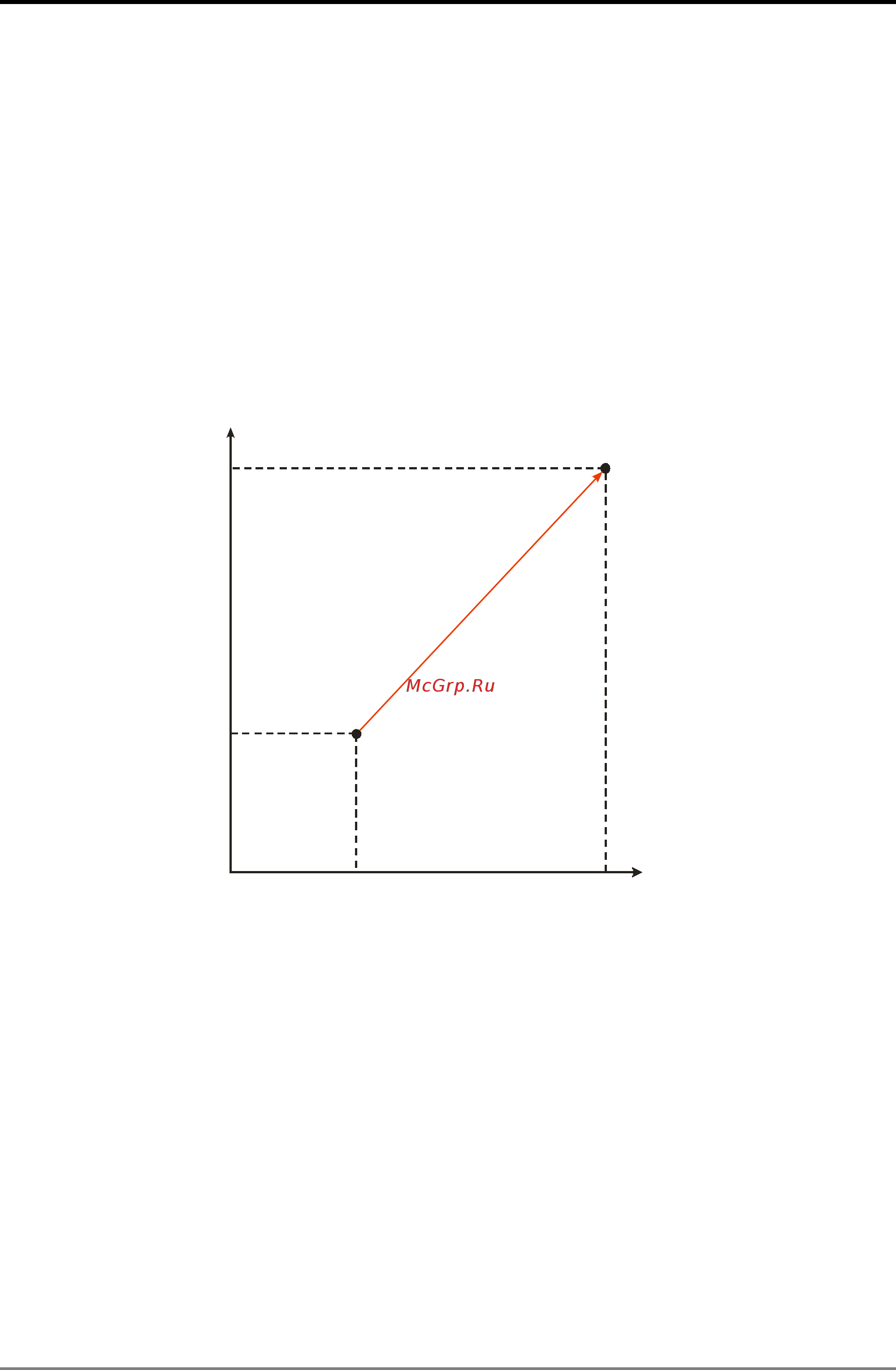

After G codes are executed, the Y/X curve for the whole movement process is shown below:

Position

3000 9000

3000

9000
