Delta Electronics DVP10MC11T [249/375] Motion control instructions

4. Motion Control Instructions

DVP-MC operating manual 4-205

1000

2000

3000

2000

4000

I=-2000

J=-1000

(0,0)

-3000

1000



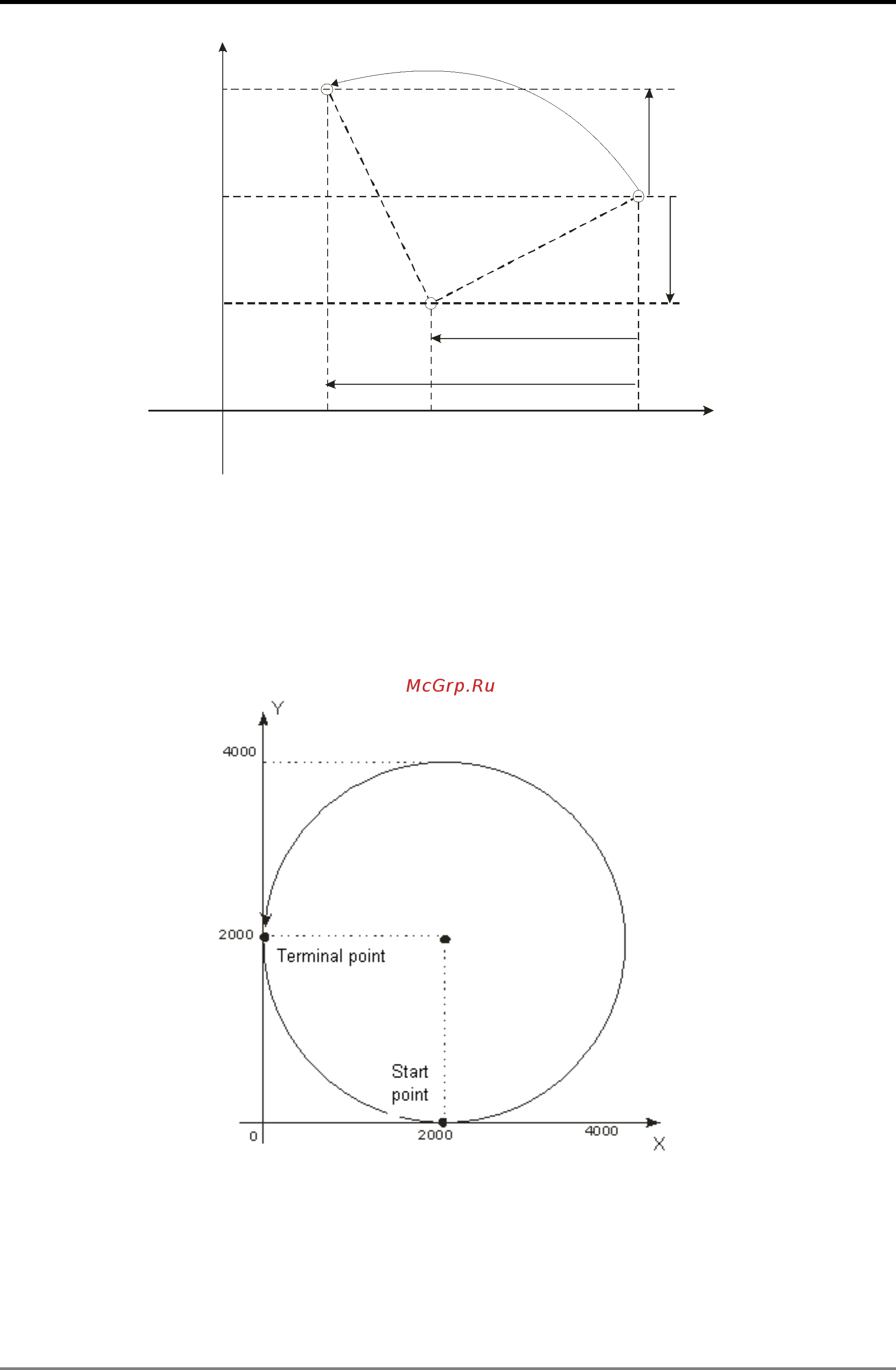

Example 3

Specify the center of a circle and circular interpolation with T in relative mode

Current position (2000, 0), axis parameters: default values, the G codes to be executed:

N0 G91

N1 G17

N2 G3 X-2000 Y2000 I0 J2000 T3

After G codes are executed, the motion path is the arc on XY plane and the arc length is (3+3/4）times

the circumference of a circle.



Example 4

The helical interpolation with the center of a circle specified by XY plane

Current position (0, 0), axis parameters: default values, the G codes to be executed:

Start

point

Terminal

point

Center of a

circle
