3. System Installation

DVP-MC operating manual 3-7

3.2.3. Connecting the Extension Module to the Left Side of DVP10MC11T as

DeviceNet Master

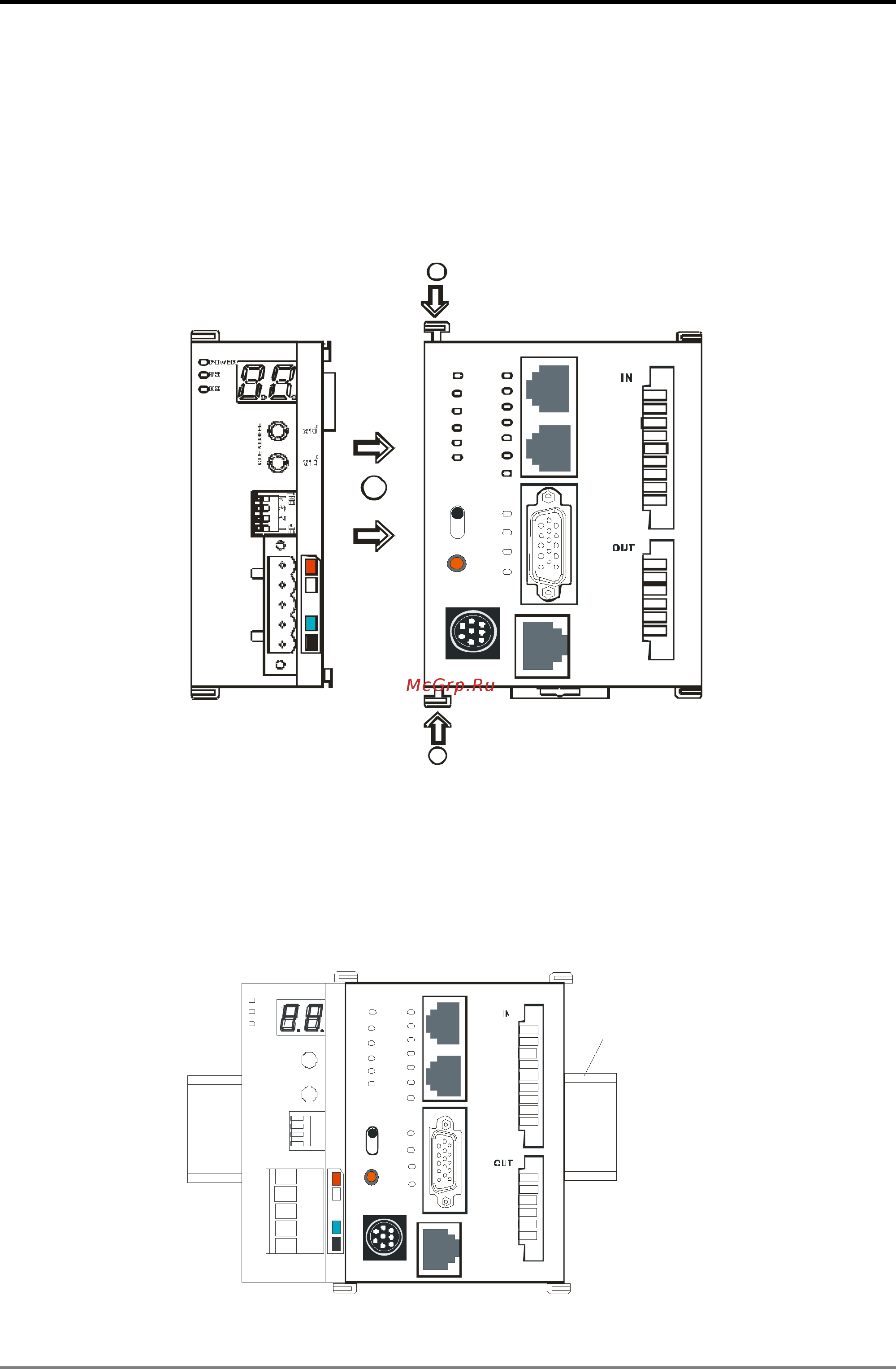

1. Connecting DVPDNET-SL to DVP10MC11T

 Open the extension module clips on the top left and bottom left of DVP10MC11T and

install DVPDNET-SL along four mounting holes in the four angles of DVP10MC11T as figure 3.2.8.

 Press the clips respectively on the top left and bottom left of DVP10MC11T to fix the module tightly

and ensure that their contact is normal.

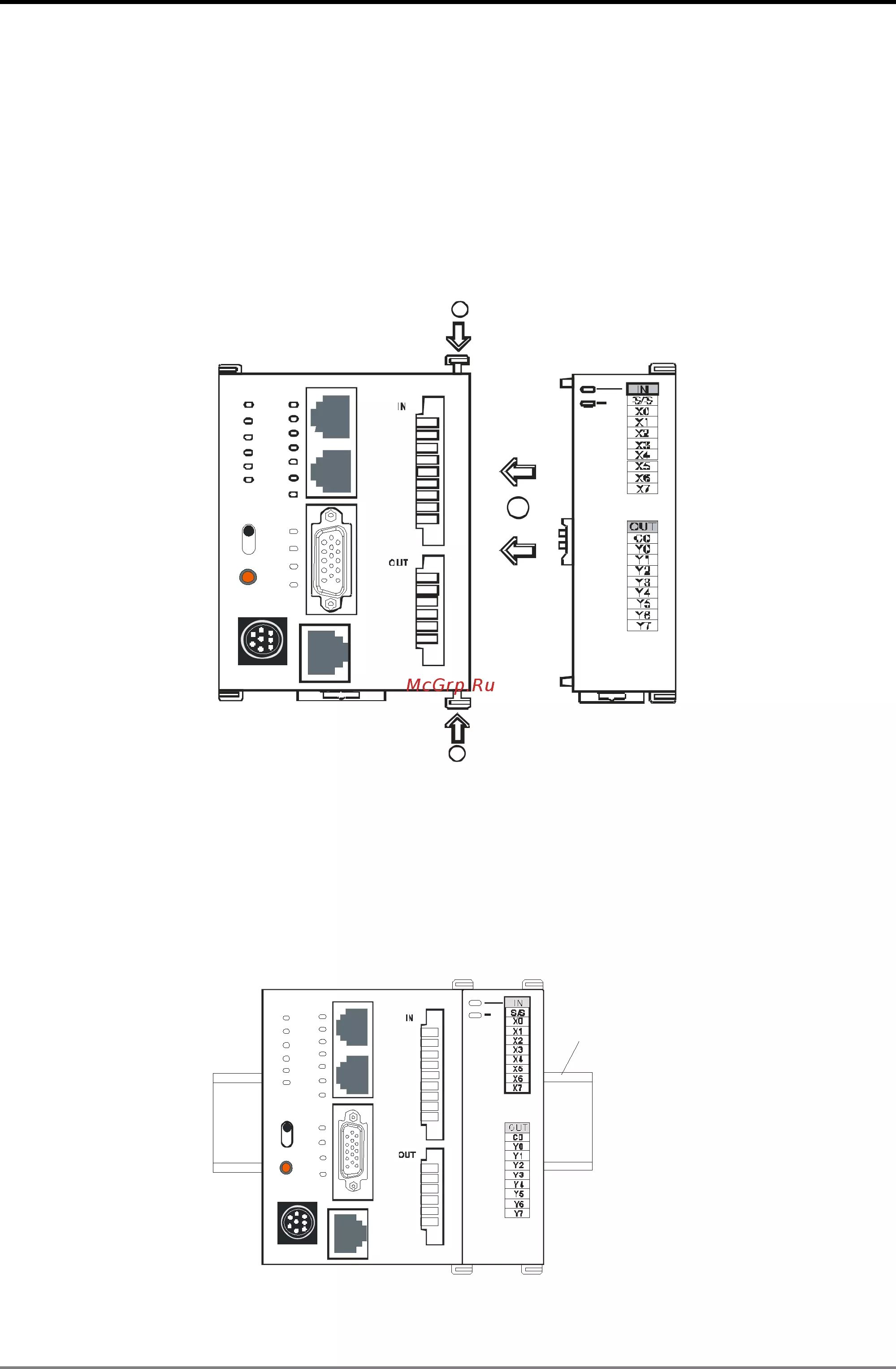

DVP10MC

S/S

DVPDNET

Figure 3.2.8

2. Installing DVP10MC11T and DVPDNET-SL into the DIN rail

 Use standard 35mm DIN rail;

 Open DIN rail clips of DVP10MC11T and DVPDNET-SL and then insert the two modules in DIN

rail.

 Press the DIN rail clips into DVP10MC11T and DVPDNET-SL to fix the two modules in DIN rail as

figure below.

DVPDNET

DVP10MC

S/S

35mm DIN Rail

Figure 3.2.9
