3. System Installation

DVP-MC operating manual 3-5

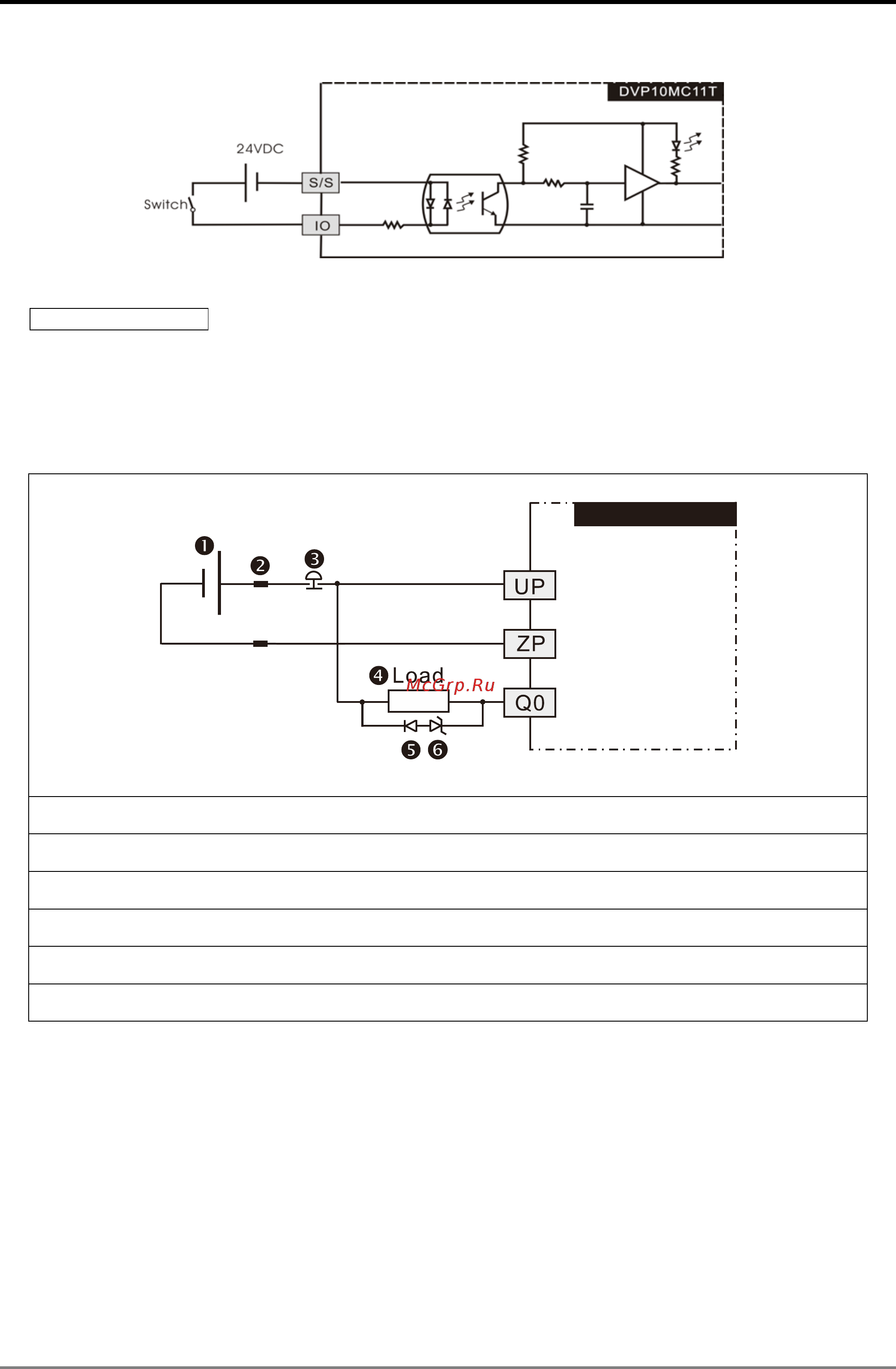

The relevant circuit for wiring is shown as figure 3.2.5

Figure 3.2.5

Wiring of output circuit

The circuit plate for the transistor output in DVP10MC11T includes the diodes with the protection function of

counter potential. It is sufficient for application of the inductive load at low power and little higher frequency of

On/Off change. In the case of high power or high On/Off change frequency, please additionally connect the

suppression circuit according to the following figure to decrease the interference and prevent over-voltage or

over-heat from damaging the transistor output circuit.

DVP10MC11T

Figure 3.2.6

 24V direct current power

 Fuse protector for power circuit protection;

 Emergent stop button;

 Loading for switch, inductance and etc.

 Diode or equivalent component for suppression ( is not used but  when in smaller power).

 9V Zener diode, 5W ( and  are both used when in bigger power and frequent On/Off).
