Delta Electronics DVP10MC11T [270/375] Program example

4. Motion Control Instructions

4-226 DVP-MC operating manual

4.8.5.8 Program Example



Program example 1: DNC_MOV (G0) in absolute mode

The initial positions of axis X and Y are both 10,000 units and the axis parameters are all default.



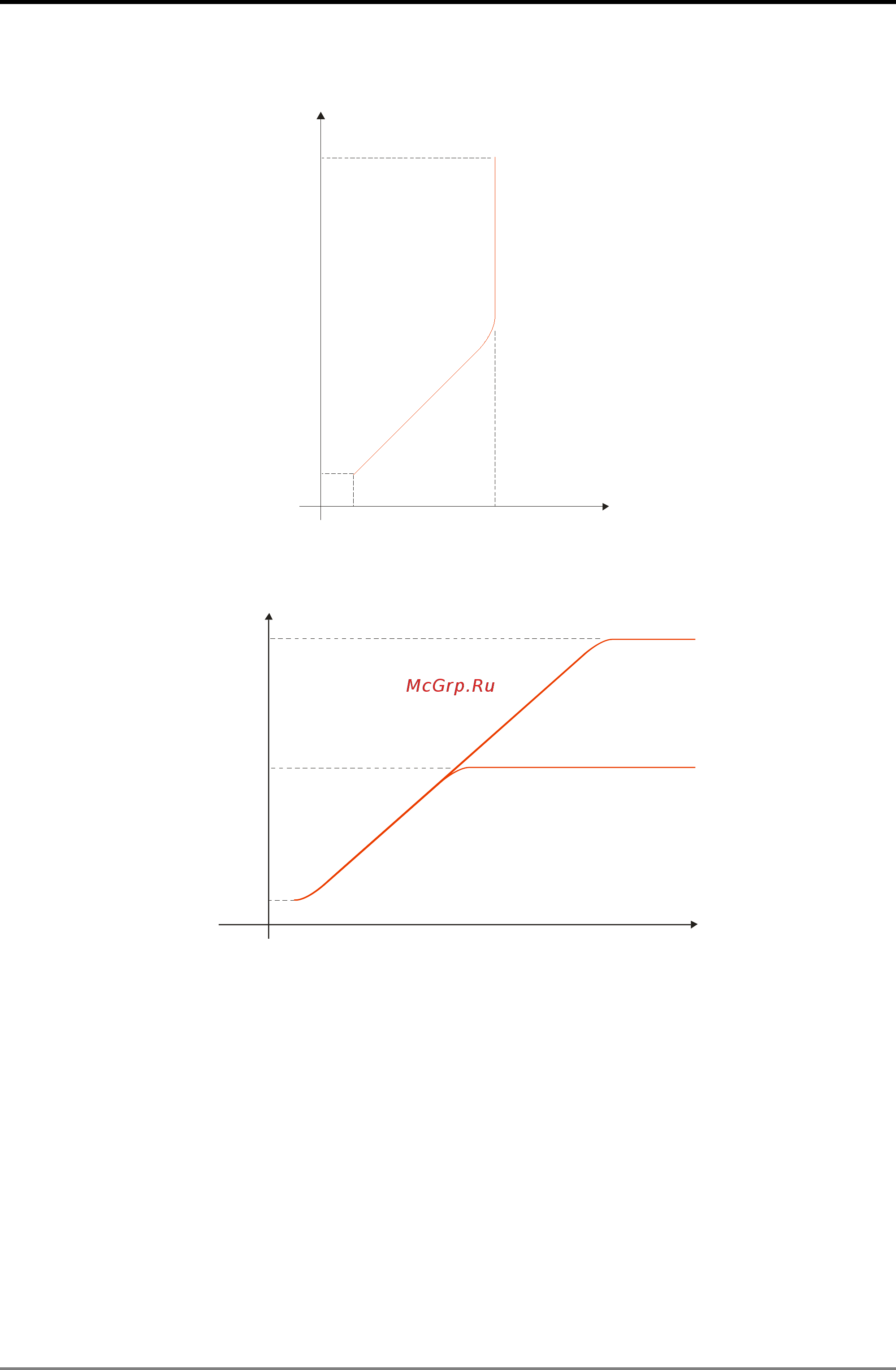

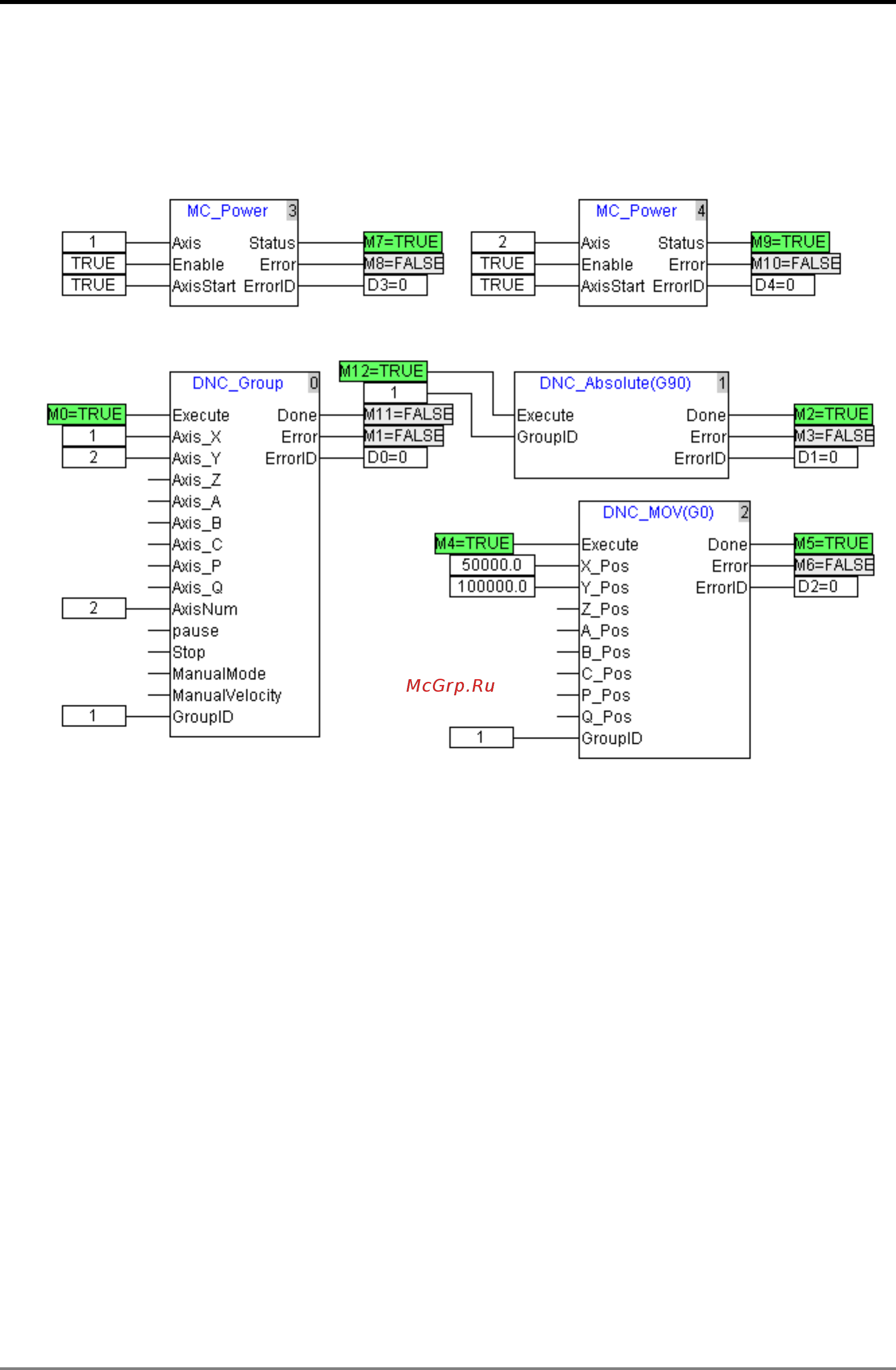

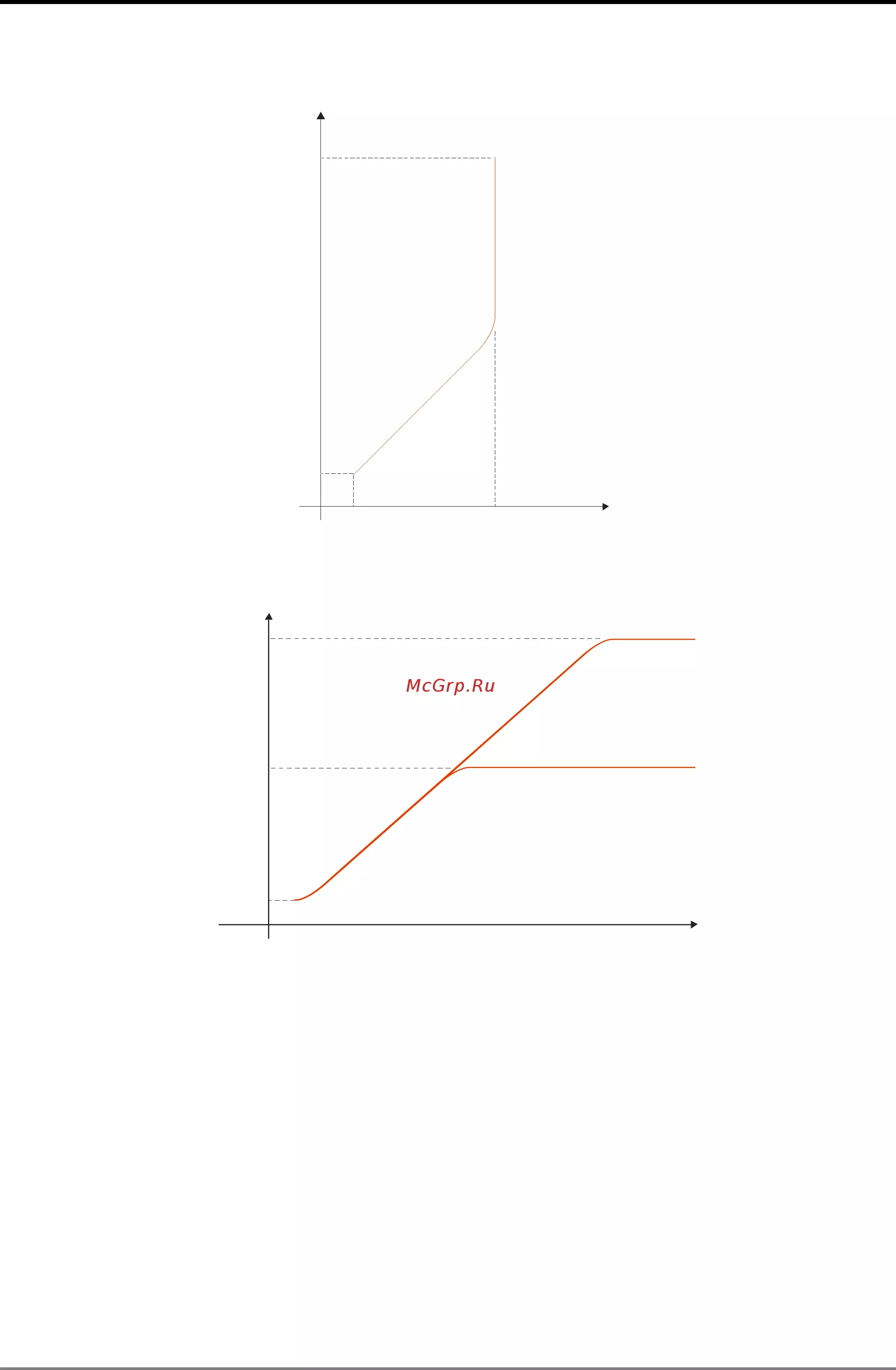

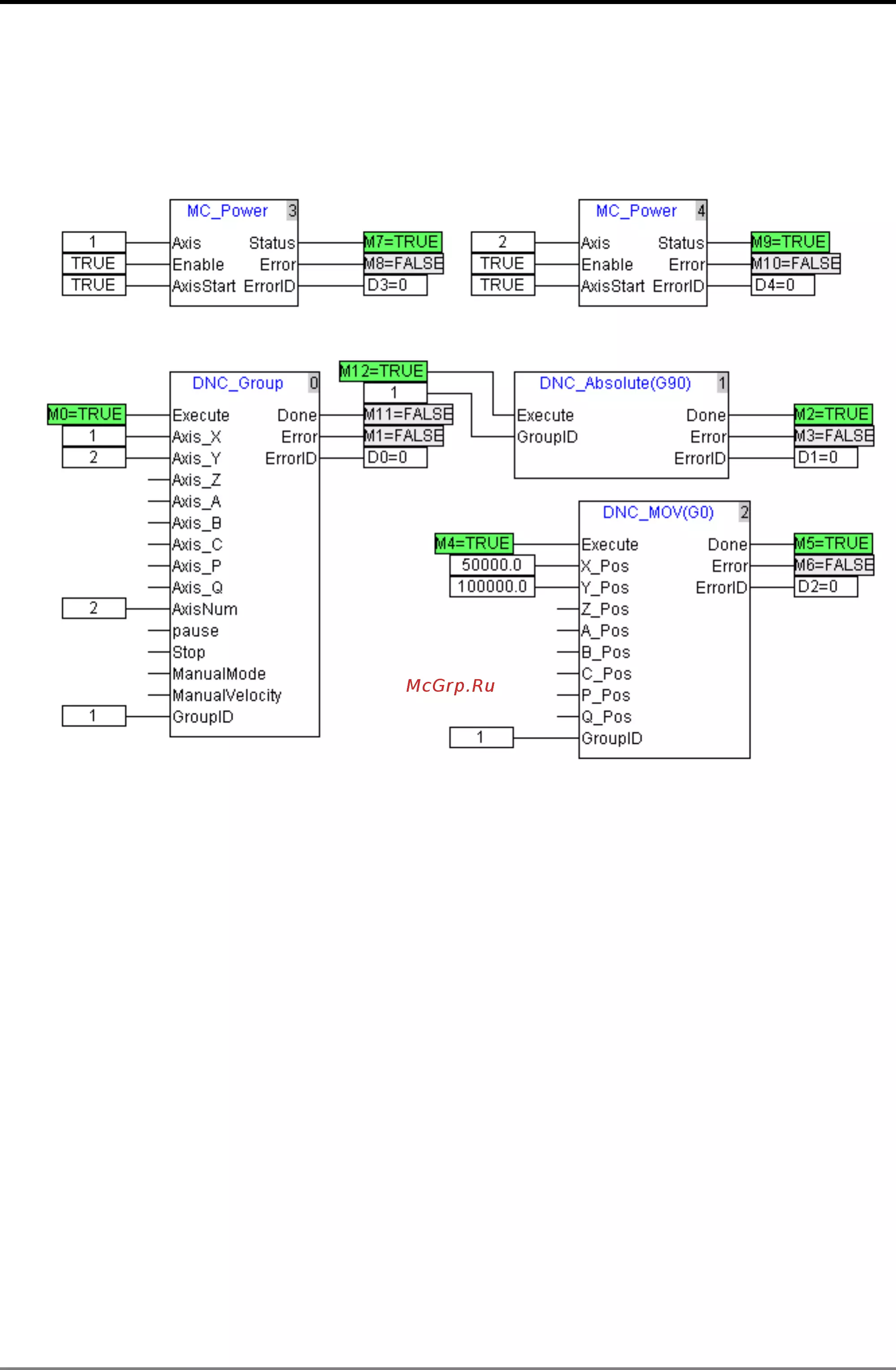

The program to be executed:



Program explanation:



1. After the connection between DVP10MC11T and servo axis is made successfully, M7 and

M9 are on. After M7 is on, the servo axis of number 1 Servo On; after M9 is on, the servo

axis of number 2 Servo On.



2. After M0 is on, DNC_Group instruction starts to construct the coordinate system.



After M12 is on, each servo axis is switched to the absolute positioning mode. When M2 is

on, each axis enters the absolute mode.



4. After M4 is on, DNC_MOV (G0) starts to be executed. When M5 is on, the execution of

DNC_MOV (G0) is finished.
