DFL-1000 User Manual

104

•

Configuring a Windows XP client for PPTP

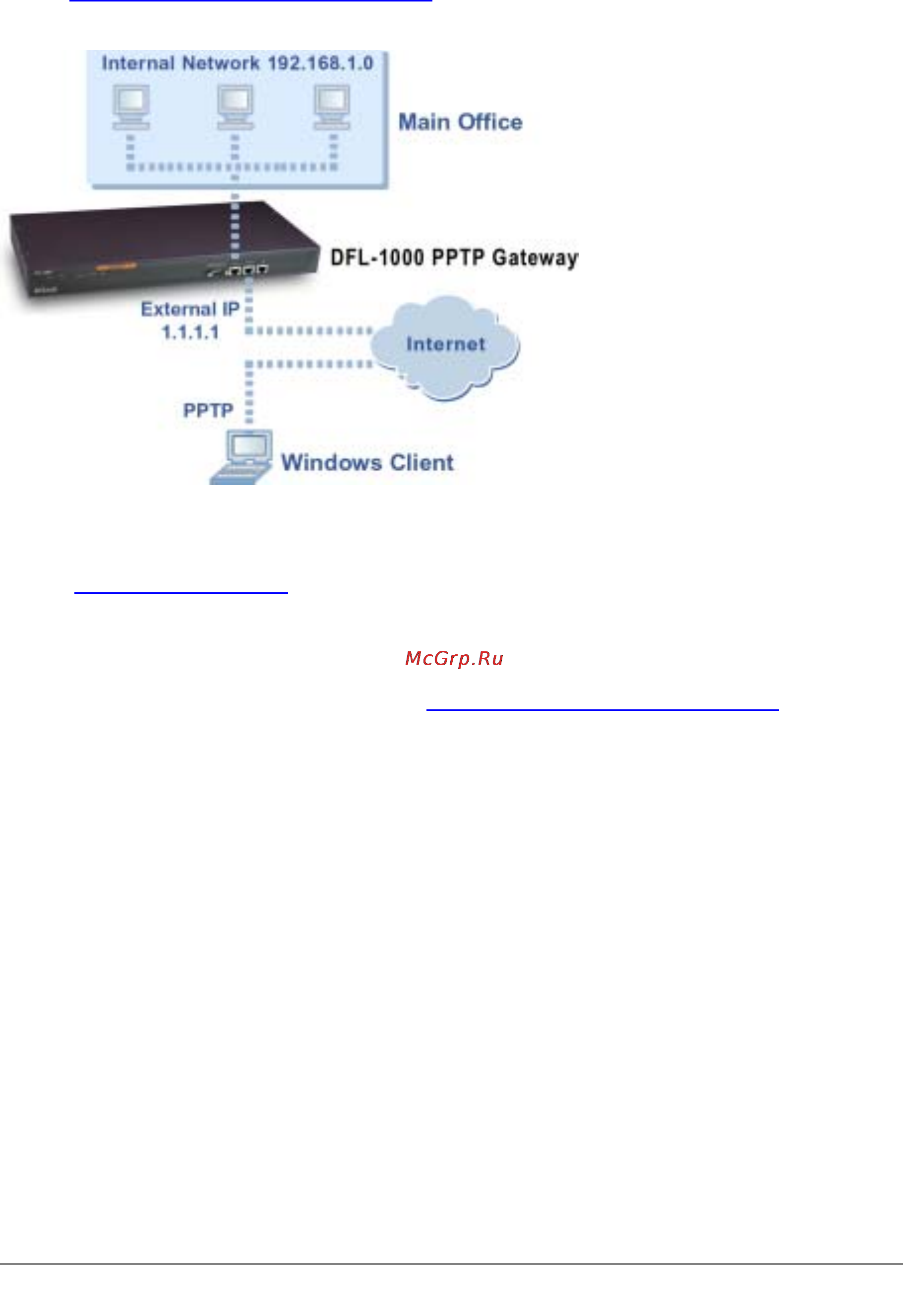

PPTP VPN between a Windows client and the DFL-1000 NPG

Configuring the DFL-1000 NPG as a PPTP gateway

Create a user group for the PPTP clients.

See Users and authentication

•

Go to VPN > PPTP > PPTP Range .

•

Select Enable PPTP.

• Enter the Starting IP and the Ending IP for the PPTP address range.

• Select the User Group that you added in step Create a user group for the PPTP clients.

• Select Apply to enable PPTP through the DFL-1000 NPG.
