DFL-1000 User Manual
2
0
•
Using the crossover cable or the ethernet hub and cables, connect the Internal interface of the DFL-
1000 NPG to the computer ethernet connection.
• Start Internet Explorer and browse to the address https://192.168.1.99.
The DFL-1000 login appears.
•
Type
admin
in the Name field and select Login.
The Register Now window appears. Use the information on this window to register your DFL-1000
NPG. Register your DFL-1000 NPG so that D-Link can contact you for firmware updates.

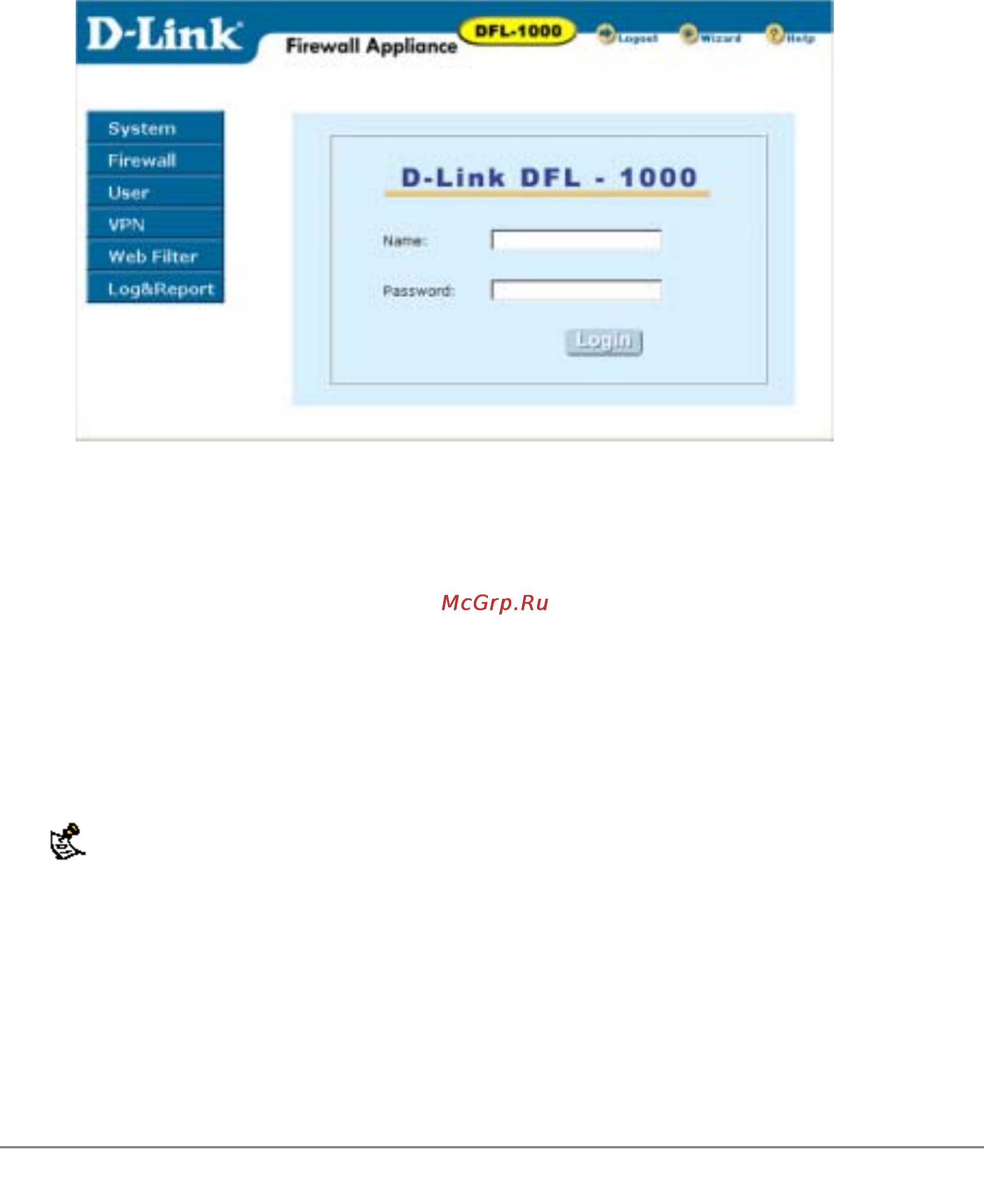

DFL-1000 login
Connecting to the command line interface (CLI)
As an alternative to the web-based manager, you can install and configure the DFL-1000 NPG using the
CLI. Configuration changes made with the CLI are effective immediately without the need to reset the
firewall or interrupt service.
To connect to the DFL-1000 CLI, you need:
•
a computer with an available communications port,
•
the null modem cable included in your DFL-1000 package,
•
terminal emulation software such as HyperTerminal for Windows.
The following procedure describes how to connect to the DFL-1000 CLI using Windows HyperTerminal
software. You can use any terminal emulation program.
•
Connect the null modem cable to the DFL-1000 Console connector and to the available
communications port on your computer.
• Make sure that the DFL-1000 NPG is powered on.
•
Start HyperTerminal, enter a name for the connection, and select OK.
•
Configure HyperTerminal to connect directly to the communications port on the computer to which
you have connected the null modem cable and select OK.
• Select the following port settings and select OK.
