D-Link DFL-1000 [82/168] Viewing vpn tunnel status

DFL-1000 User Manual

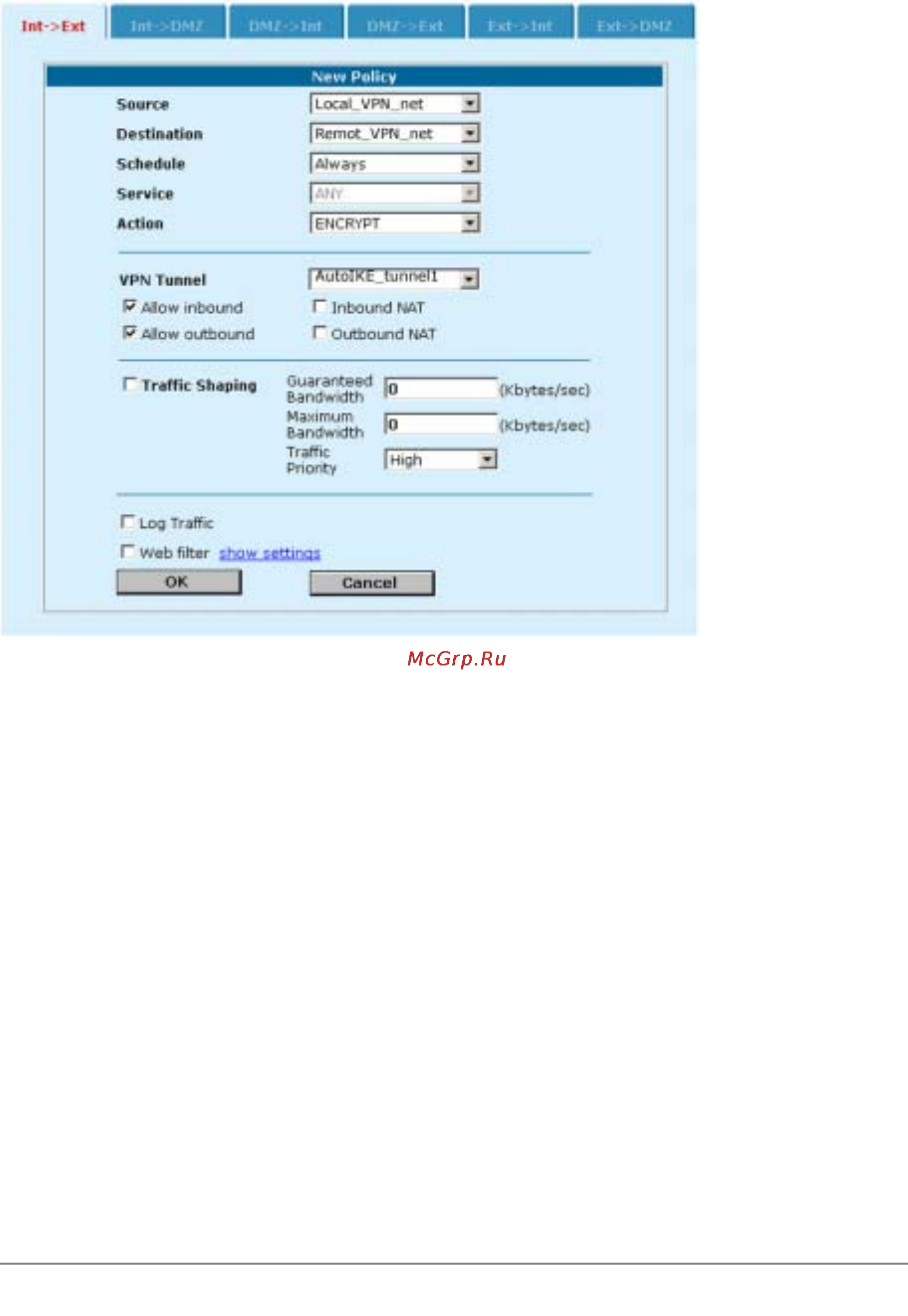

Adding an encrypt policy

Viewing VPN tunnel status

You can use the IPSec VPN tunnel list to view the status of all IPSec AutoIKE key VPN tunnels. For each

tunnel, the list shows the status of each tunnel as well as the tunnel time out.

To view VPN tunnel status:

•

Go to VPN > IPSEC > AutoIKE Key .

The Status column displays the status of each tunnel. If Status is Up, the tunnel is active. If Status is

Down, the tunnel is not active.

The Timeout column displays the time before the next key exchange. The time is calculated by

subtracting the time elapsed since the last key exchange from the keylife.
