DFL-1000 User Manual
14
7
Example multiple Internet connection configuration
For example, your main connection to the Internet could be a T1 or broadband connection to the external
interface. To make sure that problems with this Internet connection do not affect your access to the
Internet, you could add a second T1 or broadband connection, perhaps with a different ISP. You can
connect this second Internet connection to the DMZ interface. You can then configure routing so that
incoming and outgoing traffic is automatically routed to the WAN connection that is running. You can also
configure routing to balance the traffic between both connections if both are running.

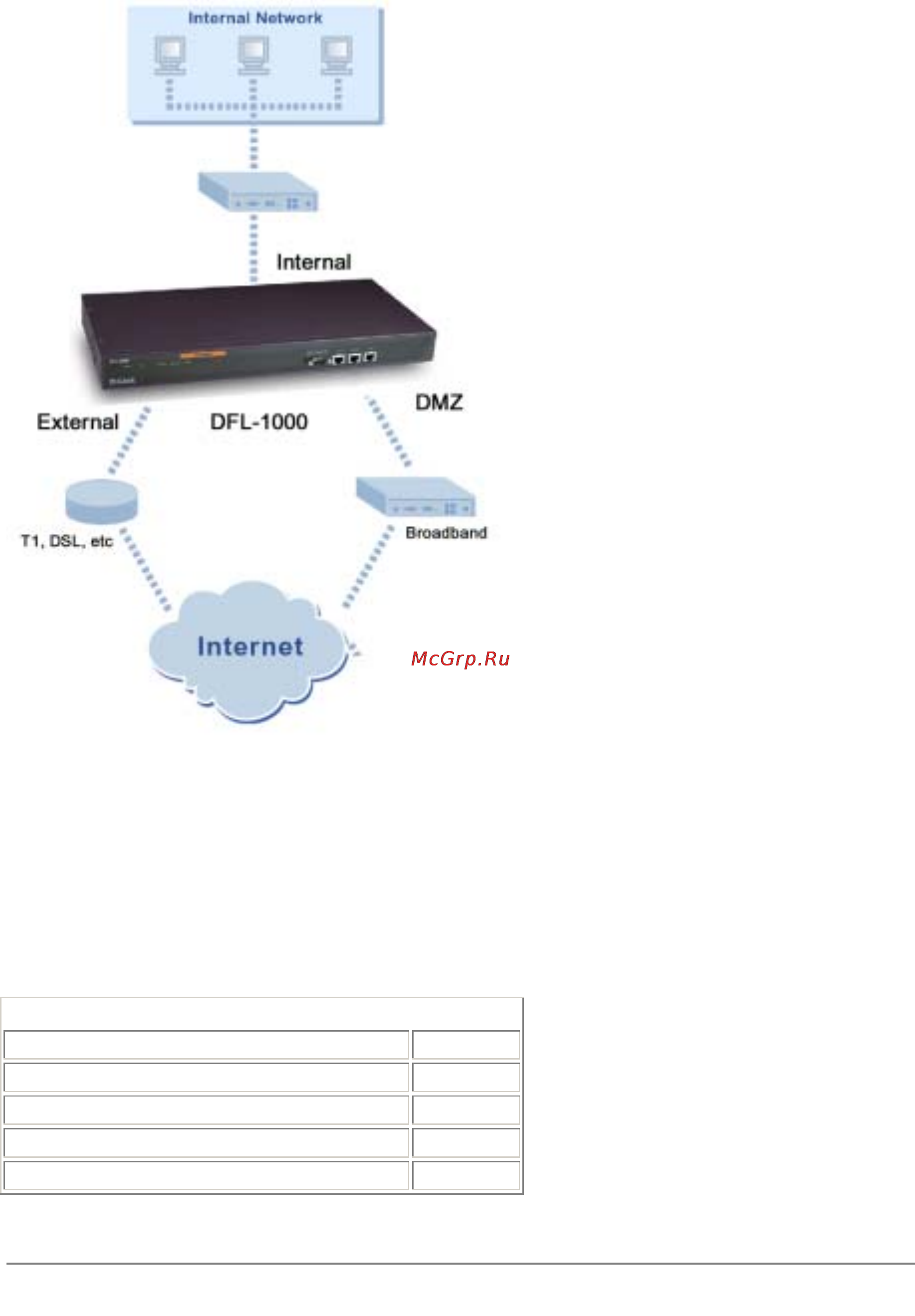

Example configuration
This example configuration consists of a T1 WAN connection to the external interface and a broadband
WAN connection to the DMZ interface. The WAN networks have the following IP addresses:
Example multiple Internet connection configuration
External interface
15.1.2.99
T1 gateway connected to external interface
15.1.2.1
DMZ interface
16.1.2.99
Broadband gateway connected to DMZ interface
16.1.2.1
Internal interface
192.168.1.99
