DFL-1000 User Manual
14
9
Domain
Optionally enter in the domain that the DHCP server assigns to the DHCP clients.
DNS IP
Enter the IP addresses of up to 3 DNS servers that the DHCP clients can use for looking up domain
names.
Default
Route
Enter the default route to be assigned to DHCP clients. The default route should be on the same
subnet as the Starting and Ending IP addresses.
Exclusion
Range
Optionally enter up to 4 exclusion ranges of IP addresses within the starting IP and ending IP
addresses that cannot be assigned to DHCP clients.
•
Select Apply.
•
Configure the IP network settings of the computers on your network to obtain an IP address
automatically using DHCP.

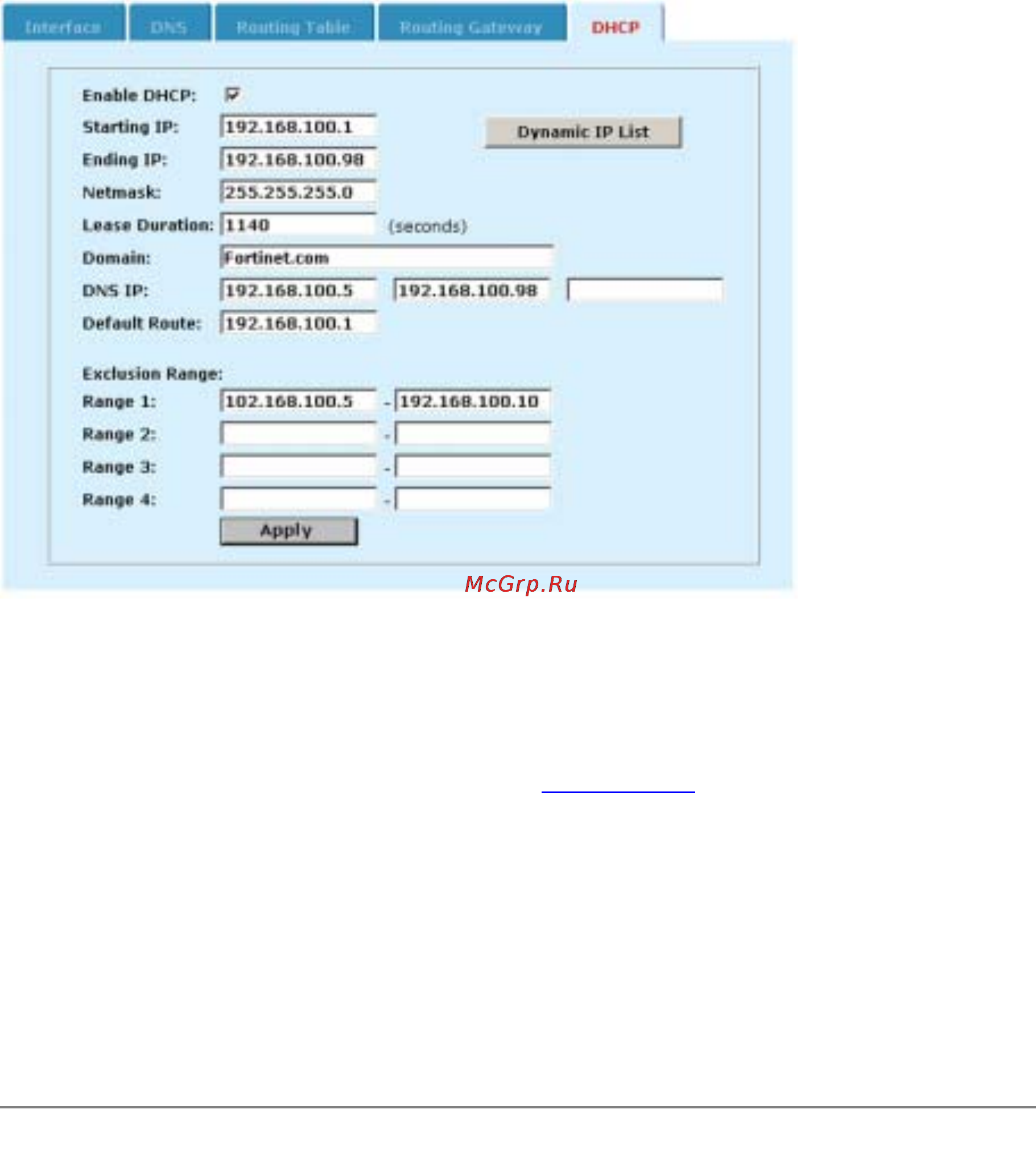

Example DHCP settings
Viewing the dynamic IP list
If you have configured your DFL-1000 NPG as a DHCP server, you can view a list of IP addresses that
the DHCP server has added, their corresponding MAC addresses, and the expiry time and date for these
addresses. The DFL-1000 NPG adds these addresses to the dynamic IP/MAC list and if IP/MAC binding
is enabled, the addresses in the dynamic IP/MAC list are added to the list of trusted IP/MAC address
pairs. For more information about IP/MAC binding, see IP/MAC binding
.
To view the dynamic IP list:
• Go to System > Network > DHCP .
• Select Dynamic IP List.
The dynamic IP list appears.
