Routing table
Enabling RIP server support
Enable routing information protocol (RIP) server support to configure the DFL-1000 NPG to act like a RIP
server. The RIP routing protocol maintains up-to-date dynamic routing tables between nearby routers.
When you enable RIP server support, the DFL-1000 NPG acts like a RIP server, broadcasting RIP
packets to other nearby routers to:
•
request network updates from nearby routers,
•
send its own routing tables to other routers,
•
announce that the RIP server is going online (RIP server turned on) and requesting updates,
•
announce that the RIP server is shutting down and will stop sharing routing information.
To enable RIP server support:
• Go to System > Network > Routing Table .
• Select Enable RIP Server.

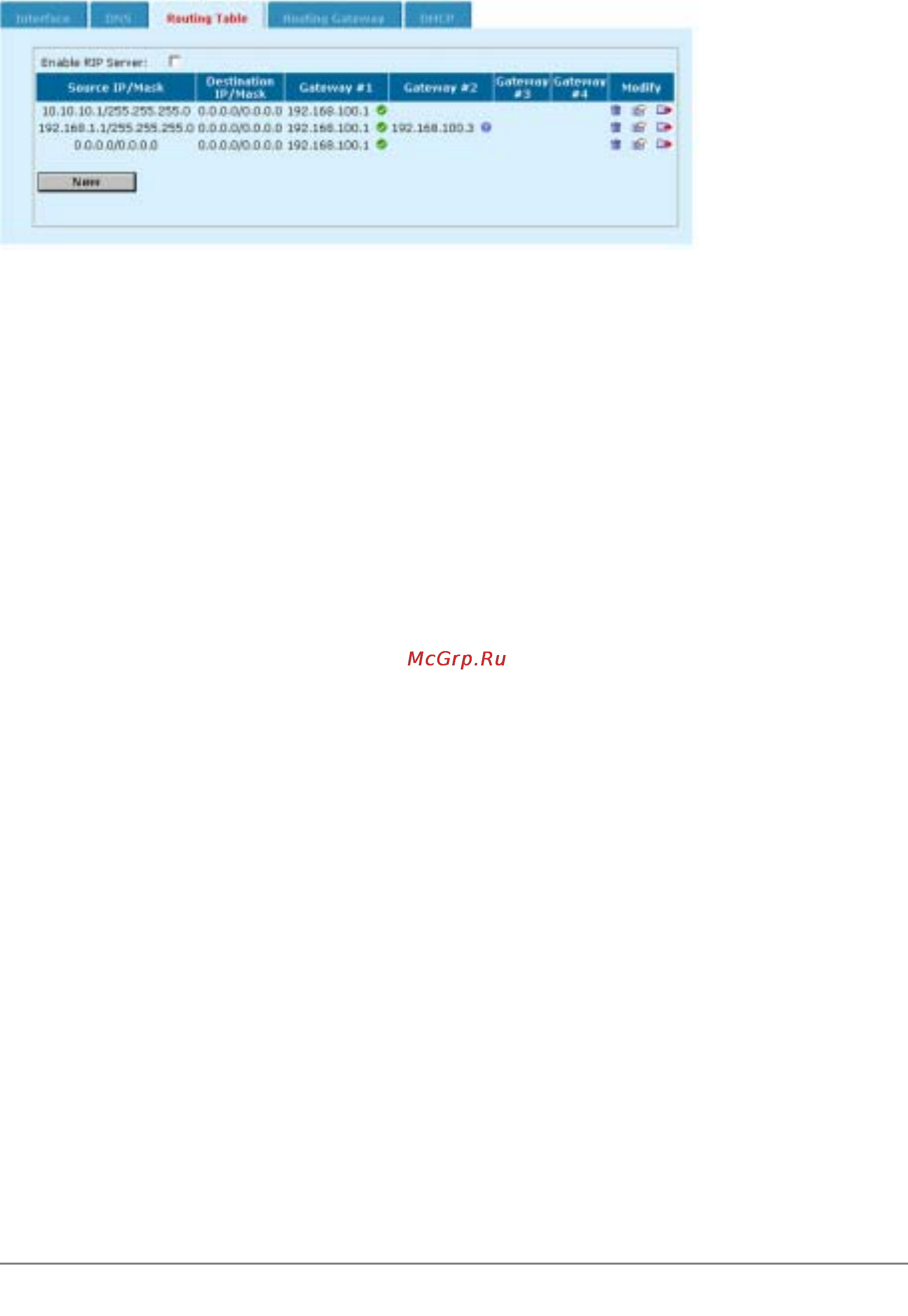

Adding routes (Transparent mode)
Use the following procedure to add routes when running the DFL-1000 NPG in Transparent mode.
• Go to System > Network > Routing .
• Select New to add a new route.
• Enter the Destination IP address and Netmask for the route.
• Enter the Gateway IP address for the route.
• Select OK to save the new route.
• Repeat these steps to add more routes as required.
Configuring the DFL-1000 NPG for multiple Internet connections
You can use routing to configure the DFL-1000 NPG with two Internet or WAN connections. Using this
multiple WAN configuration, if one of these WAN connections fails, the DFL-1000 NPG routes all packets
to the other WAN connection.
