DFL-1000 User Manual
14
0
Configuring the external interface with a static IP address
Configuring the external interface for DHCP
Use the following procedure to configure the external interface to use DHCP. This configuration is
required if your ISP uses DHCP to assign the IP address of the external interface.
To configure the external interface to use DHCP:

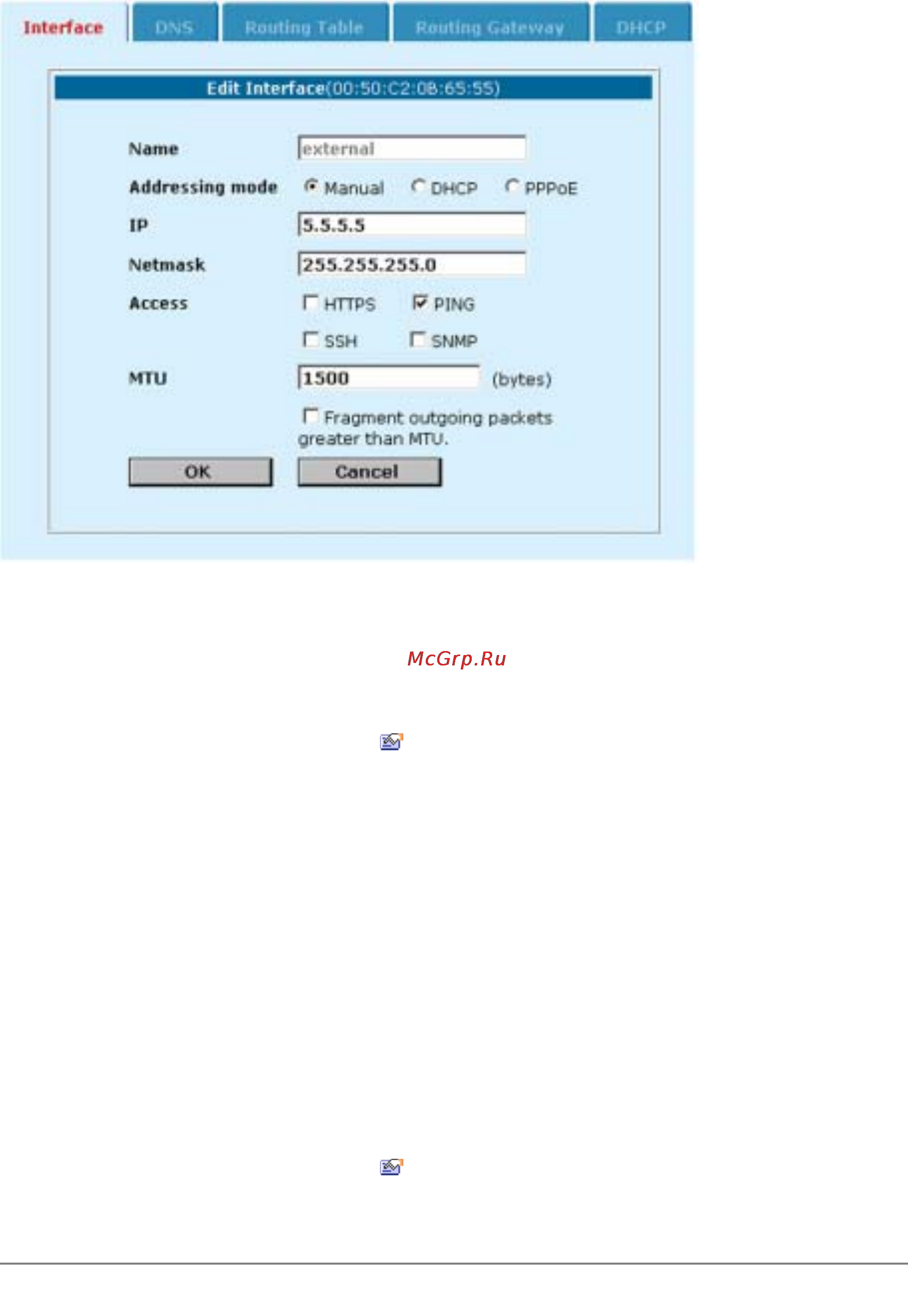

• Go to System > Network > Interface .
• For the external interface, select Modify
.
• Set Addressing mode to DHCP and select OK to change to DHCP mode.
Both the IP address and Netmask change to 0.0.0.0.
•
Select Enable Connect to DHCP server if you want the DFL-1000 NPG to automatically connect to a
DHCP server when it starts up.
• Select OK.
The DFL-1000 NPG attempts to contact a DHCP server from the external interface to set the external
IP address, netmask, and default gateway IP address. When the DFL-1000 NPG gets this information
from the DHCP server, the new addresses and netmask are displayed in the IP address and Netmask
fields.
Configuring the external interface for PPPoE
Use the following procedure to configure the external interface to use PPPoE. This configuration is
required if your ISP uses PPPoE to assign the IP address of the external interface.
To configure the external interface to use PPPoE:
•
Go to System > Network > Interface .
•
For the external interface, select Modify
.
•
Set Addressing mode to PPPoE and select OK to change to PPPoE mode.
