DFL-1000 User Manual
44
•
To add services to the service group, select a service from the Available Services list and select the
right arrow to copy it to the Members list.
• To remove services from the service group, select a service from the Members list and select the left
arrow to remove it from the group.
• Select OK to add the service group.

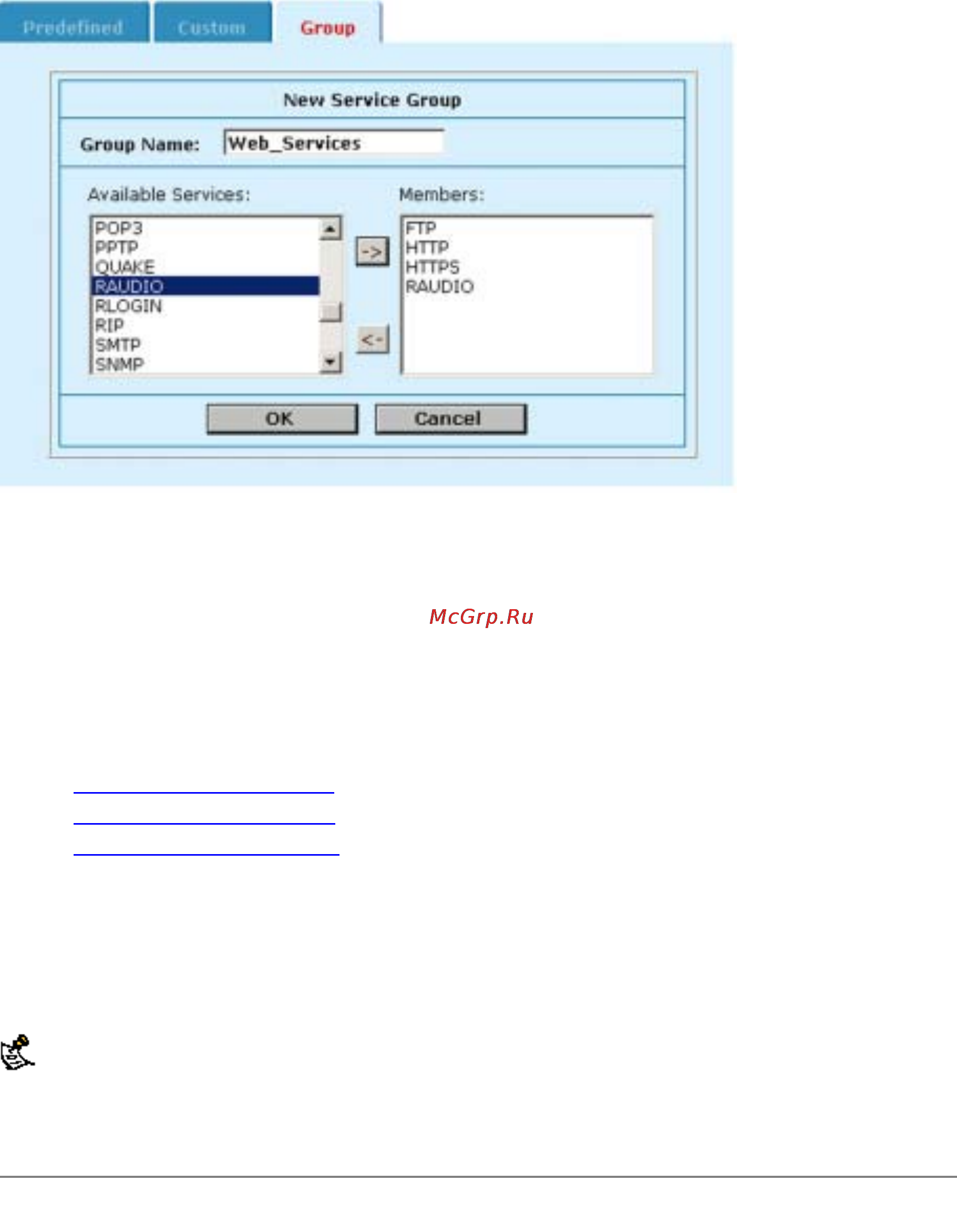

Adding a service group
Schedules
Use scheduling to control when policies are active or inactive. You can create one-time schedules and
recurring schedules. You can use one-time schedules to create policies that are effective once for the
period of time specified in the schedule. Recurring schedules repeat weekly. You can use recurring
schedules to create policies that are effective only at specified times of the day or on specified days of the
week.
This section describes:
•
Creating one-time schedules
•
Creating recurring schedules
•
Adding a schedule to a policy
Creating one-time schedules
You can create a one-time schedule that activates or deactivates a policy for a specified period of time.
For example, your firewall might be configured with the default Internal to External policy that allows
access to all services on the Internet at all times. You can add a one-time schedule to block access to the
Internet during a holiday period.
One-time schedules use the 24-hour clock.
• Go to Firewall > Schedule > One-time .
